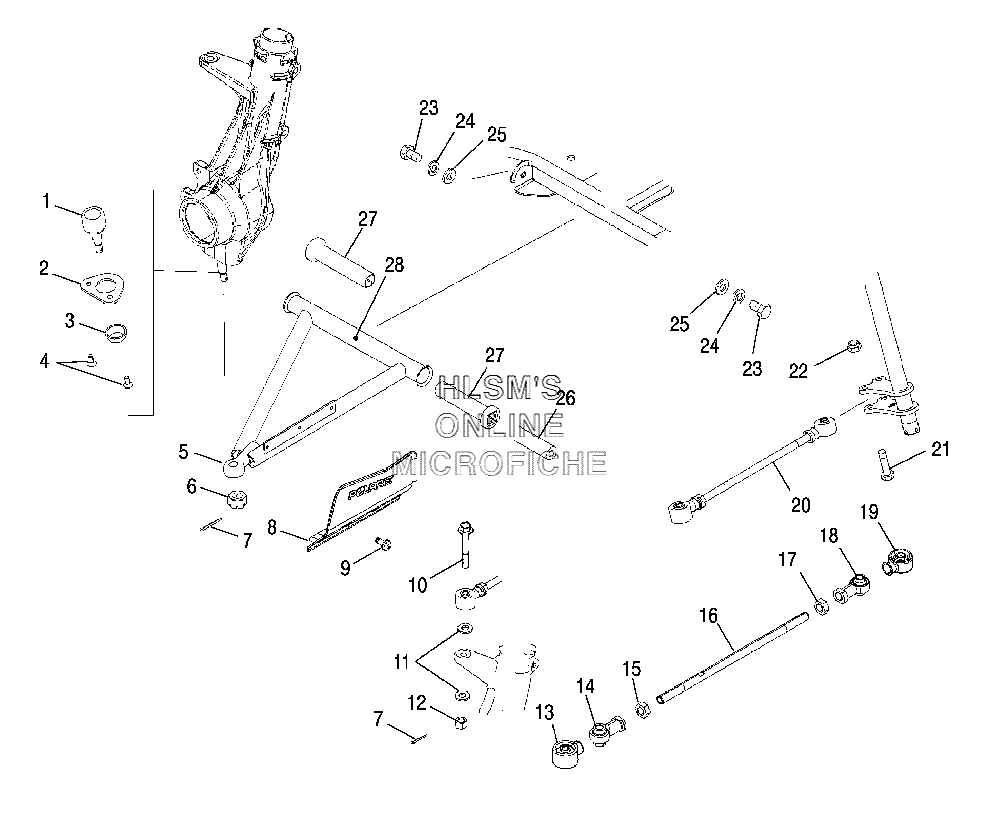

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris Sportsman 700 EFI (A06MH68AT) (NBU SUB CAMO) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7080927 BALL, JOINT (52 DEG)
    BALL, JOINT (52 DEG)
  • 2
    5211121 BRACKET, BALL JOINT
    BRACKET, BALL JOINT
  • 3
    5410548 BOOT, RUBBER
    BOOT, RUBBER
  • 4
    7512284 BOLT, SOCKET
    BOLT, SOCKET
  • 5
    2202865 A, FRAME KIT (LEFT) (INCL. 7, 23, 24, 26, 27)
    A, FRAME KIT (LEFT) (INCL. 7, 23, 24, 26, 27)
  • 5
    2202866 A, FRAME KIT (RIGHT) (INCL. 7, 23, 24, 26, 27)
    A, FRAME KIT (RIGHT) (INCL. 7, 23, 24, 26, 27)
  • 6
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 7
    7661203 PIN, COTTER
    PIN, COTTER
  • 8
    5435028-070 SHIELD, CV (FRONT/LEFT/BLACK)
    SHIELD, CV (FRONT/LEFT/BLACK)
  • 8
    5435029-070 SHIELD, CV (FRONT/RIGHT/BLACK)
    SHIELD, CV (FRONT/RIGHT/BLACK)
  • 9
    7512084 SCREW
    SCREW
  • 10
    7517909 BOLT
    BOLT
  • 11
    7556099 WASHER
    WASHER
  • 12
    7547177 NUT
    NUT
  • 13
    5411920 BOOT, SEAL, ROD END, 10MM (IF BUILT BEFORE 10/01/05)
    BOOT, SEAL, ROD END, 10MM (IF BUILT BEFORE 10/01/05)
  • 13
    5412929 BOOT, SEAL, ROD END, 10MM (IF BUILT AFTER 10/01/05)
    BOOT, SEAL, ROD END, 10MM (IF BUILT AFTER 10/01/05)
  • 14
    7061054 ROD, END (10MM) (LEFT) (IF BUILT BEFORE 10/01/05)
    ROD, END (10MM) (LEFT) (IF BUILT BEFORE 10/01/05)
  • 14
    7061138 ROD, END (10MM) (LEFT) (IF BUILT AFTER 10/01/05)
    ROD, END (10MM) (LEFT) (IF BUILT AFTER 10/01/05)
  • 15
    7547028 NUT, JAM (LEFT)
    NUT, JAM (LEFT)
  • 16
    5134242 ROD, TIE (1/2, 20X11.45)
    ROD, TIE (1/2, 20X11.45)
  • 17
    7542711 NUT, JAM
    NUT, JAM
  • 18
    7061034 ROD, END, 3/8 (RIGHT) (44DEG) (IF BUILT BEFORE 10/01/05)
    ROD, END, 3/8 (RIGHT) (44DEG) (IF BUILT BEFORE 10/01/05)
  • 18
    7061139 ROD, END, 3/8 (RIGHT) (44DEG) (IF BUILT AFTER 10/01/05)
    ROD, END, 3/8 (RIGHT) (44DEG) (IF BUILT AFTER 10/01/05)
  • 19
    5411291 SEAL, BOOT, ROD END (IF BUILT BEFORE 10/01/05)
    SEAL, BOOT, ROD END (IF BUILT BEFORE 10/01/05)
  • 19
    5412928 BOOT, SEAL, ROD END (IF BUILT AFTER 10/01/05)
    BOOT, SEAL, ROD END (IF BUILT AFTER 10/01/05)
  • 20
    1821498 TIE ROD ASSY. (1/2, 20X14.16) (INCL. 14, 19) (IF BUILT BEFORE 10/01/05)
    TIE ROD ASSY. (1/2, 20X14.16) (INCL. 14, 19) (IF BUILT BEFORE 10/01/05)
  • 20
    1822851 TIE ROD ASSY. (1/2, 20X14.16) (INCL. 14, 19) (IF BUILT AFTER 10/01/05)
    TIE ROD ASSY. (1/2, 20X14.16) (INCL. 14, 19) (IF BUILT AFTER 10/01/05)
  • 21
    7515415 SCREW
    SCREW
  • 22
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 23
    7512492 SCREW
    SCREW
  • 24
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 25
    7555832 WASHER
    WASHER
  • 26
    5133806 SHAFT, A, ARM
    SHAFT, A, ARM
  • 27
    5434551 BUSHING, A, ARM, LONG (BLACK)
    BUSHING, A, ARM, LONG (BLACK)
  • 28
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
