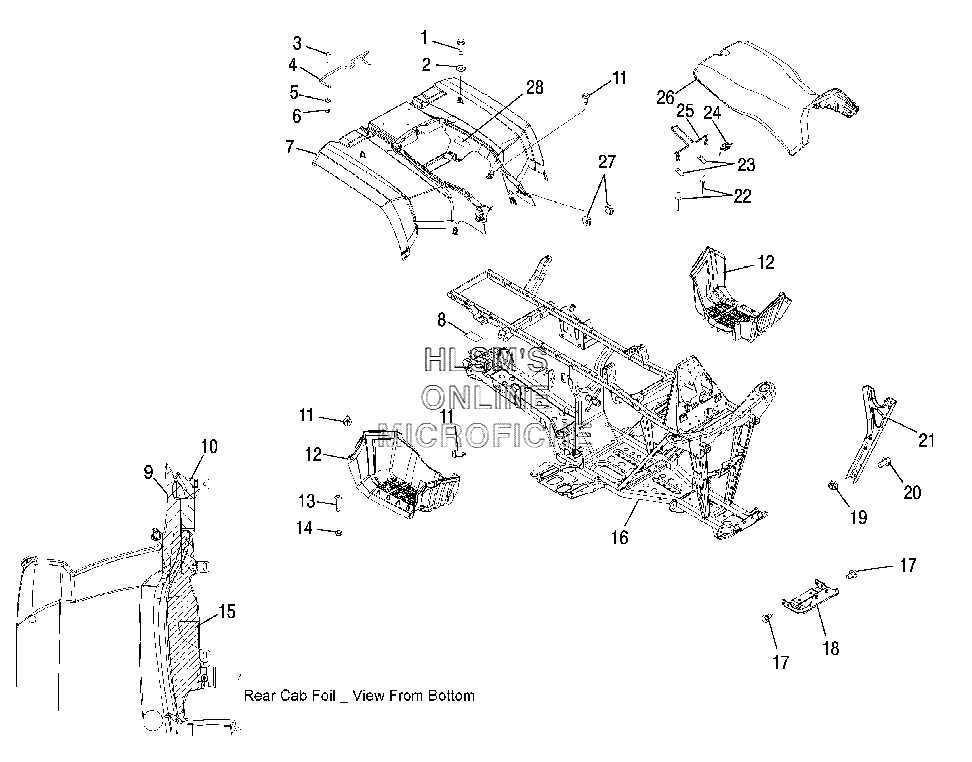

FENDER - REAR W/ SEAT для Polaris Sportsman 700 EFI (A06MH68AT) (NBU SUB CAMO) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7512095 SCREW
    SCREW
  • 2
    7555798 WASHER
    WASHER
  • 3
    7511930 SCREW
    SCREW
  • 4
    5246076 RETAINER, SEAT LATCH
    RETAINER, SEAT LATCH
  • 5
    7555792 WASHER
    WASHER
  • 6
    7541925 NUT
    NUT
  • 7
    5435664-455 CAB, REAR (NBU SUB CAMO)
    CAB, REAR (NBU SUB CAMO)
  • 8
    7170509 DECAL, HITCH
    DECAL, HITCH
  • 9
    5812703 FOIL, FRONT (TOP)
    FOIL, FRONT (TOP)
  • 10
    5812702 FOIL, FRONT (BOTTOM)
    FOIL, FRONT (BOTTOM)
  • 11
    7661855 RIVET, TUFLOK
    RIVET, TUFLOK
  • 12
    5435354-070 FOOTWELL (LEFT/BLACK)
    FOOTWELL (LEFT/BLACK)
  • 12
    5435355-070 FOOTWELL (RIGHT/BLACK)
    FOOTWELL (RIGHT/BLACK)
  • 13
    7517230 SCREW
    SCREW
  • 14
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 15
    5812701 FOIL
    FOIL
  • 16
    1014951-067 MAIN FRAME (BLACK)
    MAIN FRAME (BLACK)
  • 17
    7515399 SCREW
    SCREW
  • 18
    5245767-067 BUMPER, BRACKET (LOWER/BLACK)
    BUMPER, BRACKET (LOWER/BLACK)
  • 19
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 20
    7512283 SCREW, SEMS
    SCREW, SEMS
  • 21
    5244751-067 BRACE, SUPPERORT, FRAME (FRONT/LEFT/BLACK)
    BRACE, SUPPERORT, FRAME (FRONT/LEFT/BLACK)
  • 22
    7621403 BLIND RIVET
    BLIND RIVET
  • 23
    5211033 BRACKET, LEVER RETAINER
    BRACKET, LEVER RETAINER
  • 24
    7041370 SPRING, LATCH
    SPRING, LATCH
  • 25
    1040387 LATCH, SEAT
    LATCH, SEAT
  • 26
    2683661-070 SEAT ASSY. (BLACK)
    SEAT ASSY. (BLACK)
  • 26
    2683434-070 COVERING, SEAT (BLACK)
    COVERING, SEAT (BLACK)
  • 27
    5412623 GROMMET, RUBBER MOUNT
    GROMMET, RUBBER MOUNT
  • 28
    7172921 DECAL, FILTER CLEANING
    DECAL, FILTER CLEANING
