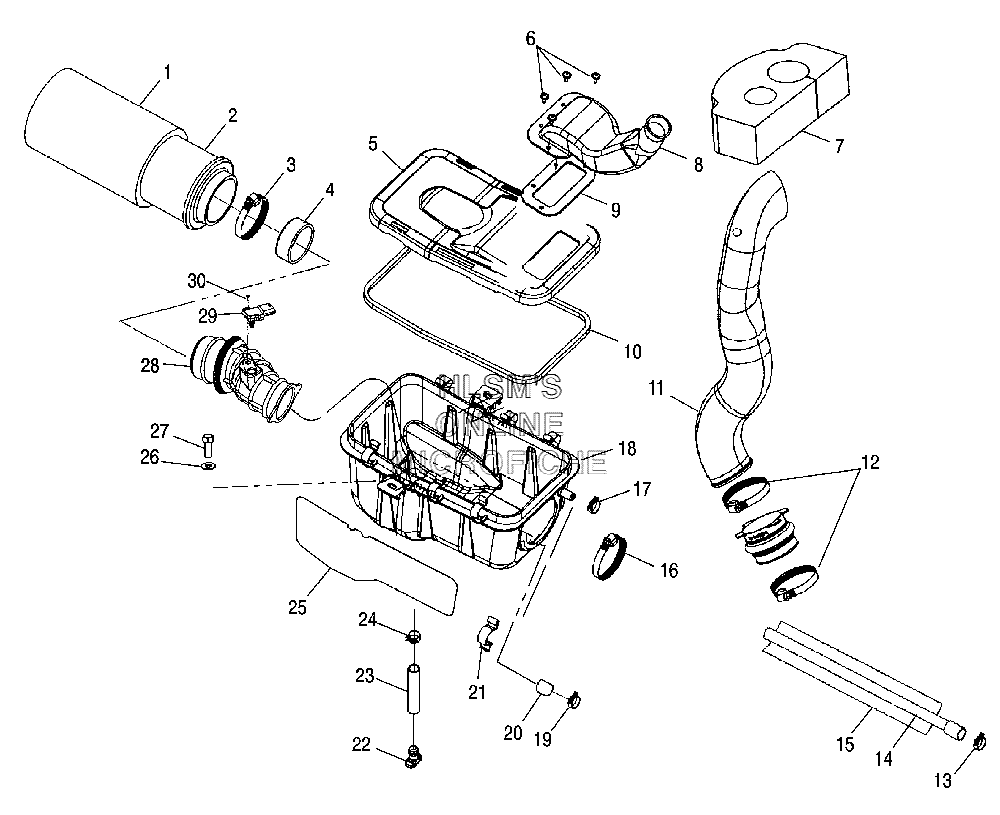

AIR BOX ASSY. для Polaris Sportsman 700 EFI (A06MH68AQ) (NBU SUB CAMO) - 2006 года выпуска`
-
№АртикулНазвание
-
15811633 FILTER, PRECLEAN, SLEEVEFILTER, PRECLEAN, SLEEVE
-
27080595 FILTER, AIRFILTER, AIR
-
37080413 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
45433847 SLEEVE, CARB (INNER)SLEEVE, CARB (INNER)
-
55432868 COVER, AIRBOXCOVER, AIRBOX
-
67517317 SCREWSCREW
-
75812775 SEAL, FOAMSEAL, FOAM
-
85434013 DUCT, AIR INTAKEDUCT, AIR INTAKE
-
95411422 GASKET, INTAKEGASKET, INTAKE
-
105811482 SEAL, COVERSEAL, COVER
-
115434044 DUCT, AIR INLET, CLUTCHDUCT, AIR INLET, CLUTCH
-
127080451 CLAMP, HOSECLAMP, HOSE
-
137080694 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
145412615 BREATHER LINE KITBREATHER LINE KIT
-
158450108-34 SHEATH, REFLECT SLEEVE (19X34CM)SHEATH, REFLECT SLEEVE (19X34CM)
-
167080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
177080699 CLAMP, HOSECLAMP, HOSE
-
185433678 BOX, AIRBOX, AIR
-
197080534 CLAMP, HOSECLAMP, HOSE
-
205433396 CAP, END (BLACK)CAP, END (BLACK)
-
215242044 CLIPCLIP
-
225432377 PLUG, TRAPPLUG, TRAP
-
238450059-150 FUEL LINEFUEL LINE
-
247080650 CLAMP, HOSECLAMP, HOSE
-
255811650 FOILFOIL
-
267555859 WASHER, FLATWASHER, FLAT
-
277515179 SCREWSCREW
-
285412518 BOOT, THROTTLE BODY (IF BUILT BEFORE 9/26/05)BOOT, THROTTLE BODY (IF BUILT BEFORE 9/26/05)
-
285412985 BOOT, THROTTLE BODY EFI (IF BUILT AFTER 9/26/05)BOOT, THROTTLE BODY EFI (IF BUILT AFTER 9/26/05)
-
292410422 SENSOR, T MAPSENSOR, T MAP
-
307517658 SCREWSCREW
