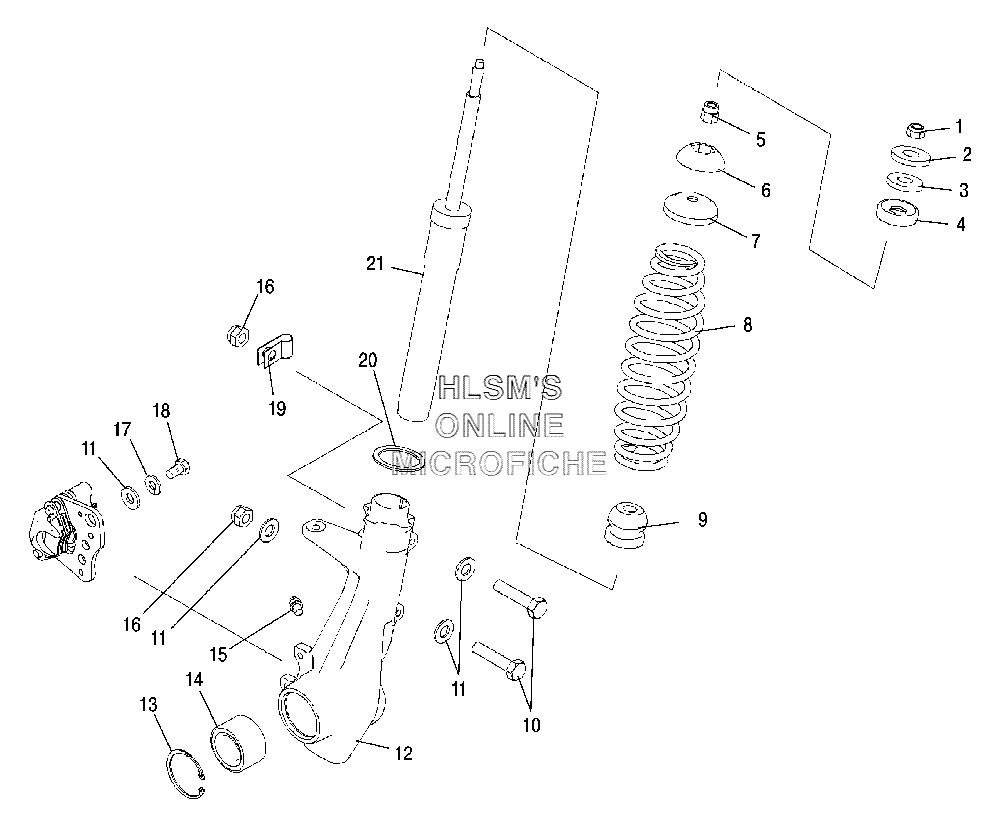

SUSPENSION - FRONT STRUT для Polaris Sportsman 700 EFI (A06MH68AQ) (NBU SUB CAMO) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7547104 NUT
    NUT
  • 2
    7555749 WASHER
    WASHER
  • 3
    5810291 SPACER, RUBBER
    SPACER, RUBBER
  • 4
    5432872 PIVOT, BALL (TOP)
    PIVOT, BALL (TOP)
  • 5
    5132062 SPACER (1/2, 20)
    SPACER (1/2, 20)
  • 6
    5432871 PIVOT, BALL (BOTTOM)
    PIVOT, BALL (BOTTOM)
  • 7
    5243364 RETAINER, SPRING
    RETAINER, SPRING
  • 8
    7042301-067 SPRING, COMP, 75, 111#/IN, 13.5 (BLACK)
    SPRING, COMP, 75, 111#/IN, 13.5 (BLACK)
  • 9
    5412665 BUMPER (17.8MM ID)
    BUMPER (17.8MM ID)
  • 10
    7515339 BOLT
    BOLT
  • 11
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 12
    5134154 HUBSTRUT ASSY. (LEFT)
    HUBSTRUT ASSY. (LEFT)
  • 12
    5134155 HUBSTRUT ASSY. (RIGHT)
    HUBSTRUT ASSY. (RIGHT)
  • 13
    7710507 RING, RET.
    RING, RET.
  • 14
    3514342 BEARING, AXLE TUBE/HUBSTRUT
    BEARING, AXLE TUBE/HUBSTRUT
  • 15
    7080306 FITTING, LUBE W/BALL CHECK
    FITTING, LUBE W/BALL CHECK
  • 16
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 17
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 18
    7512365 SCREW, CAP
    SCREW, CAP
  • 19
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 20
    5211115 WASHER
    WASHER
  • 21
    7041762 STRUT, FRONT (18X30MM)
    STRUT, FRONT (18X30MM)
