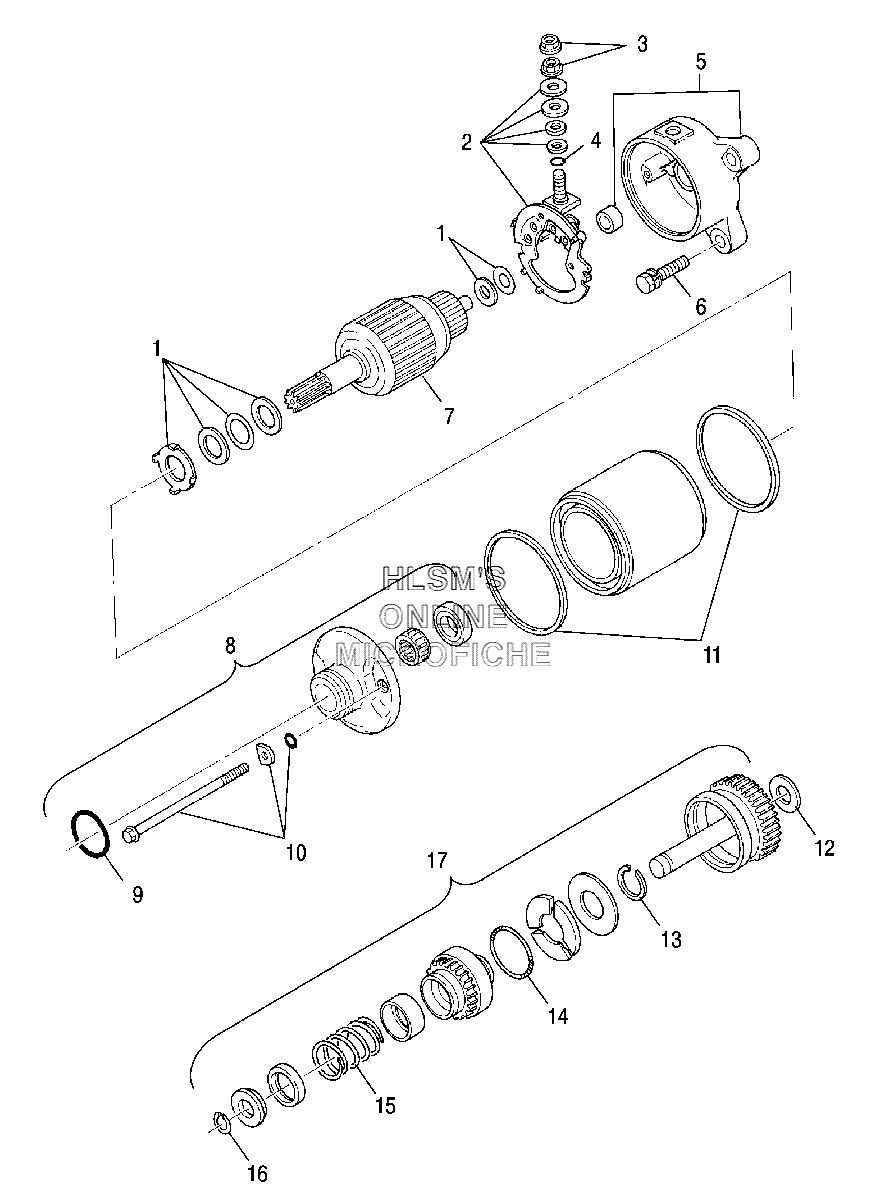

STARTING MOTOR для Polaris Sportsman 500 HO EFI (A06MH50AY) (BLACK METALLIC) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3084982 WASHER SET
    WASHER SET
  • 2
    3084406 CARBON BRUSH
    CARBON BRUSH
  • 3
    3083649 NUT, FLANGE
    NUT, FLANGE
  • 4
    3084408 O-RING
    O-RING
  • 5
    3085034 COVER, ASSY. (REAR)
    COVER, ASSY. (REAR)
  • 6
    3082038 BOLT AND WASHER ASSY
    BOLT AND WASHER ASSY
  • 7
    3085353 ARMATURE ASSY
    ARMATURE ASSY
  • 8
    3085033 BRACKET, FRONT, ASSY (INCL. 9)
    BRACKET, FRONT, ASSY (INCL. 9)
  • 9
    3088161 O-RING
    O-RING
  • 10
    3084983 BOLT ASSY. (INCL. 4)
    BOLT ASSY. (INCL. 4)
  • 11
    3084405 RING, RUBBER
    RING, RUBBER
  • 12
    3083737 WASHER
    WASHER
  • 13
    3084412 CLIP
    CLIP
  • 14
    3084411 SPRING, WEIGHT
    SPRING, WEIGHT
  • 15
    3084410 SPRING, RETURN
    SPRING, RETURN
  • 16
    3084409 CLIP
    CLIP
  • 17
    3087030 GEAR SHAFT ASSY (INCL. 13-16)
    GEAR SHAFT ASSY (INCL. 13-16)
  • -
    3084981 MOTOR, STARTING ASSY (INCL. 1-5, 7-11)
    MOTOR, STARTING ASSY (INCL. 1-5, 7-11)
