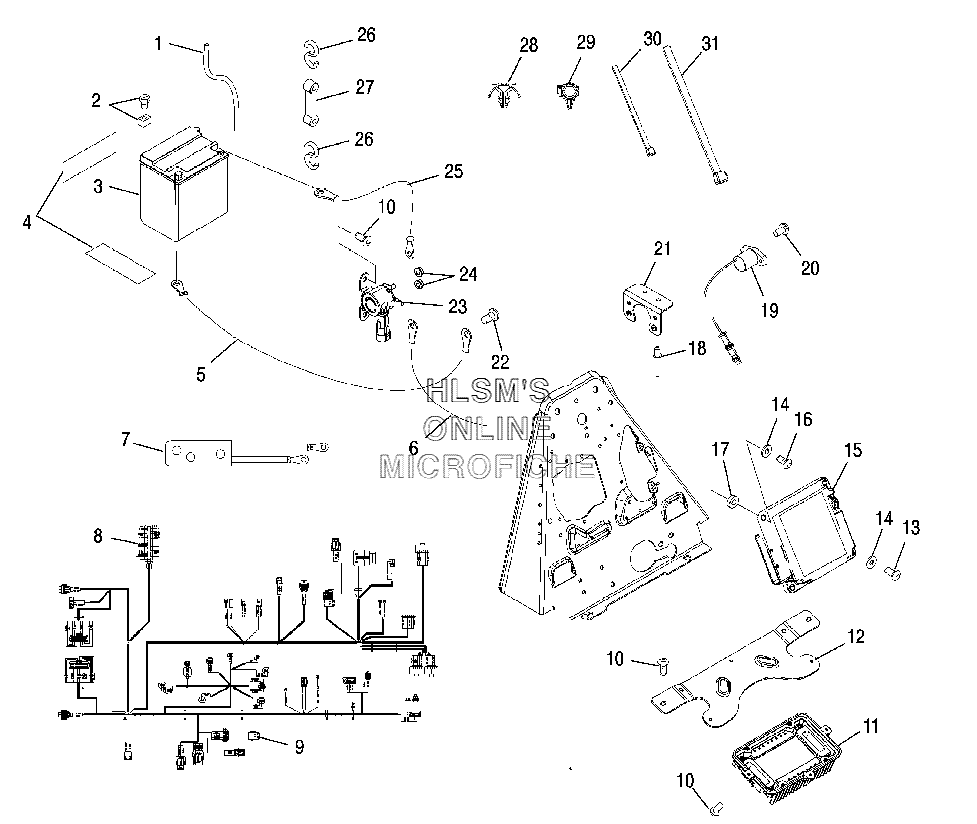

ELECTRICAL COMPONENTS для Polaris Sportsman 500 HO EFI (A06MH50AY) (BLACK METALLIC) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5432077 TUBE, VENT
    TUBE, VENT
  • 2
    2202099 BATTERY BOLT-KIT
    BATTERY BOLT-KIT
  • 3
    4010630 BATTERY-30 AMP, TOP MOUNT
    BATTERY-30 AMP, TOP MOUNT
  • 4
    5810290 PAD, BATTERY
    PAD, BATTERY
  • 5
    4011481 CABLE-BLACK (BATTERY/FRAME)COM
    CABLE-BLACK (BATTERY/FRAME)COM
  • 6
    4010093 CABLE, SOL/STARTER
    CABLE, SOL/STARTER
  • 7
    2410765 REGULATOR
    REGULATOR
  • 8
    2410625 HARNESS-MAIN
    HARNESS-MAIN
  • 8
    2202607 FUSIBLE LINK KIT (0.8 MM)
    FUSIBLE LINK KIT (0.8 MM)
  • 8
    2203193 HARNESS KIT
    HARNESS KIT
  • 9
    4010924 MODULE-RESISTOR
    MODULE-RESISTOR
  • 10
    7512024 SCREW
    SCREW
  • 11
    4011226 CONTROL-MODULE
    CONTROL-MODULE
  • 12
    5249459 BRACKET-PDM, MOUNT, PLATED
    BRACKET-PDM, MOUNT, PLATED
  • 13
    7512018 SCREW
    SCREW
  • 14
    7555746 WASHER
    WASHER
  • 15
    4011246 MODULE-ENGINE CONTROL, ECM BASE
    MODULE-ENGINE CONTROL, ECM BASE
  • 16
    7518552 BOLT
    BOLT
  • 17
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 18
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 19
    4011487 COIL-IGNITION, WITH WIRE (13'')
    COIL-IGNITION, WITH WIRE (13'')
  • 20
    7518196 SCREW
    SCREW
  • 21
    5249815 BRACKET
    BRACKET
  • 22
    7512232 BOLT
    BOLT
  • 23
    4010947 SOLENOID-STARTER
    SOLENOID-STARTER
  • 24
    7547270 NUT
    NUT
  • 25
    4010471 CABLE-RED, BATTERY/SOLENOID (8.5)
    CABLE-RED, BATTERY/SOLENOID (8.5)
  • 26
    7010032 HOOK-BATTERY STRAP
    HOOK-BATTERY STRAP
  • 27
    5412499 STRAP-BATTERY HOLD DOWN-C
    STRAP-BATTERY HOLD DOWN-C
  • 28
    7080965 MOUNT-CABLE TIE
    MOUNT-CABLE TIE
  • 29
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 30
    7080138 CABLE TIE
    CABLE TIE
  • 31
    7080492 CABLE TIE (11 INCH)
    CABLE TIE (11 INCH)
