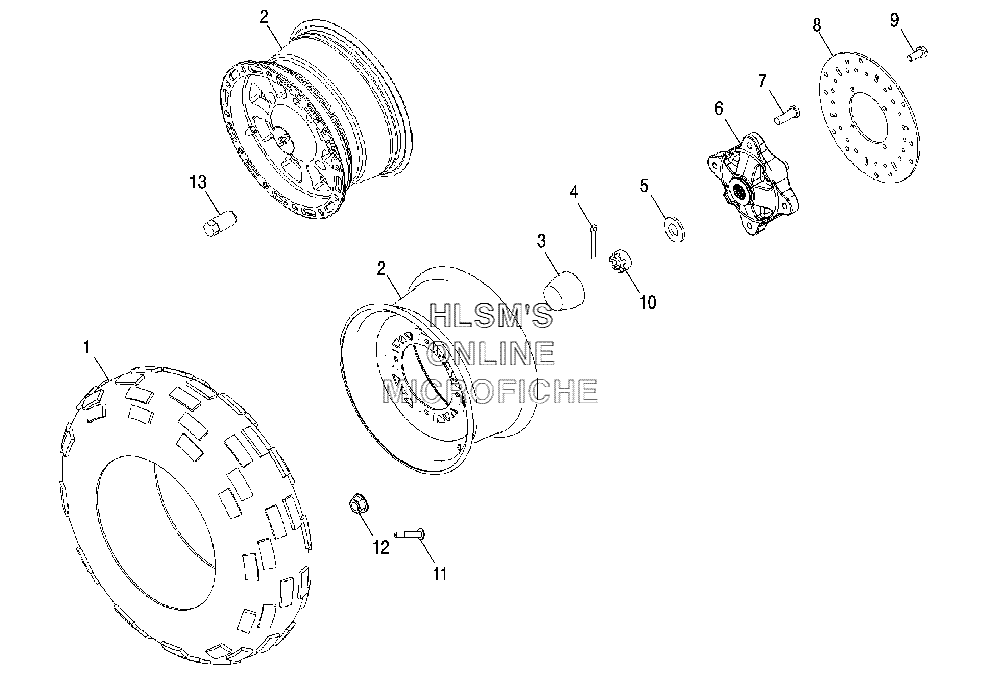

WHEEL - FRONT W/ HUB для Polaris Sportsman 500 HO EFI (A06MH50AT) (NBU SUB CAMO) - 2006 года выпуска
-
№АртикулНазвание
-
15412660 TIRE-FRONT (RADIAL) (26X8RX12)TIRE-FRONT (RADIAL) (26X8RX12)
-
21520269-067 RIM, FRONT (12X6) (BLACK)RIM, FRONT (12X6) (BLACK)
-
21520269-455 RIM, FRONT (12X6) (NBU CAMO)RIM, FRONT (12X6) (NBU CAMO)
-
35411164 COVER, DUST HUBCOVER, DUST HUB
-
47661402 PIN, COTTERPIN, COTTER
-
57556004 WASHERWASHER
-
65134310 HUB-WHEELHUB-WHEEL
-
77515513 STUDSTUD
-
77518378 STUD (3/8-24X1.38) PRESS FIT-ZSTUD (3/8-24X1.38) PRESS FIT-Z
-
85244314 DISC, BRAKE (FRONT)DISC, BRAKE (FRONT)
-
97512325 BOLTBOLT
-
107542810 NUT, SLOTTEDNUT, SLOTTED
-
111525017 VALVE, RIMVALVE, RIM
-
127547237 NUT-FLANGE, TWO PIECENUT-FLANGE, TWO PIECE
-
137547309 NUT, WHEELNUT, WHEEL
