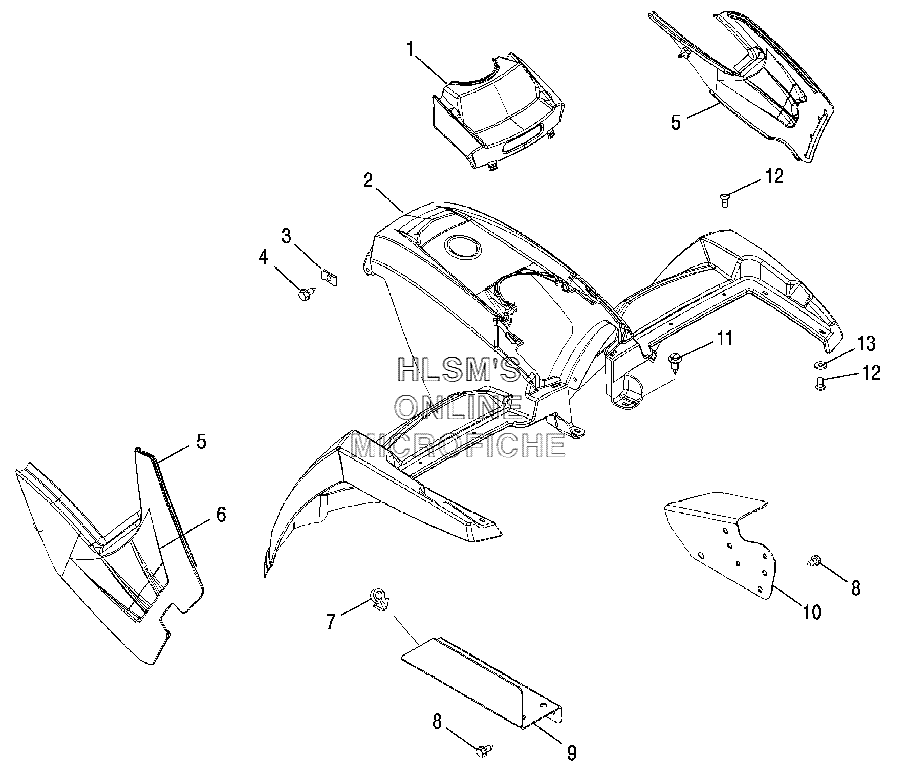

FENDER - FRONT для Polaris Sportsman 500 HO EFI (A06MH50AT) (NBU SUB CAMO) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5436716-455 COVER-FRONT (NBU SUB CAMO)
    COVER-FRONT (NBU SUB CAMO)
  • 1
    7661893 CLIP-TRIM, METAL
    CLIP-TRIM, METAL
  • 2
    7517561 SCREW (AQ) (AX)
    SCREW (AQ) (AX)
  • 3
    2632975-454 CAB, FRONT ASSY
    CAB, FRONT ASSY
  • 4
    7670057 NUT, SPEED
    NUT, SPEED
  • 5
    7517219 SCREW
    SCREW
  • 6
    2633048-455 PANEL/FOIL ASSY (RIGHT/NBU SUB CAMO)
    PANEL/FOIL ASSY (RIGHT/NBU SUB CAMO)
  • 6
    5435919-455 PANEL-SIDE (LEFT/NBU CAMO)
    PANEL-SIDE (LEFT/NBU CAMO)
  • 7
    5813031 FOIL-SIDE PANEL, L-SHAPE
    FOIL-SIDE PANEL, L-SHAPE
  • 7
    5813041 FOIL-SIDE PANEL (RIGHT)
    FOIL-SIDE PANEL (RIGHT)
  • 7
    5813055 FOIL-SIDE PANEL (FRONT)
    FOIL-SIDE PANEL (FRONT)
  • 8
    7080756 CLIP, SNAP-IN
    CLIP, SNAP-IN
  • 9
    7517386 SCREW
    SCREW
  • 10
    5248100 GUARD-SPLASH (RIGHT)
    GUARD-SPLASH (RIGHT)
  • 11
    5246872 GUARD, SPLASH (LEFT)
    GUARD, SPLASH (LEFT)
  • 12
    7661855 RIVET-TUFLOK
    RIVET-TUFLOK
  • 13
    7512026 SCREW
    SCREW
  • 14
    7556034 WASHER
    WASHER
