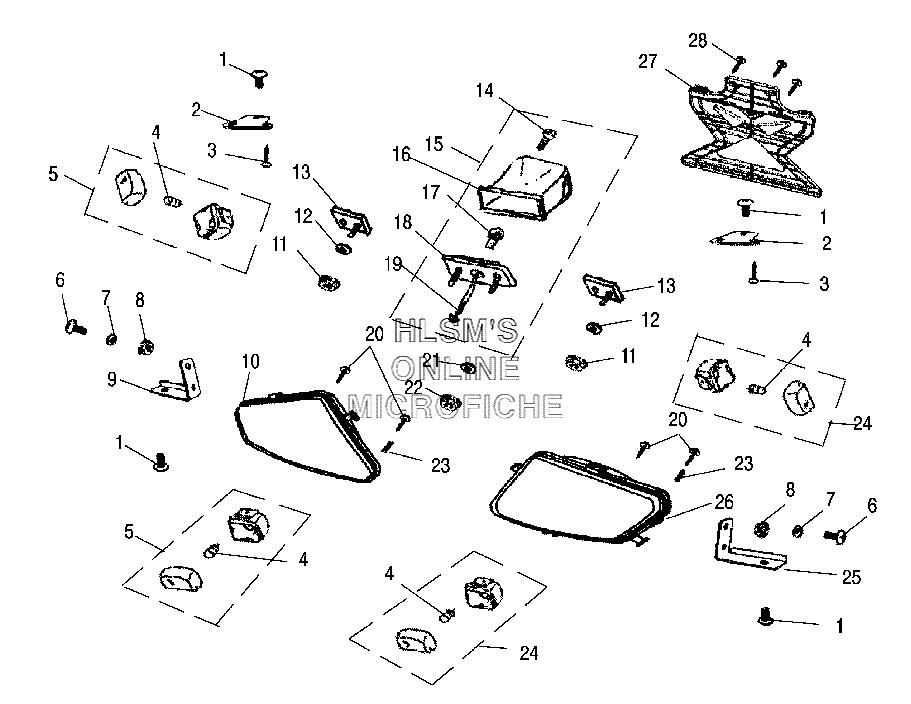

HEADLIGHT / BRAKELIGHT для Polaris Sawtooth Quad (A06PB20VB) (SONIC BLUE) - 2006 года выпуска

№

Артикул

Название
1

0450667 BOLT, PHILLIPS

BOLT, PHILLIPS
2

0453305 BRACKET, SIGNAL, REAR

BRACKET, SIGNAL, REAR
3

0450040 SCREW, TAPPING

SCREW, TAPPING
4

0453302 BULB, SIGNAL

BULB, SIGNAL
5

0453290 SIGNAL ASSY., REAR (RIGHT) (INCL. 4)

SIGNAL ASSY., REAR (RIGHT) (INCL. 4)
6

0450622 BOLT, PHILLIPS

BOLT, PHILLIPS
7

0450710 WASHER, PLAIN

WASHER, PLAIN
8

0450741 NUT, LOCK

NUT, LOCK
9

0453304 BRACKET, SIGNAL, FRONT (RIGHT)

BRACKET, SIGNAL, FRONT (RIGHT)
10

2410510 HEADLIGHT ASSY, 35/35W ECE (RIGHT)

HEADLIGHT ASSY, 35/35W ECE (RIGHT)
11

0450447 NUT, FLANGE

NUT, FLANGE
12

0451822 WASHER (BLACK)

WASHER (BLACK)
13

0450446 REFLECTOR, REAR

REFLECTOR, REAR
14

0451801 TAPPING SCREW, PHILLIPS PAN

TAPPING SCREW, PHILLIPS PAN
15

0452829 TAILLIGHT ASSY., PHOENIX QUAD (INCL.14, 16)

TAILLIGHT ASSY., PHOENIX QUAD (INCL.14, 16)
16

0452995 LENS, TAIL LIGHT EMARK

LENS, TAIL LIGHT EMARK
17

0452830 BULB, TAIL LIGHT, PHOENIX QUAD

BULB, TAIL LIGHT, PHOENIX QUAD
18

0451799 GASKET, TAIL LIGHT

GASKET, TAIL LIGHT
19

0451800 SOCKET, TAIL LIGHT

SOCKET, TAIL LIGHT
20

0453306 SCR, PHILLIPS, PANHD, SELFTAPPING

SCR, PHILLIPS, PANHD, SELFTAPPING
21

0450041 WASHER, PLAIN

WASHER, PLAIN
22

0450880 NUT, FLANGE W/SERR

NUT, FLANGE W/SERR
23

0453307 SPRING, ADJ, HEAD LIGHT

SPRING, ADJ, HEAD LIGHT
24

0453292 SIGNAL ASSY., REAR (LEFT) (INCL. 4)

SIGNAL ASSY., REAR (LEFT) (INCL. 4)
25

0453303 BRACKET, SIGNAL, FRONT (LEFT)

BRACKET, SIGNAL, FRONT (LEFT)
26

2410509 HEADLIGHT ASSY., 35/35W, ECE (LEFT)

HEADLIGHT ASSY., 35/35W, ECE (LEFT)
27

0453071 BRACKET, LICENSE PLATE, QUAD

BRACKET, LICENSE PLATE, QUAD
28

0452215 BOLT, HEX

BOLT, HEX
