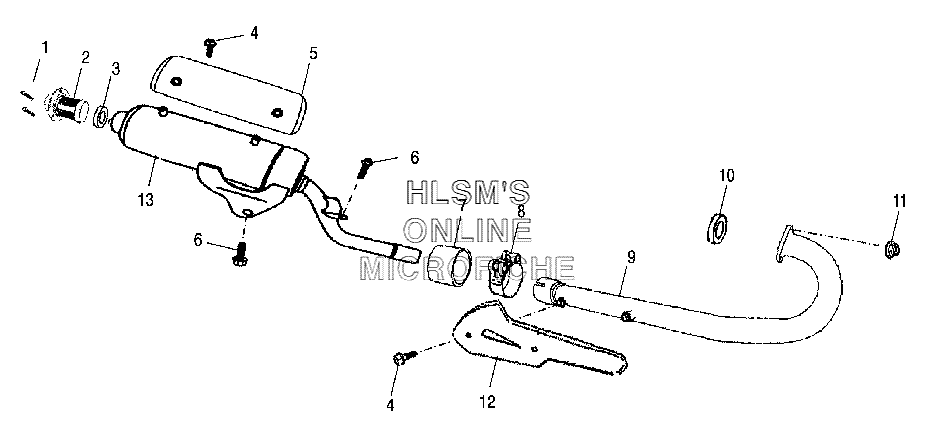

EXHAUST SYSTEM для Polaris Sawtooth Quad (A06PB20VB) (SONIC BLUE) - 2006 года выпуска`
-
№АртикулНазвание
-
10453130 SCREWSCREW
-
20452587 SPARK ARRESTERSPARK ARRESTER
-
30453132 WASHERWASHER
-
40452586 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
50453251 SHIELD SILENCERSHIELD SILENCER
-
60450684 BOLT, HEX WASHERBOLT, HEX WASHER
-
70452584 COLLAR, EXHAUSTCOLLAR, EXHAUST
-
80452585 CLAMPCLAMP
-
90452308 PIPE, EXHAUST, FRONTPIPE, EXHAUST, FRONT
-
100453297 GASKET, EXHAUSTGASKET, EXHAUST
-
110450268 NUT, FLANGENUT, FLANGE
-
120452583-385 SHIELD, HEADPIPE (SILVER)SHIELD, HEADPIPE (SILVER)
-
130453308 MUFFLERMUFFLER
