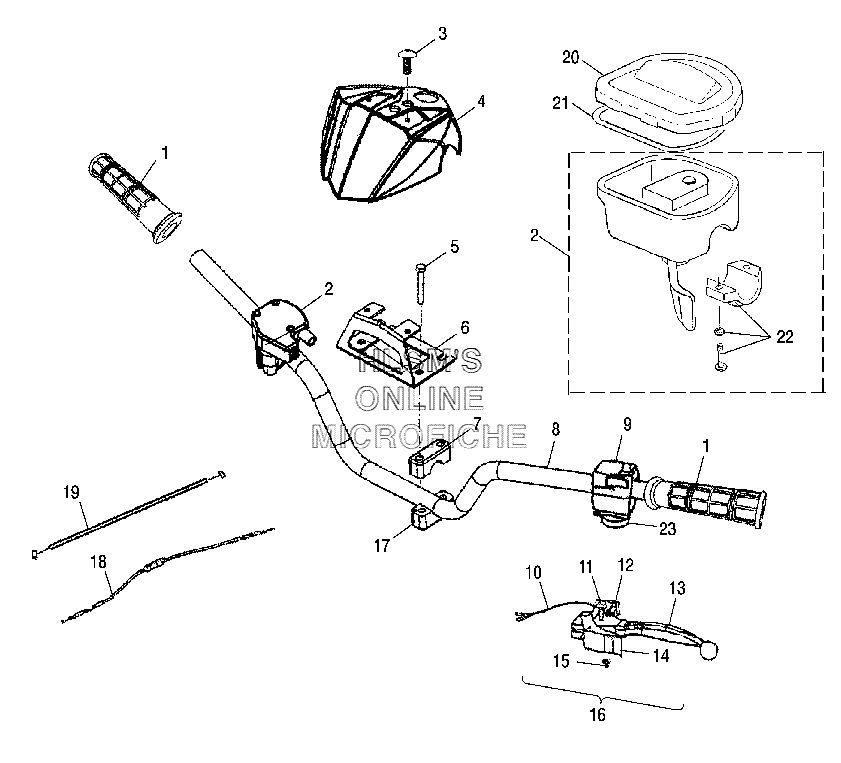

HANDLEBAR для Polaris Phoenix 200 (A06PB20AA) - 2006 года выпуска
-
№АртикулНазвание
-
10453370 GRIP, HANDLEGRIP, HANDLE
-
22010204 THROTTLE CONTROL ASSY.THROTTLE CONTROL ASSY.
-
30450622 BOLT, PHILLIPSBOLT, PHILLIPS
-
40452694-070 POD, HANDLEBAR (BLACK)POD, HANDLEBAR (BLACK)
-
50453256 BOLT, HEXBOLT, HEX
-
60452695 BRACKET, POD, PHOENIXBRACKET, POD, PHOENIX
-
70452688 CLAMP, HANDLEBAR (UPPER)CLAMP, HANDLEBAR (UPPER)
-
80453105-385 HANDLEBARTHANDLEBART
-
90453103 SWITCH ASSY. (LEFT)SWITCH ASSY. (LEFT)
-
100450836 HARNESS, SENSOR SWITCHHARNESS, SENSOR SWITCH
-
110450807 BOLT, BRAKE LEVER (LEFT)BOLT, BRAKE LEVER (LEFT)
-
120453086 CAM, LOCK, BRAKECAM, LOCK, BRAKE
-
130452691 LEVER, BRAKE (LEFT)LEVER, BRAKE (LEFT)
-
140450692 HAND BRAKE, LOCKHAND BRAKE, LOCK
-
150450808 NUT, LOCKNUT, LOCK
-
160452914 BRAKE LEVER ASSY. (LEFT/BLACK)BRAKE LEVER ASSY. (LEFT/BLACK)
-
170452685 CLAMP, HANDLEBAR (LOWER)CLAMP, HANDLEBAR (LOWER)
-
180453099 CABLE, THROTTLECABLE, THROTTLE
-
190452697 CHOKE, CABLE, MANUALCHOKE, CABLE, MANUAL
-
205434113 COVER, THROTTLE CONTROLCOVER, THROTTLE CONTROL
-
215411439 O-RINGO-RING
-
222010191 THROTTLE CLAMP ASSY.THROTTLE CLAMP ASSY.
-
230451037 CHOKE ASSY., MANUALCHOKE ASSY., MANUAL
