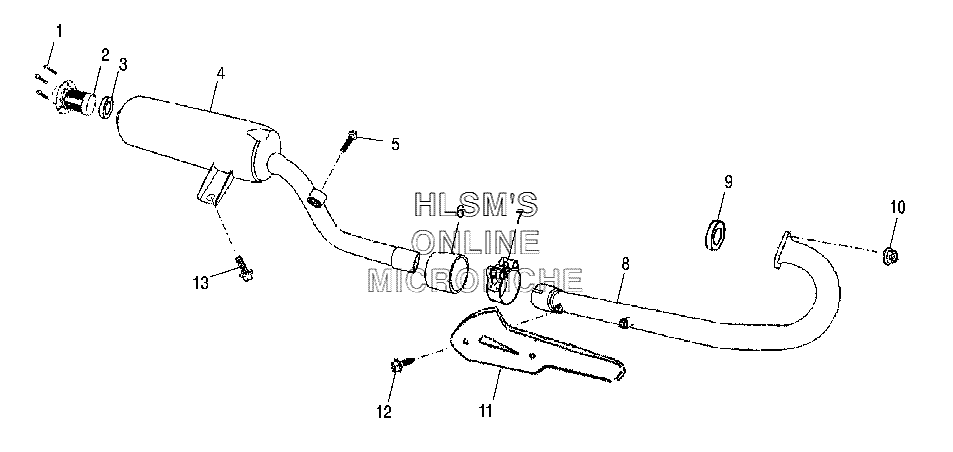

EXHAUST SYSTEM для Polaris Phoenix 200 (A06PB20AA) - 2006 года выпуска`
-
№АртикулНазвание
-
10453130 SCREWSCREW
-
20452587 SPARK ARRESTERSPARK ARRESTER
-
30453132 WASHERWASHER
-
40453116 SILENCERSILENCER
-
50450684 BOLT, HEX WASHERBOLT, HEX WASHER
-
60452584 COLLAR, EXHAUSTCOLLAR, EXHAUST
-
70453117 CLAMP, EXHAUSTCLAMP, EXHAUST
-
80452308 PIPE, EXHAUST, FRONTPIPE, EXHAUST, FRONT
-
90453297 GASKET, EXHAUSTGASKET, EXHAUST
-
100450268 NUT, FLANGENUT, FLANGE
-
110452583 SHIELD, HEADPIPESHIELD, HEADPIPE
-
120452586 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
130453118 BOLTBOLT
