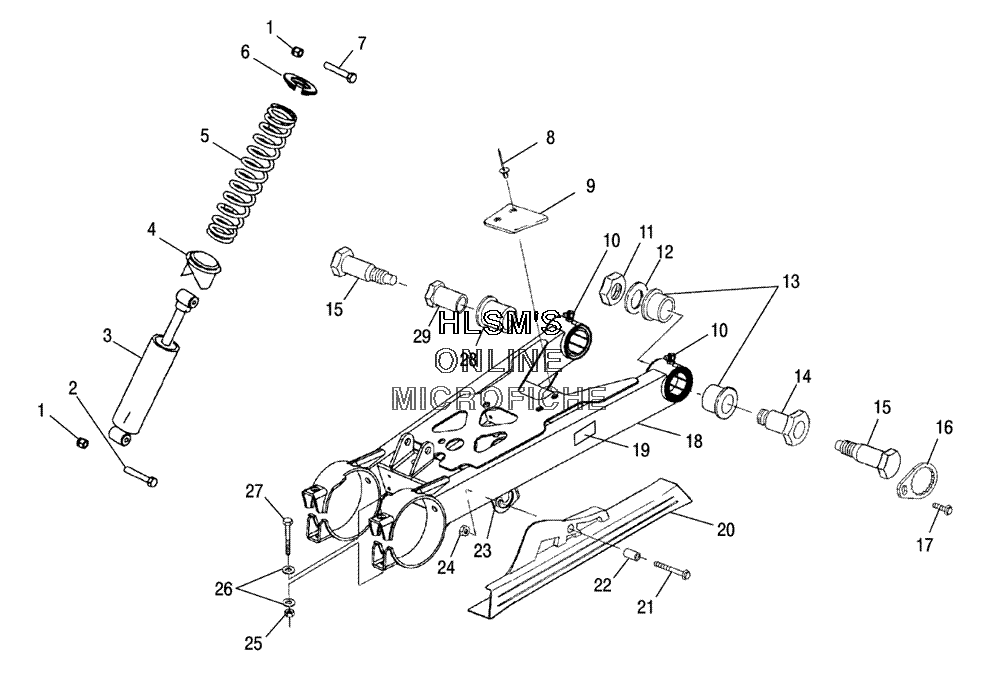

SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING для Polaris TRAIL BLAZER (A05BA25CB) (COS S.O.N/MET) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 2
    7517761 SCREW
    SCREW
  • 3
    7042319 SHOCK, SACHS (REAR)
    SHOCK, SACHS (REAR)
  • 4
    5630551 CAM, ADJUST SPRING
    CAM, ADJUST SPRING
  • 5
    7043068-216 SPRING COMP, 110/180#/IN (SCRAMBLER YELLOW)
    SPRING COMP, 110/180#/IN (SCRAMBLER YELLOW)
  • 6
    5631045 RETAINER SPRING
    RETAINER SPRING
  • 7
    7515415 SCREW
    SCREW
  • 8
    7661046 RIVET POP (3/16) (.376 .500)
    RIVET POP (3/16) (.376 .500)
  • 9
    5432727 GUIDE, CHAIN PAD
    GUIDE, CHAIN PAD
  • 10
    7080510 FITTING, ZERK 90 DEGREE
    FITTING, ZERK 90 DEGREE
  • 11
    7547082 NUT, HEX JAM
    NUT, HEX JAM
  • 12
    7556035 WASHER, FLAT
    WASHER, FLAT
  • 13
    5434546 BUSHING, HYBRID (RIGHT/BLACK)
    BUSHING, HYBRID (RIGHT/BLACK)
  • 14
    5133167 BUSHING PIVOT (RIGHT)
    BUSHING PIVOT (RIGHT)
  • 15
    5134321 BOLT PIVOT
    BOLT PIVOT
  • 16
    5247488 BRACKET BOLT LOCK
    BRACKET BOLT LOCK
  • 17
    7515399 SCREW
    SCREW
  • 18
    1541988-067 SWING ARM ASSY, LONG TVL (BLACK) (INCL. 10, 13, 28)
    SWING ARM ASSY, LONG TVL (BLACK) (INCL. 10, 13, 28)
  • 19
    7078572 DECAL "CHAIN FREEPLAY" HYBRID
    DECAL "CHAIN FREEPLAY" HYBRID
  • 20
    5432854 GUARD, CHAIN
    GUARD, CHAIN
  • 21
    7515304 SCREW FLANGED
    SCREW FLANGED
  • 22
    5332828 BUSHING
    BUSHING
  • 23
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 24
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 25
    7547066 NUT, NYLOK Y ( 7/16 20)
    NUT, NYLOK Y ( 7/16 20)
  • 26
    7555883 WASHER
    WASHER
  • 27
    7512576 BOLT
    BOLT
  • 28
    5434545 BUSHING, HYBRID (LEFT/BLACK)
    BUSHING, HYBRID (LEFT/BLACK)
