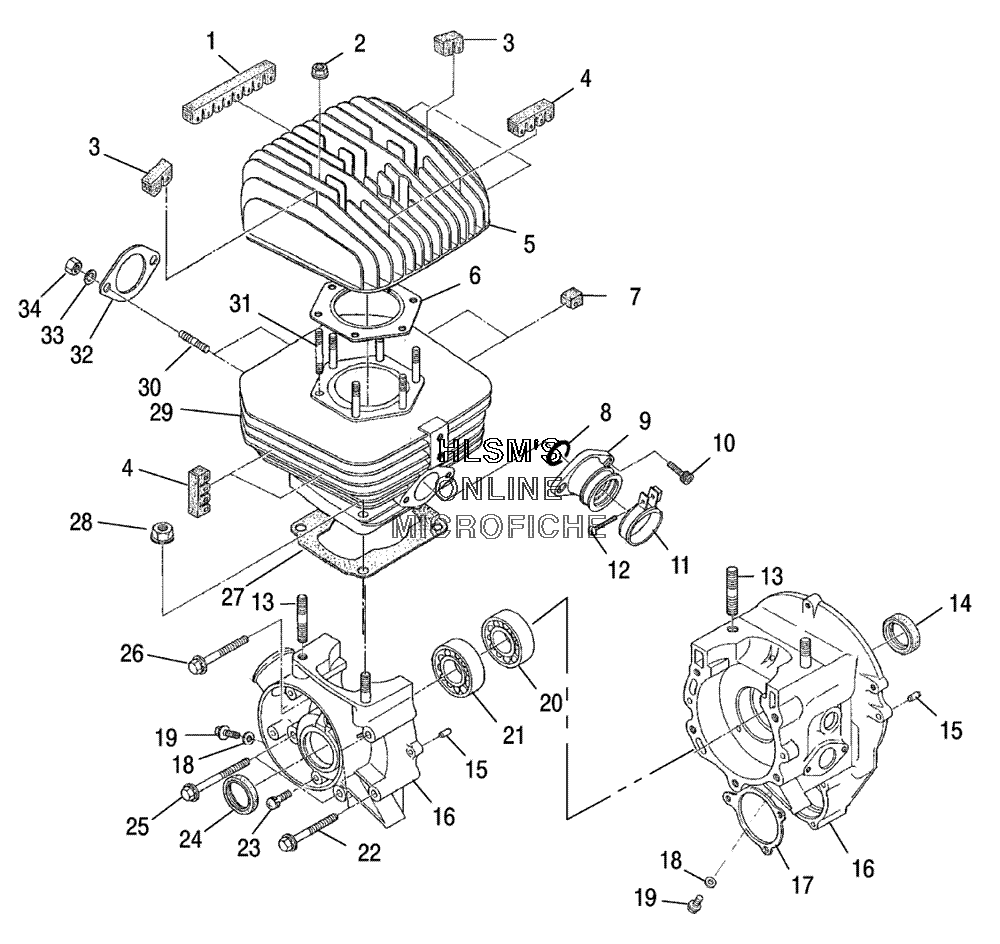

CRANKCASE W/ CYLINDER для Polaris TRAIL BLAZER (A05BA25CB) (COS S.O.N/MET) - 2005 года выпуска
-
№АртикулНазвание
-
13083931 FIN DAMPER #3FIN DAMPER #3
-
23082910 NUT FLANGENUT FLANGE
-
33083932 FIN DAMPER #4FIN DAMPER #4
-
43083929 FIN DAMPER #1FIN DAMPER #1
-
53086841 HEAD, CYLINDERHEAD, CYLINDER
-
63084015 GASKET, HEAD (CP)GASKET, HEAD (CP)
-
73083930 FIN DAMPER #2FIN DAMPER #2
-
83084292 O RINGO RING
-
93085013 ADAPTER, CARBURETOR (INCL. 8)ADAPTER, CARBURETOR (INCL. 8)
-
103086786 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
113082257 BAND ASSY, ADAPTER (INCL. 12)BAND ASSY, ADAPTER (INCL. 12)
-
123081497 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
133080746 STUDSTUD
-
143080006 SEAL, OILSEAL, OIL
-
153086741 PIN, DOWELPIN, DOWEL
-
163087048 CRANKCASE ASSY (INCL. 13 15, 18 22, 24 26)CRANKCASE ASSY (INCL. 13 15, 18 22, 24 26)
-
173085283 GASKET, STARTER (NON ASBESTOS)GASKET, STARTER (NON ASBESTOS)
-
183082758 WASHER, FLATWASHER, FLAT
-
193086744 PLUG, DRAINPLUG, DRAIN
-
203089276 BEARING BALLBEARING BALL
-
213084580 BEARING, BALLBEARING, BALL
-
223086784 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
233081635 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
243084581 SEAL, OIL (PTO)SEAL, OIL (PTO)
-
253083615 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
263086783 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
273084016 GASKET, CYLINDERGASKET, CYLINDER
-
283082911 NUT FLANGENUT FLANGE
-
293087049 CYLINDER (INCL. 30, 31)CYLINDER (INCL. 30, 31)
-
303085326 STUDSTUD
-
313080283 STUDSTUD
-
323086757 GASKET, EXHAUSTGASKET, EXHAUST
-
333080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
