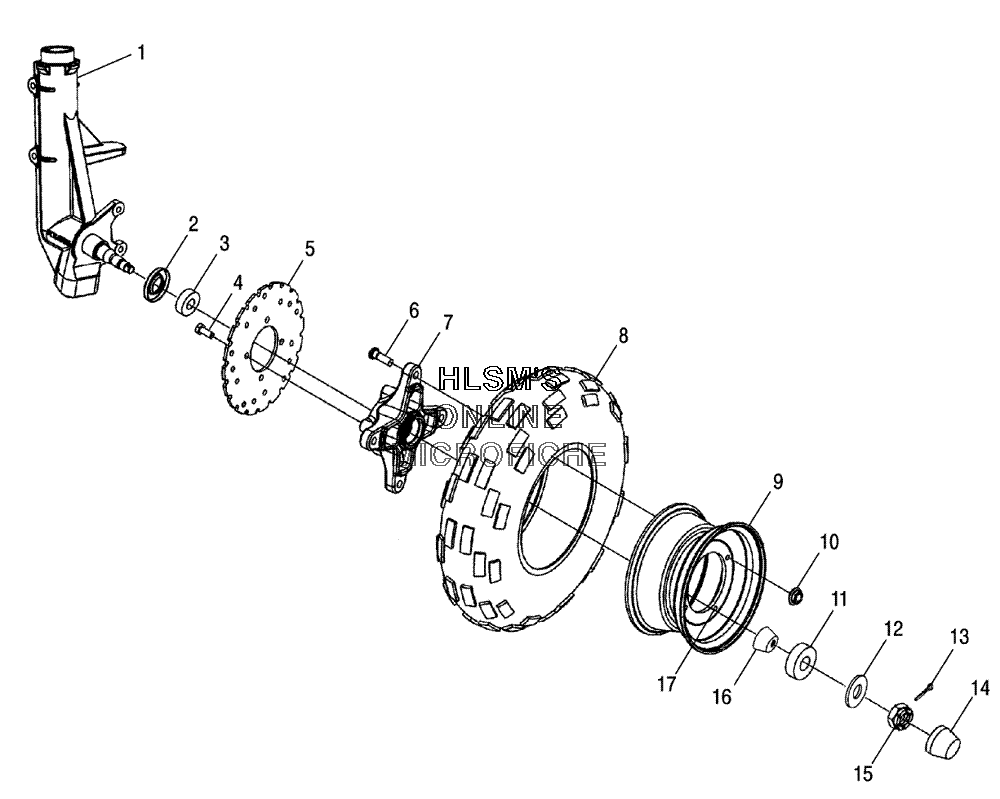

WHEEL - FRONT для Polaris TRAIL BLAZER (A05BA25CA) (BLAZING RED) - 2005 года выпуска
-
№АртикулНазвание
-
23610093 SEAL LIP (1.00X1.88X.25)SEAL LIP (1.00X1.88X.25)
-
33514527 BEARING BALL, SEALED (6204, 20X47)BEARING BALL, SEALED (6204, 20X47)
-
47512325 BOLTBOLT
-
55247961 DISC BRAKE (7.21 OD) (.158) (20T)DISC BRAKE (7.21 OD) (.158) (20T)
-
67515513 STUDSTUD
-
72202851 WHEEL HUB ASSY KITWHEEL HUB ASSY KIT
-
85412324 TIRE, TITAN (23X7 10, 489, 2 STAR)TIRE, TITAN (23X7 10, 489, 2 STAR)
-
91520175-486 RIM, NR (FRONT/SILVER) (5.86X10)RIM, NR (FRONT/SILVER) (5.86X10)
-
107547237 NUT FLANGE, TWO PIECE (3/8 24)NUT FLANGE, TWO PIECE (3/8 24)
-
113514464 BEARING, BALL, SEALED (6202,15X35)BEARING, BALL, SEALED (6202,15X35)
-
127556333 WASHER FLAT (.531X1.063X.094 Y)WASHER FLAT (.531X1.063X.094 Y)
-
137661402 PIN, COTTERPIN, COTTER
-
145411164 COVER, DUST HUBCOVER, DUST HUB
-
157542712 NUTNUT
-
165631551 SPACER TAPEREDSPACER TAPERED
