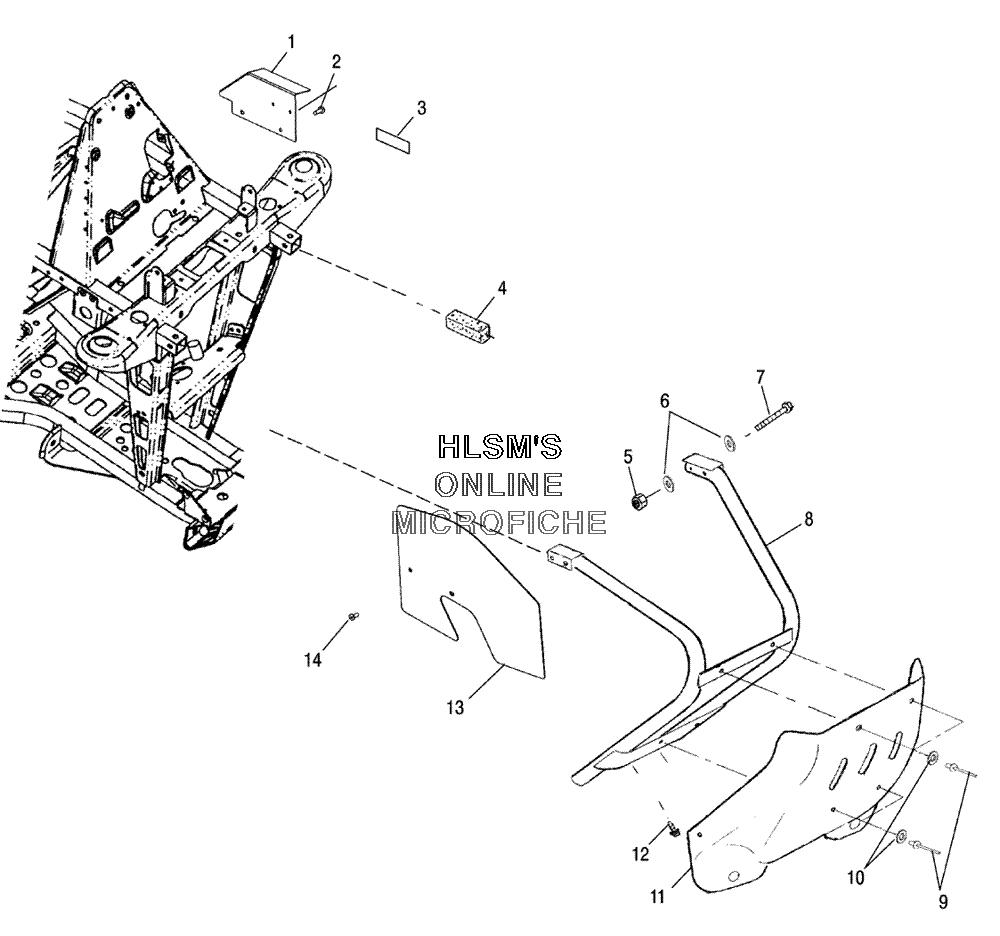

BUMPER AND SHIELDS - FRONT для Polaris TRAIL BLAZER (A05BA25CA) (BLAZING RED) - 2005 года выпуска
-
№АртикулНазвание
-
15247602-067 SHIELD SPLASH (LEFT/BLACK)SHIELD SPLASH (LEFT/BLACK)
-
27517386 SCREWSCREW
-
37079924 DECAL REFLECT.2.88 (AMBER)DECAL REFLECT.2.88 (AMBER)
-
45810467 PLUG, FRAMEPLUG, FRAME
-
57542324 NUT, NYLOKNUT, NYLOK
-
67558402 WASHER, FLATWASHER, FLAT
-
77512329 BOLTBOLT
-
81012773-067 BUMPER, GEN 3 (FRONT/BLACK)BUMPER, GEN 3 (FRONT/BLACK)
-
107558201 WASHER, FLATWASHER, FLAT
-
127515399 SCREWSCREW
-
135434085 GUARD SPLASH (RIGHT)GUARD SPLASH (RIGHT)
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- • BUMPER AND SHIELDS - FRONT
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROL PANEL
- CRANKCASE W/ CYLINDER
- CRANKSHAFT W/ PISTON
- DECALS
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL PUMP
- OIL TANK
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
