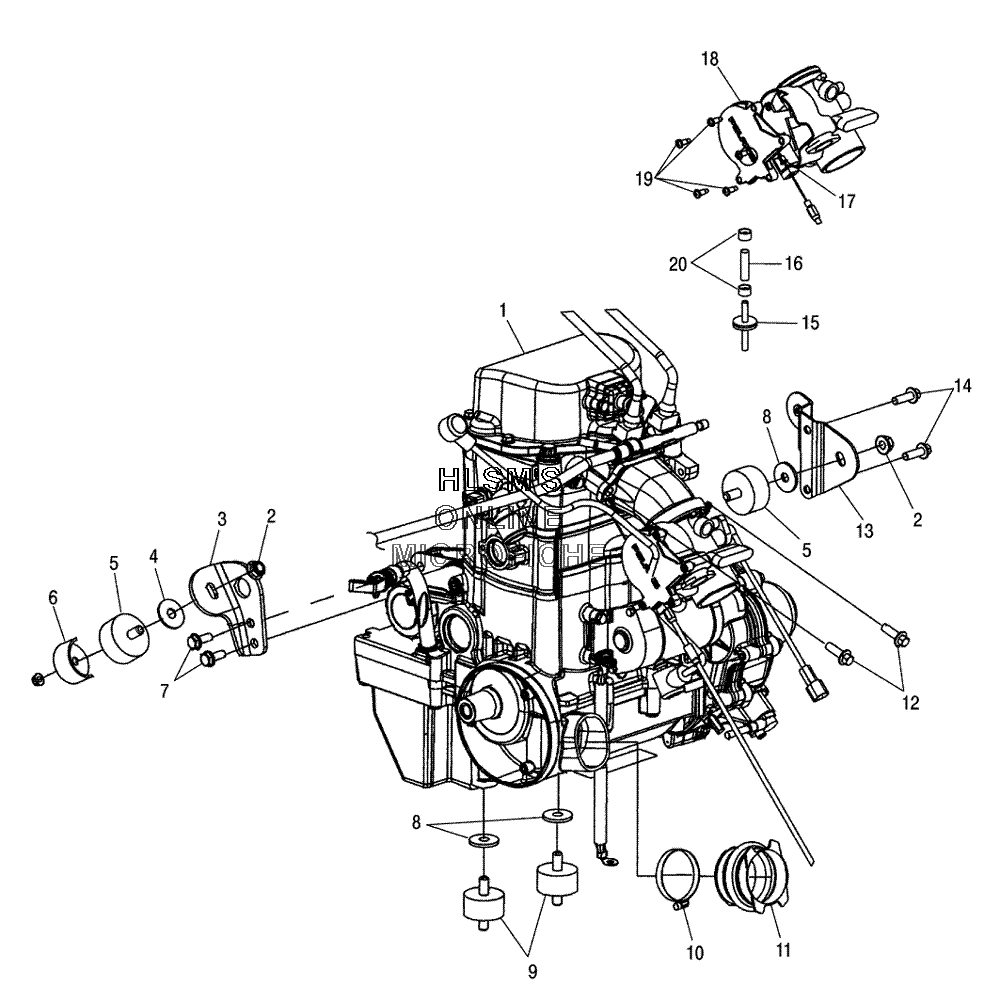

MOUNTING - ENGINE для Polaris SPORTSMAN 800 EFI (A05MH76AC) (N.B.U. SUB CAMO) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    2202915 SHORT BLOCK, KIT NOTE:
    SHORT BLOCK, KIT NOTE:
  • 2
    7547108 NUT
    NUT
  • 3
    5244771-067 MNT ENGINE (LOWER/FRONT/BLACK)
    MNT ENGINE (LOWER/FRONT/BLACK)
  • 4
    7555823 WASHER
    WASHER
  • 5
    3110044 MOUNT, RUBBER TOP
    MOUNT, RUBBER TOP
  • 6
    5245043 BRACKET TORQUE STOP PLATED
    BRACKET TORQUE STOP PLATED
  • 7
    7518364 BOLT 3/8 16X7/8 HEXAGON FLANGE GR5
    BOLT 3/8 16X7/8 HEXAGON FLANGE GR5
  • 8
    7555815 WASHER, FLAT
    WASHER, FLAT
  • 9
    3021119 MOUNT, RUBBER (REAR)
    MOUNT, RUBBER (REAR)
  • 10
    7080451 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    5411944 BOOT, CLTCH INTAKE (2.25I.D) (IF BUILT BEFORE 11/15/04)
    BOOT, CLTCH INTAKE (2.25I.D) (IF BUILT BEFORE 11/15/04)
  • 11
    5412634 BOOT CLUTCH INTAKE (2.25 I.D) (IF BUILT AFTER 11/15/04)
    BOOT CLUTCH INTAKE (2.25 I.D) (IF BUILT AFTER 11/15/04)
  • 12
    7516734 SCREW
    SCREW
  • 13
    5248701 BRACKET MOUNT, ENGINE PLATED (RIGHT)
    BRACKET MOUNT, ENGINE PLATED (RIGHT)
  • 14
    7516734 SCREW
    SCREW
  • 15
    7052038 VALVE, CHECK
    VALVE, CHECK
  • 16
    8350018-06 FUEL LINE
    FUEL LINE
  • 17
    3131514 GUIDE, THROTTLE CABLE
    GUIDE, THROTTLE CABLE
  • 18
    1202578 COVER AND O-RING ASSY, TB
    COVER AND O-RING ASSY, TB
  • 19
    3131515 SCREW, SHOULDER
    SCREW, SHOULDER
  • 20
    7080236 CLAMP, HOSE
    CLAMP, HOSE
