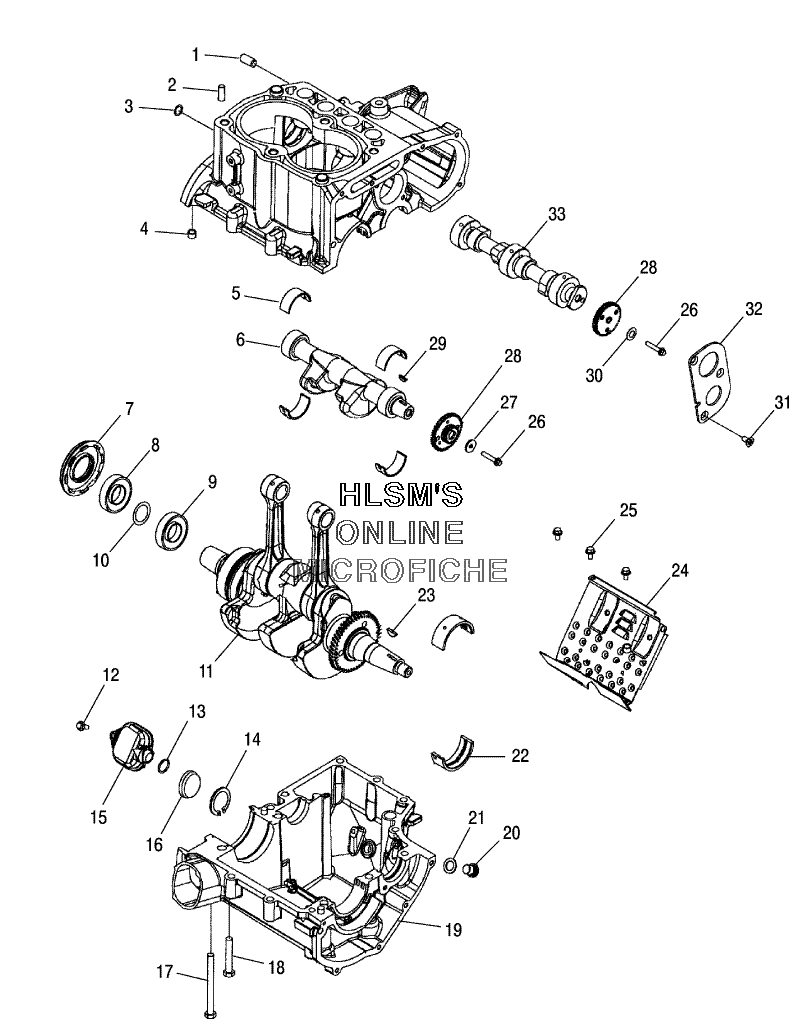

CRANKCASE / CRANKSHAFT для Polaris SPORTSMAN 800 EFI (A05MH76AC) (N.B.U. SUB CAMO) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7518007 PLUG HEXAGON SOCKET (1/4X18)
    PLUG HEXAGON SOCKET (1/4X18)
  • 2
    7661175 DOWEL HOL (M16X12) (0600089)
    DOWEL HOL (M16X12) (0600089)
  • 3
    7051530 PLUG, EXPANSION (19MM)
    PLUG, EXPANSION (19MM)
  • 4
    7663001 PIN, DOWEL
    PIN, DOWEL
  • 5
    5132753 BEARING JOURNAL BAL SHAFT
    BEARING JOURNAL BAL SHAFT
  • 6
    5134837 SHAFT BALANCE
    SHAFT BALANCE
  • 7
    5412114 SEAL FLANGE, CR (35X72X7)
    SEAL FLANGE, CR (35X72X7)
  • 8
    3514361 BEARING BALL, DP GRV (35X72X17)
    BEARING BALL, DP GRV (35X72X17)
  • 9
    3514318 BEARING, BALL
    BEARING, BALL
  • 10
    7556194 BUSHING (35X44X3.00 MM)
    BUSHING (35X44X3.00 MM)
  • 11
    2202916 CRANKSHAFT KIT
    CRANKSHAFT KIT
  • 12
    7516603 BOLT
    BOLT
  • 13
    5812016 SEAL O-RING (.070X.614)
    SEAL O-RING (.070X.614)
  • 14
    7710512 RING RETAINING (1 5/8)
    RING RETAINING (1 5/8)
  • 15
    1202663 OIL PICKUP ASSY
    OIL PICKUP ASSY
  • 16
    3060004 PLUG, EXPANSION (48MM)
    PLUG, EXPANSION (48MM)
  • 17
    7517792 SCREW, HEXAGON/FL Y (M8X1.25X90)
    SCREW, HEXAGON/FL Y (M8X1.25X90)
  • 18
    7517793 SCREW, HEXAGON/FL Y (M8X1.25X50)
    SCREW, HEXAGON/FL Y (M8X1.25X50)
  • 19
    2202864 CRANKCASE KIT
    CRANKCASE KIT
  • 20
    7052306 PLUG SOCKET (M12X1.5 DIN 908A)
    PLUG SOCKET (M12X1.5 DIN 908A)
  • 21
    5812232 WASHER, COPPER (19X12X1.3)
    WASHER, COPPER (19X12X1.3)
  • 22
    3585704 BEARING, MAIN JOURNAL
    BEARING, MAIN JOURNAL
  • 23
    7721117 KEY, WOODRUFF
    KEY, WOODRUFF
  • 24
    5211785 PLATE BAFFLE, CRANKCASE
    PLATE BAFFLE, CRANKCASE
  • 25
    7518045 SCREW, HEXAGON/FL Y/D (M5X.80X8)
    SCREW, HEXAGON/FL Y/D (M5X.80X8)
  • 26
    7517865 SCREW, HEXAGON/FL D (M8X1.25X45)
    SCREW, HEXAGON/FL D (M8X1.25X45)
  • 27
    7555982 WASHER, RETAINING (8.5X28X3)
    WASHER, RETAINING (8.5X28X3)
  • 28
    2202145 GEAR SET, KIT
    GEAR SET, KIT
  • 29
    7721131 KEY WOOD RUFF (#404)
    KEY WOOD RUFF (#404)
  • 30
    7556183 WASHER SPRING (1.1X.559X.0315)
    WASHER SPRING (1.1X.559X.0315)
  • 31
    7517598 SCREW
    SCREW
  • 32
    5244286 PLATE THRUST
    PLATE THRUST
  • 33
    2202918 CAMSHAFT, KIT
    CAMSHAFT, KIT
