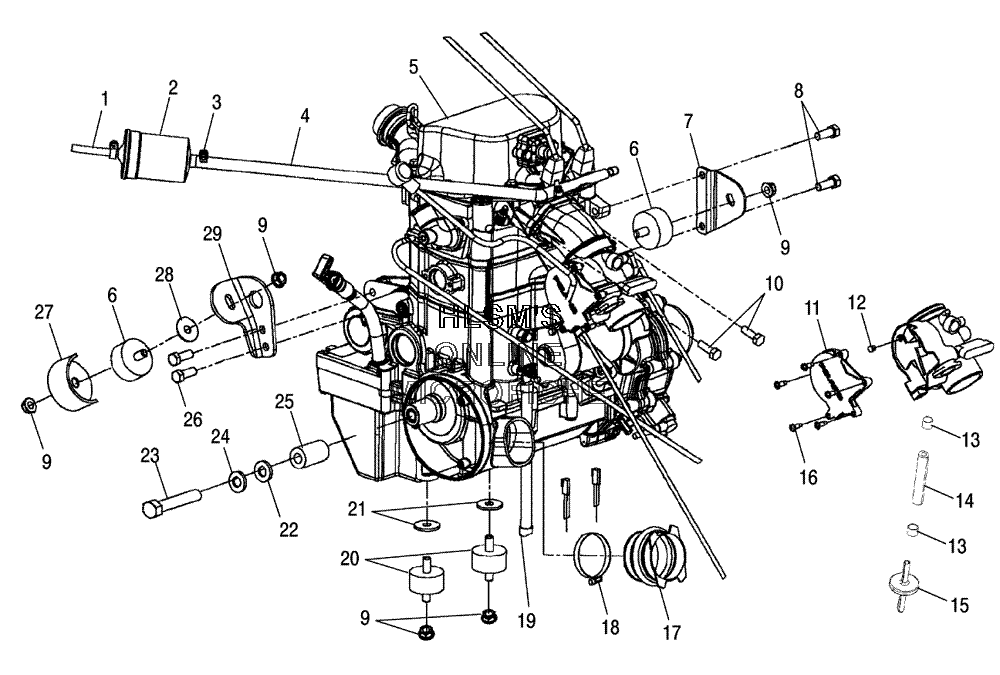

MOUNTING - ENGINE для Polaris SPORTSMAN 700 EFI (A05MH68AC) (N.B.U. SUB CAMO) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    8450044-58 HOSE
    HOSE
  • 2
    2520223 FILTER FUEL
    FILTER FUEL
  • 3
    7080417 CLAMP, HOSE (SCREW TYPE)
    CLAMP, HOSE (SCREW TYPE)
  • 4
    8450106 LINE FUEL
    LINE FUEL
  • 5
    2202856 SHORT BLOCK, KIT 700 EFI ATV (SEE NOTE)
    SHORT BLOCK, KIT 700 EFI ATV (SEE NOTE)
  • 6
    3110044 MOUNT, RUBBER (TOP)
    MOUNT, RUBBER (TOP)
  • 7
    5247368 BRACKET MOUNT, ENGINE TOP PLATED
    BRACKET MOUNT, ENGINE TOP PLATED
  • 8
    7516734 SCREW
    SCREW
  • 9
    7547104 NUT
    NUT
  • 10
    7516734 SCREW
    SCREW
  • 11
    1202578 COVER AND O-RING ASSY
    COVER AND O-RING ASSY
  • 12
    3131514 GUIDE, THROTTLE CABLE
    GUIDE, THROTTLE CABLE
  • 13
    7080236 CLAMP HOSE
    CLAMP HOSE
  • 14
    8350018-160 TUBING, ETHER ERETHNE (160CM)
    TUBING, ETHER ERETHNE (160CM)
  • 15
    7052038 VALVE, CHECK
    VALVE, CHECK
  • 16
    3131515 SCREW, SHOULDER
    SCREW, SHOULDER
  • 17
    5411944 BOOT CLUTCH INTAKE (2. 25I. D) (IF BUILT BEFORE 11/15/04)
    BOOT CLUTCH INTAKE (2. 25I. D) (IF BUILT BEFORE 11/15/04)
  • 17
    5412634 BOOT CLUTCH INTAKE (2. 25 I. D) (IF BUILT AFTER 11/15/04)
    BOOT CLUTCH INTAKE (2. 25 I. D) (IF BUILT AFTER 11/15/04)
  • 18
    7080451 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    4011139 CABLE COM (BLACK) (BATTERY/FRAME)
    CABLE COM (BLACK) (BATTERY/FRAME)
  • 20
    3021119 MOUNT, RUBBER (REAR) (60 DURO)
    MOUNT, RUBBER (REAR) (60 DURO)
  • 21
    7555815 WASHER, FLAT
    WASHER, FLAT
  • 22
    5210748 WASHER
    WASHER
  • 23
    7518197 BOLT (7/16X20X8)
    BOLT (7/16X20X8)
  • 24
    7575202 WASHER LOCK
    WASHER LOCK
  • 25
    5430261 BUSHING
    BUSHING
  • 26
    7518364 BOLT, HEXAGON FLANGE GR5 (3/8 16X7/8)
    BOLT, HEXAGON FLANGE GR5 (3/8 16X7/8)
  • 27
    5245043 BRACKET, TORQUE STOP PLATED
    BRACKET, TORQUE STOP PLATED
  • 28
    7555823 WASHER
    WASHER
