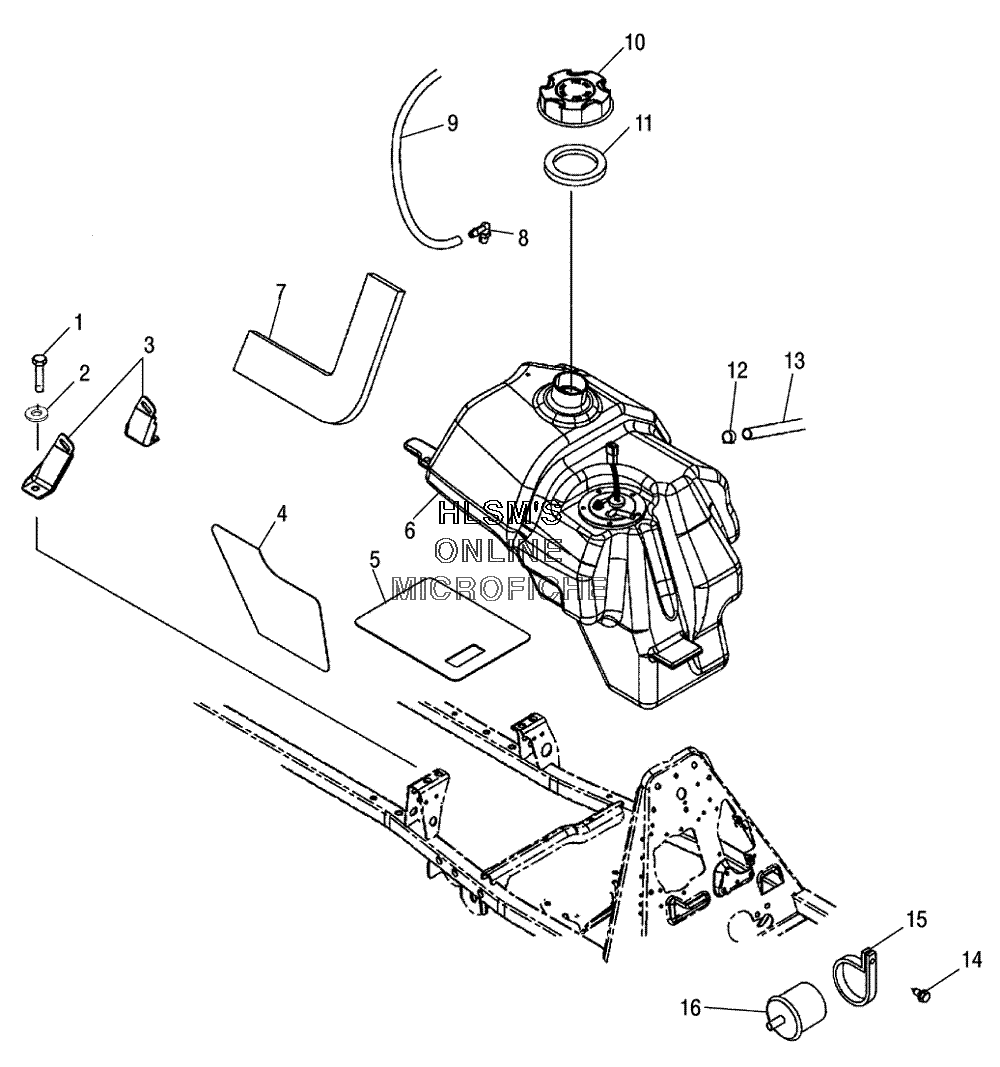

FUEL TANK для Polaris SPORTSMAN 700 EFI (A05MH68AC) (N.B.U. SUB CAMO) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7515179 SCREW
    SCREW
  • 2
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 3
    5247184 BRACKET, FUEL COVER MOUNT PLATED (LEFT)
    BRACKET, FUEL COVER MOUNT PLATED (LEFT)
  • 3
    5247185 BRACKET, FUEL COVER MOUNT PLATED (RIGHT)
    BRACKET, FUEL COVER MOUNT PLATED (RIGHT)
  • 4
    5812004 FOIL
    FOIL
  • 5
    5812005 FOIL (9. 5X7. 125)
    FOIL (9. 5X7. 125)
  • 6
    2520311 FUEL TANK W/FUEL (IF BUILT BEFORE 10/4/04)
    FUEL TANK W/FUEL (IF BUILT BEFORE 10/4/04)
  • 6
    2520461 FUEL TANK W/FUEL PUMP (IF BUILT AFTER 10/4/04)
    FUEL TANK W/FUEL PUMP (IF BUILT AFTER 10/4/04)
  • 7
    5812265 SEAL, FOAM (12 IN)
    SEAL, FOAM (12 IN)
  • 8
    5431053 VENT, TANK
    VENT, TANK
  • 9
    8360009-600 LINE, FUEL (1/8 ID) (600 CM)
    LINE, FUEL (1/8 ID) (600 CM)
  • 10
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 11
    5812123 GASKET
    GASKET
  • 12
    7080417 CLAMP, HOSE (SCREW TYPE)
    CLAMP, HOSE (SCREW TYPE)
  • 13
    8450044 FUEL LINE
    FUEL LINE
  • 14
    7517386 SCREW
    SCREW
  • 15
    7081129 CLAMP, FUEL FILTER
    CLAMP, FUEL FILTER
