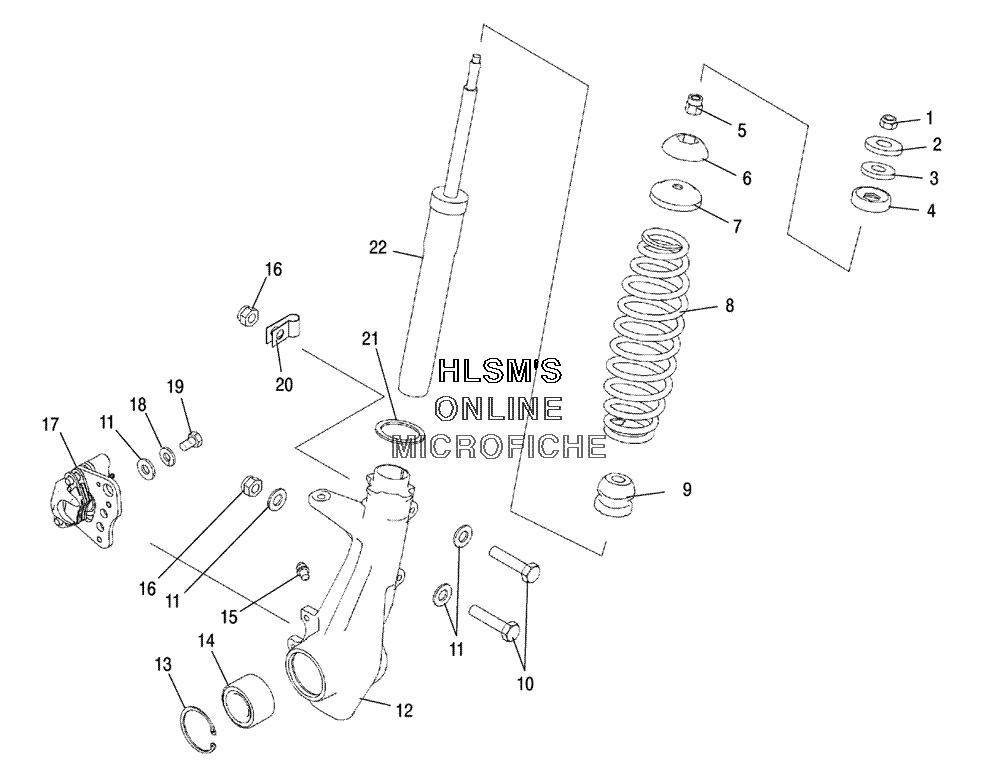

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 700 (A05MH68AK) (CAMO GREEN METALLIC) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7547104 NUT
    NUT
  • 2
    7555749 WASHER
    WASHER
  • 3
    5810291 SPACER RUBBER
    SPACER RUBBER
  • 4
    5432872 PIVOT BALL TOP
    PIVOT BALL TOP
  • 5
    5132062 SPACER
    SPACER
  • 6
    5432871 PIVOT BALL BOTTOM
    PIVOT BALL BOTTOM
  • 7
    5243364 RETAINER SPRING
    RETAINER SPRING
  • 8
    7042301-293 SPRING COMP
    SPRING COMP
  • 9
    5412665 BUMPER MCU (17.8MM ID)
    BUMPER MCU (17.8MM ID)
  • 10
    7515339 BOLT
    BOLT
  • 11
    7558402 WASHER FLAT
    WASHER FLAT
  • 12
    5134154 HUBSTRUT, VALVE ASSY. (LEFT)
    HUBSTRUT, VALVE ASSY. (LEFT)
  • 12
    5134155 HUBSTRUT, VALVE ASSY. (RIGHT)
    HUBSTRUT, VALVE ASSY. (RIGHT)
  • 13
    7710507 RING RET 2.500 INTERNAL
    RING RET 2.500 INTERNAL
  • 14
    3514342 BEARING, AXLE TUBE/HUBSTRUT
    BEARING, AXLE TUBE/HUBSTRUT
  • 15
    7080306 FITTING, LUBE WITH BALL CHECK
    FITTING, LUBE WITH BALL CHECK
  • 16
    7542324 NUT NYLOK
    NUT NYLOK
  • 18
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 19
    7512365 SCREW CAP
    SCREW CAP
  • 20
    7080367 CLAMP CABLE
    CLAMP CABLE
  • 21
    5211115 WASHER
    WASHER
  • 22
    7041762 STRUT (FRONT)
    STRUT (FRONT)
