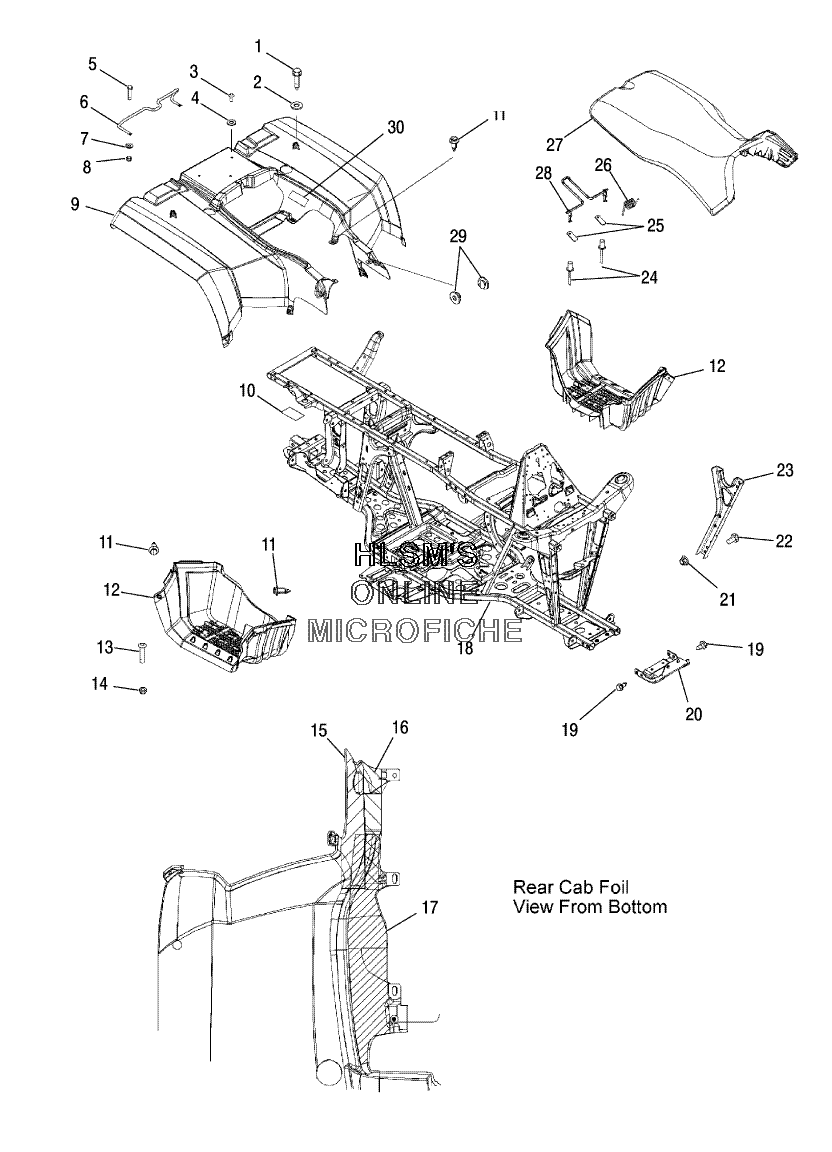

FENDER - REAR W/ SEAT для Polaris SPORTSMAN 700 (A05MH68AK) (CAMO GREEN METALLIC) - 2005 года выпуска`
-
№АртикулНазвание
-
17512095 SCREWSCREW
-
27555798 WASHERWASHER
-
37512026 SCREWSCREW
-
47556034 WASHERWASHER
-
55246076 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
67511930 SCREWSCREW
-
77555792 WASHERWASHER
-
87541925 NUT NYLOKNUT NYLOK
-
95435363-400 CAB (REAR/CAMO GREEN METALLIC)CAB (REAR/CAMO GREEN METALLIC)
-
107170509 DECAL, HITCHDECAL, HITCH
-
117661855 RIVET, TUFLOKRIVET, TUFLOK
-
125435354-070 FOOTWELL (LEFT/BLACK)FOOTWELL (LEFT/BLACK)
-
125435355-070 FOOTWELL (RIGHT/BLACK)FOOTWELL (RIGHT/BLACK)
-
137517230 SCREWSCREW
-
147542122 NUT, NYLOKNUT, NYLOK
-
155812703 FOIL, TOP CAB (REAR/FRONT)FOIL, TOP CAB (REAR/FRONT)
-
165812702 FOIL, BOTTOM CAB (REAR/FRONT)FOIL, BOTTOM CAB (REAR/FRONT)
-
175812701 FOIL CAB (REAR)FOIL CAB (REAR)
-
181014951-067 MAIN FRAME (BLACK)MAIN FRAME (BLACK)
-
197515399 SCREWSCREW
-
205245767-067 BUMPER BRACKET (LOWER/BLACK)BUMPER BRACKET (LOWER/BLACK)
-
217542153 NUT NYLOK FLANGEDNUT NYLOK FLANGED
-
227512283 SCREW SEMSSCREW SEMS
-
235244751-067 BRACE, SUPPORT FRAME (FRONT/LEFT/BLACK)BRACE, SUPPORT FRAME (FRONT/LEFT/BLACK)
-
247621403 BLIND RIVETBLIND RIVET
-
255211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
267041370 SPRING LATCHSPRING LATCH
-
272683433-070 SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
272683434-070 COVERING SEAT (BLACK)COVERING SEAT (BLACK)
-
281040387 LATCH SEATLATCH SEAT
-
295412623 GROMMET, RUBBER MOUNTGROMMET, RUBBER MOUNT
-
307172922 DECAL, FILTER CLEANINGDECAL, FILTER CLEANING
