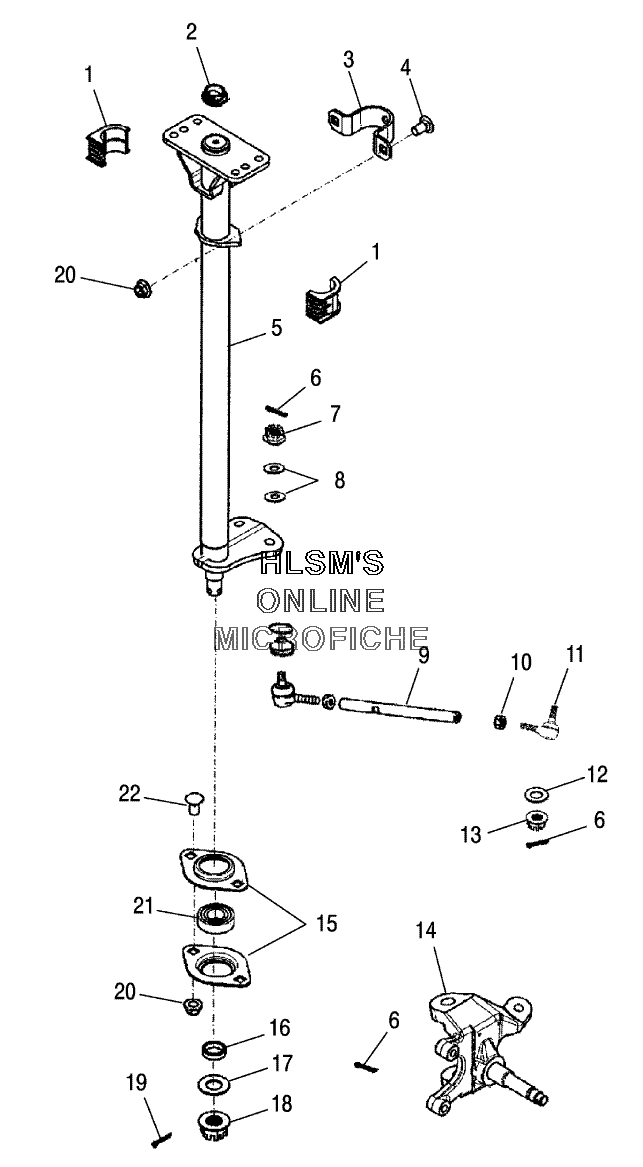

STEERING POST для Polaris PHOENIX 200 (A05PB20AB) (SONIC BLUE) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0452709 BUSHING STEERING (UPPER)
    BUSHING STEERING (UPPER)
  • 2
    0452704 CAP RUBBER, STEERING POST
    CAP RUBBER, STEERING POST
  • 3
    0452713 BRKT BUSHING (UPPER)
    BRKT BUSHING (UPPER)
  • 4
    0452716 BOLT CARRIAGE
    BOLT CARRIAGE
  • 5
    0452703 POST STEERING
    POST STEERING
  • 6
    0450719 PIN COTTER
    PIN COTTER
  • 7
    0450502 NUT LOCK
    NUT LOCK
  • 8
    0450279 WASHER
    WASHER
  • 9
    0452783 TIE ROD ASSY (INCL. RING AND GROMMET)
    TIE ROD ASSY (INCL. RING AND GROMMET)
  • 10
    7542432 NUT, JAM
    NUT, JAM
  • 11
    7061113 ROD END (3/8 24) (RIGHT)
    ROD END (3/8 24) (RIGHT)
  • 12
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 13
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 14
    1822643 STEERING KNUCKLE ASSY (LEFT)
    STEERING KNUCKLE ASSY (LEFT)
  • 14
    1822644 STEERING KNUCKLE ASSY (RIGHT)
    STEERING KNUCKLE ASSY (RIGHT)
  • 15
    0452707 FLANGETTE TWO BOLT
    FLANGETTE TWO BOLT
  • 16
    0452719 SPACER RING
    SPACER RING
  • 17
    0452671 WASHER (18X35X2.0)
    WASHER (18X35X2.0)
  • 18
    0452669 NUT CASTLE
    NUT CASTLE
  • 19
    0450395 PIN COTTER
    PIN COTTER
  • 20
    0450882 NUT LOCK, NYLON (90350 10000 UC)
    NUT LOCK, NYLON (90350 10000 UC)
  • 21
    0450261 BEARING BALL
    BEARING BALL
  • 22
    0452776 CARRIAGE, BOLT
    CARRIAGE, BOLT
