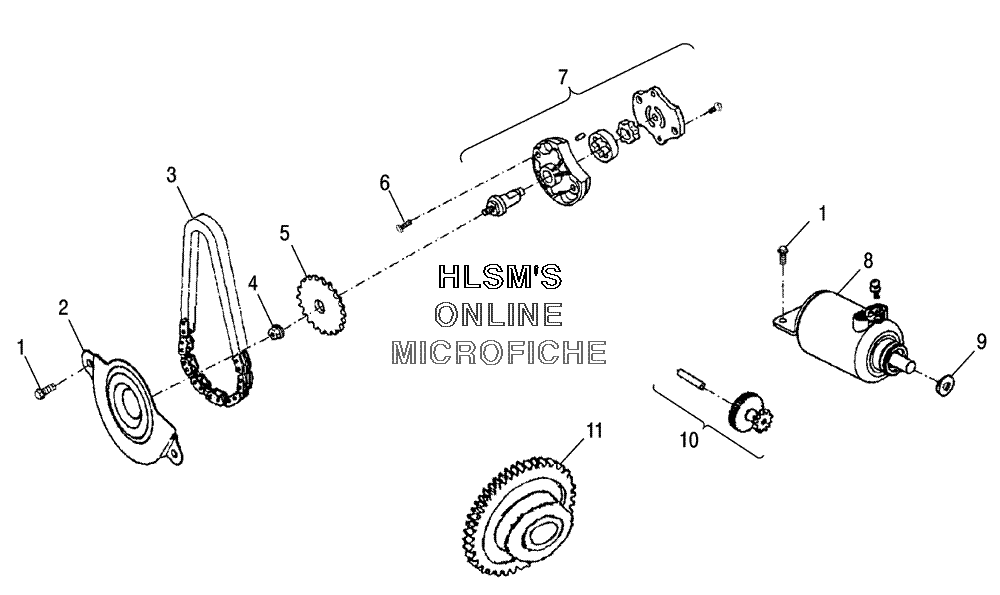

STARTING MOTOR /W GENERATOR для Polaris PHOENIX 200 (A05PB20AB) (SONIC BLUE) - 2005 года выпуска
-
№АртикулНазвание
-
10452330 BOLT HEXAGON, FLANGEBOLT HEXAGON, FLANGE
-
20452506 COVER OIL PUMPCOVER OIL PUMP
-
30452505 CHAIN OIL PUMPCHAIN OIL PUMP
-
40450880 NUT FLANGE W/SERRNUT FLANGE W/SERR
-
50452504 SPROCKET OIL PUMPSPROCKET OIL PUMP
-
60452511 SCREWSCREW
-
70452503 PUMP OILPUMP OIL
-
80452509 MOTOR STARTMOTOR START
-
90452510 O-RINGO-RING
-
100452507 GEAR ASSY, STARTERGEAR ASSY, STARTER
-
110452508 GEAR, COMP STARTING CLUTCHGEAR, COMP STARTING CLUTCH
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - FRONT AND REAR CALIPER
- BRAKE - REAR
- BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY.
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CRANKCASE
- CRANKCASE COVER - LEFT
- CRANKCASE COVER - RIGHT
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- DECALS
- DRIVE - REAR
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - REAR W/ SEAT
- FRAME
- FUEL TANK
- HANDLEBAR
- HEADLIGHT / BRAKELIGHT
- • STARTING MOTOR /W GENERATOR
- STEERING POST
- SUSPENSION
- SUSPENSION - REAR SWING ARM
- SUSPENSION - SWING ARM W/ FOOTREST
- TRANSMISSION - SHIFTER ASSY.
- WHEEL - FRONT
- WHEEL - REAR
- WHEEL - REAR W/ AXLE
