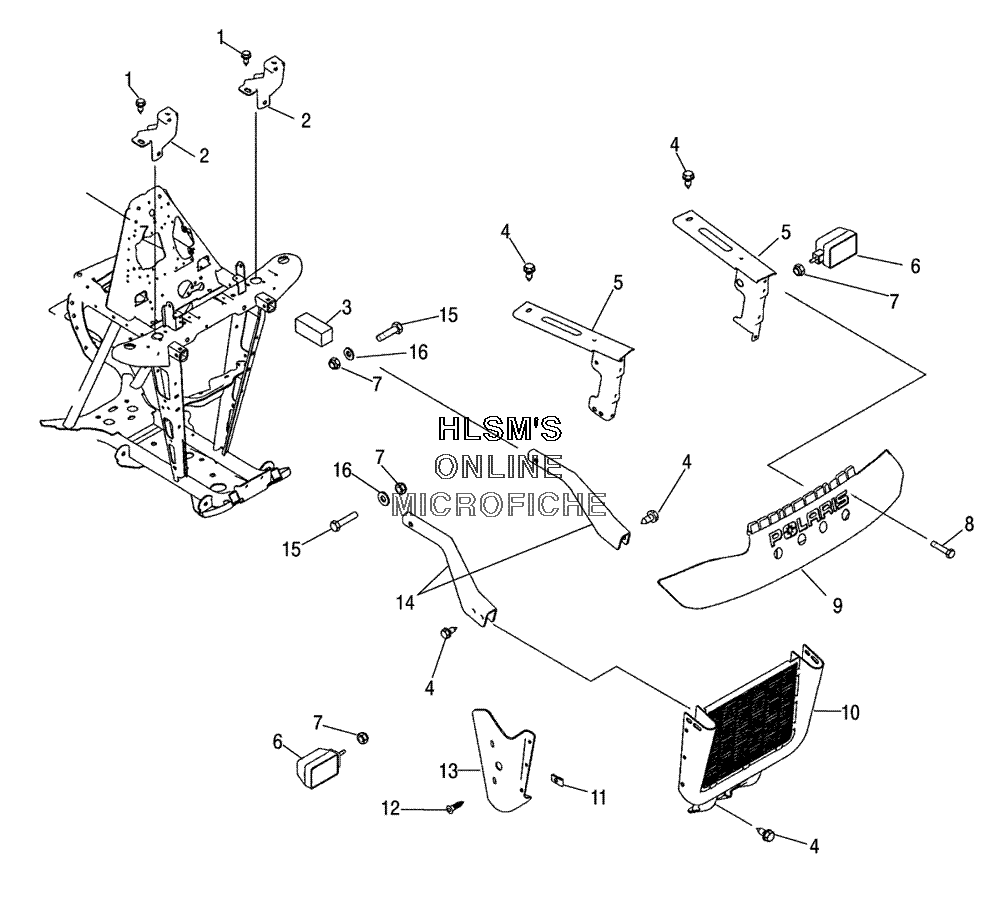

RACK AND BUMPER MOUNTING - FRONT для Polaris MAGNUM 330 4X4 (A05CD32AA) (SILVER METALLIC) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7512232 BOLT
    BOLT
  • 2
    1013744-067 WELD SUPPORT RACK (FRONT/LEFT/BLACK)
    WELD SUPPORT RACK (FRONT/LEFT/BLACK)
  • 2
    1013746-067 WELD SUPPORT RACK (FRONT/RIGHT/BLACK)
    WELD SUPPORT RACK (FRONT/RIGHT/BLACK)
  • 3
    5810467 PLUG FRAME
    PLUG FRAME
  • 4
    7515399 SCREW
    SCREW
  • 5
    1014099-067 WELD RACK MOUNT (LEFT/BLACK)
    WELD RACK MOUNT (LEFT/BLACK)
  • 5
    1014101-067 WELD RACK MOUNT (RIGHT/BLACK)
    WELD RACK MOUNT (RIGHT/BLACK)
  • 6
    2431011 HEADLIGHT 30/30W SIDE MOUNT ASSY
    HEADLIGHT 30/30W SIDE MOUNT ASSY
  • 6
    2431012 HEADLIGHT 30/30W SIDE MOUNT ASSY
    HEADLIGHT 30/30W SIDE MOUNT ASSY
  • 6
    4030061 BULB
    BULB
  • 7
    7542324 NUT NYLOK
    NUT NYLOK
  • 8
    7517977 BOLT
    BOLT
  • 9
    5432155-070 BUMPER (BLACK)
    BUMPER (BLACK)
  • 10
    1013772-067 WELD BRUSH GUARD (BLACK)
    WELD BRUSH GUARD (BLACK)
  • 11
    7670094 NUT
    NUT
  • 12
    7512097 SCREW
    SCREW
  • 13
    5433923 SHIELD RADIATOR SIDE (LEFT)
    SHIELD RADIATOR SIDE (LEFT)
  • 13
    5433924 SHIELD RADIATOR SIDE (RIGHT)
    SHIELD RADIATOR SIDE (RIGHT)
  • 14
    5244729-067 EXTENSION FRAME (LEFT/BLACK)
    EXTENSION FRAME (LEFT/BLACK)
  • 14
    5244730-067 EXTENSION FRAME (RIGHT/BLACK)
    EXTENSION FRAME (RIGHT/BLACK)
  • 15
    7512329 BOLT
    BOLT
  • 16
    7558402 WASHER, FLAT
    WASHER, FLAT
