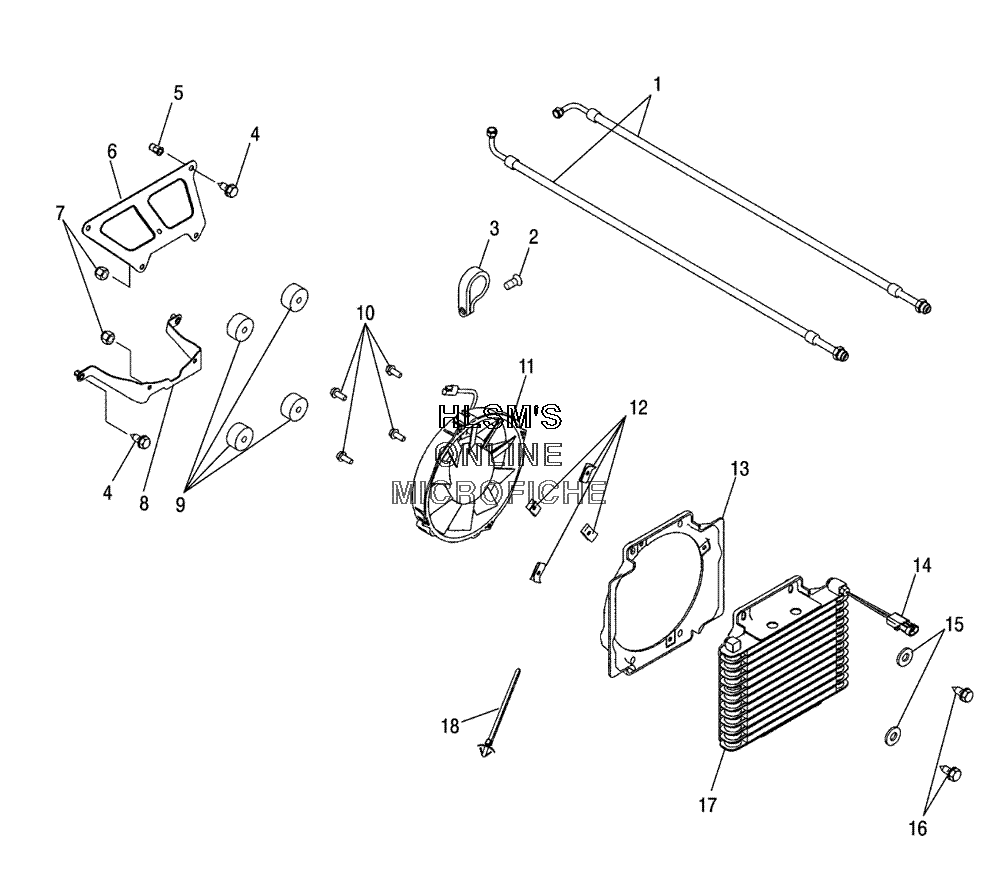

OIL COOLING SYSTEM для Polaris MAGNUM 330 4X4 (A05CD32AA) (SILVER METALLIC) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    5412355 HOSE COOLER THREADED 90Ш
    HOSE COOLER THREADED 90Ш
  • 2
    7512084 SCREW
    SCREW
  • 3
    7080851 CLAMP HOSE (1.312 VINYL COATED)
    CLAMP HOSE (1.312 VINYL COATED)
  • 4
    7515133 SCREW
    SCREW
  • 5
    7547069 NUTSERT HEXAGON
    NUTSERT HEXAGON
  • 6
    5245416-067 BRACKET OIL COOLER TOP (BLACK)
    BRACKET OIL COOLER TOP (BLACK)
  • 7
    7542122 NUT NYLOK
    NUT NYLOK
  • 8
    5248139 BRACKET (LOWER)
    BRACKET (LOWER)
  • 8
    7542130 RIVNUT
    RIVNUT
  • 9
    7555932 WASHER NYLON
    WASHER NYLON
  • 10
    7517659 SCREW
    SCREW
  • 11
    2410534 FAN MOTOR ASSY
    FAN MOTOR ASSY
  • 12
    7670111 CLIP U
    CLIP U
  • 13
    5433353 SHROUD FAN
    SHROUD FAN
  • 14
    4010934 THERMISTER
    THERMISTER
  • 15
    7558301 WASHER FLAT
    WASHER FLAT
  • 16
    7512240 BOLT (IF BUILT BEFORE 2/21/04)
    BOLT (IF BUILT BEFORE 2/21/04)
  • 16
    7512163 BOLT (IF BUILT AFTER 2/21/04)
    BOLT (IF BUILT AFTER 2/21/04)
  • 17
    1240191 COOLER OIL
    COOLER OIL
  • 18
    7080999 TIE, CABLE PRESS MOUNT (BLACK)
    TIE, CABLE PRESS MOUNT (BLACK)
