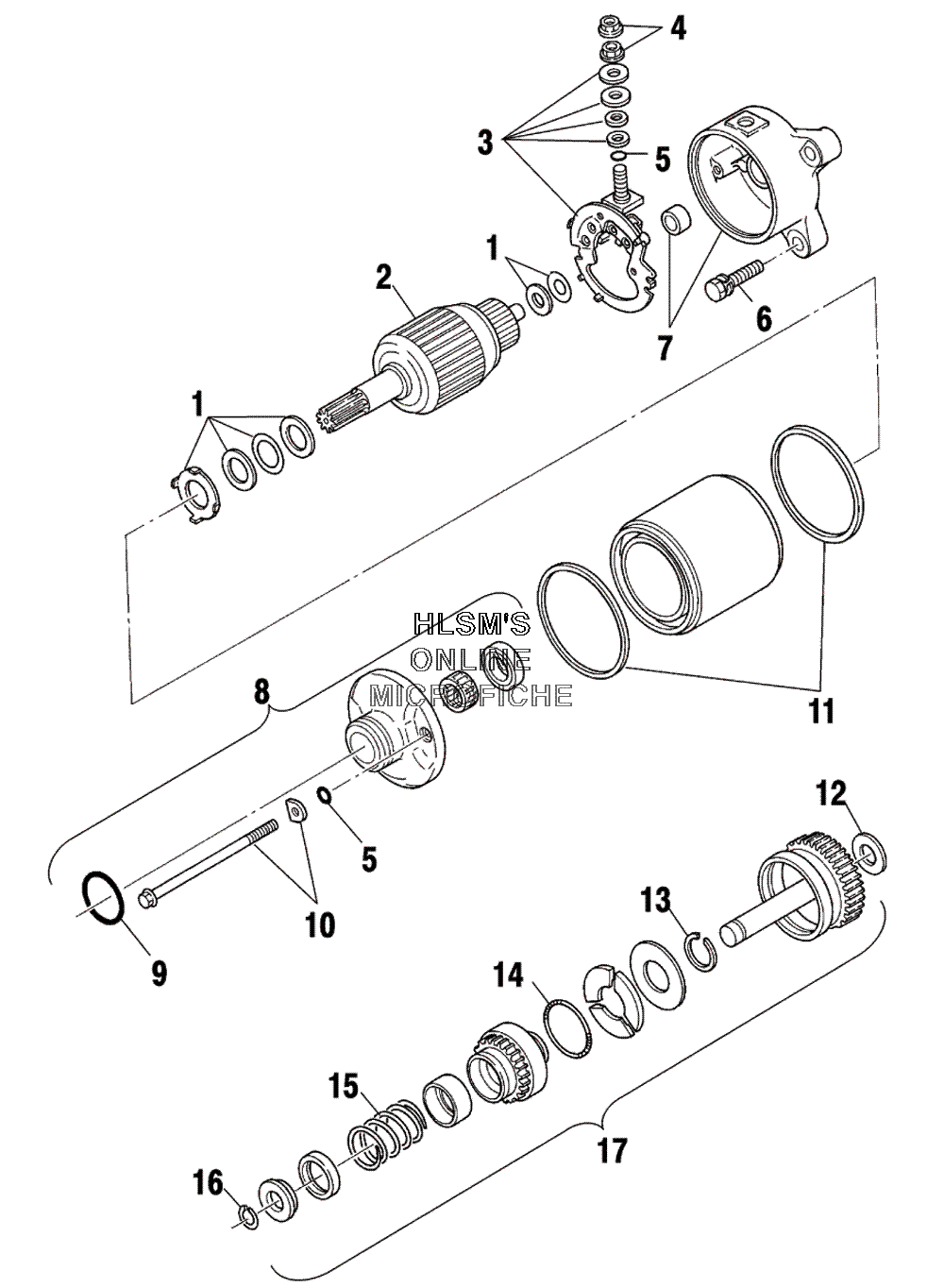

STARTING MOTOR для Polaris TRAIL BOSS 330 (A04CA32FA) (SONIC BLUE) (CANADA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3088163 WASHER, SET
    WASHER, SET
  • 2
    3089168 ARMATURE ASSY.
    ARMATURE ASSY.
  • 3
    3088169 CARBON BRUSH SET
    CARBON BRUSH SET
  • 4
    3088166 NUT, FLANGE
    NUT, FLANGE
  • 5
    3088165 O-RING
    O-RING
  • 6
    3082038 BOLT AND WASHER ASSY
    BOLT AND WASHER ASSY
  • 7
    3085034 COVER, ASSY (REAR)
    COVER, ASSY (REAR)
  • 8
    3088160 BRACKET, ASSY (FRONT) (INCL. 9)
    BRACKET, ASSY (FRONT) (INCL. 9)
  • 9
    3088161 O-RING
    O-RING
  • 10
    3088164 BOLT SET, ASSY (INCL. 5)
    BOLT SET, ASSY (INCL. 5)
  • 11
    3088162 RING, RUBBER
    RING, RUBBER
  • 12
    3083737 WASHER
    WASHER
  • 13
    3084412 CLIP
    CLIP
  • 14
    3084411 SPRING, WEIGHT
    SPRING, WEIGHT
  • 15
    3084410 SPRING, RETURN
    SPRING, RETURN
  • 16
    3084409 CLIP
    CLIP
  • 17
    3089255 GEAR SHAFT, ASSY (INCL. 13-16)
    GEAR SHAFT, ASSY (INCL. 13-16)
  • 17
    3084981 MOTOR, STARTING ASSY (INCL. 1 5, 7-11)
    MOTOR, STARTING ASSY (INCL. 1 5, 7-11)
