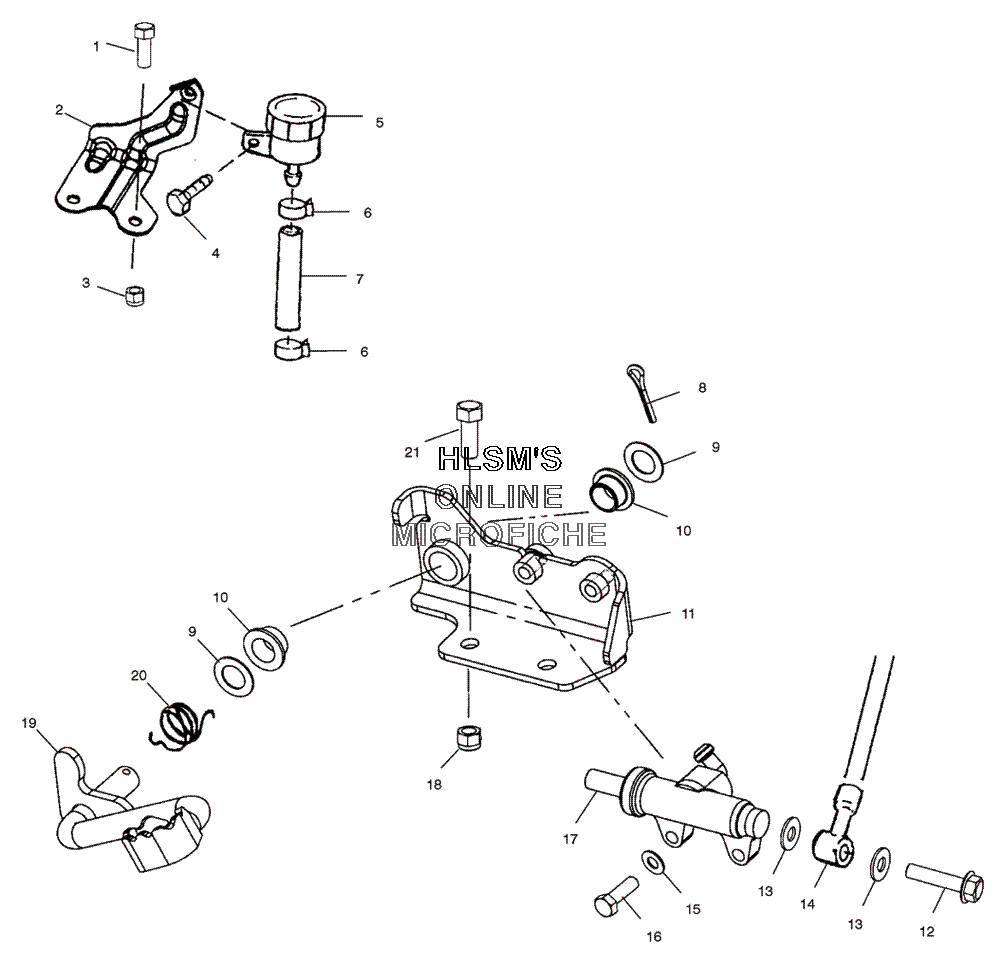

BRAKE - REAR MASTER CYLINDER для Polaris TRAIL BOSS 330 (A04CA32FA) (SONIC BLUE) (CANADA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7512113 BOLT
    BOLT
  • 2
    5246010-067 BRACKET RESERVIOR MOUNT BK (IF BUILT BEFORE 8/01/03)
    BRACKET RESERVIOR MOUNT BK (IF BUILT BEFORE 8/01/03)
  • 2
    5247808-067 BRACKET RESERVOIR MOUNT BK (IF BUILT AFTER 8/01/03)
    BRACKET RESERVOIR MOUNT BK (IF BUILT AFTER 8/01/03)
  • 3
    7542122 NUT NYLOK
    NUT NYLOK
  • 4
    7517386 SCREW
    SCREW
  • 5
    1930854 RESERVOIR ASSY, BRAKE (REAR)
    RESERVOIR ASSY, BRAKE (REAR)
  • 6
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    1910438 HOSE, RES. (1/4 ID, 5.78 LG)
    HOSE, RES. (1/4 ID, 5.78 LG)
  • 8
    7661401 PIN, COTTER
    PIN, COTTER
  • 9
    7555919 WASHER
    WASHER
  • 10
    5433189 BUSHING PEDAL PIVOT
    BUSHING PEDAL PIVOT
  • 11
    1910375-067 MOUNT, BRAKE CDS (BLACK) (IF BUILT BEFORE 12/01/02)
    MOUNT, BRAKE CDS (BLACK) (IF BUILT BEFORE 12/01/02)
  • 12
    1910499 BOLT BANJO (10MMX1.00)
    BOLT BANJO (10MMX1.00)
  • 13
    5410988 SEAL
    SEAL
  • 15
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 16
    7515179 SCREW
    SCREW
  • 17
    1910311 BRAKE, MASTER CYLINDER ASSY FOOT BANJO
    BRAKE, MASTER CYLINDER ASSY FOOT BANJO
  • 18
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 19
    1910376-067 BRAKE ROD, CDS GEN 4 (BLACK)
    BRAKE ROD, CDS GEN 4 (BLACK)
  • 20
    7041750 SPRING, TORSION
    SPRING, TORSION
  • 21
    7515321 BOLT
    BOLT
