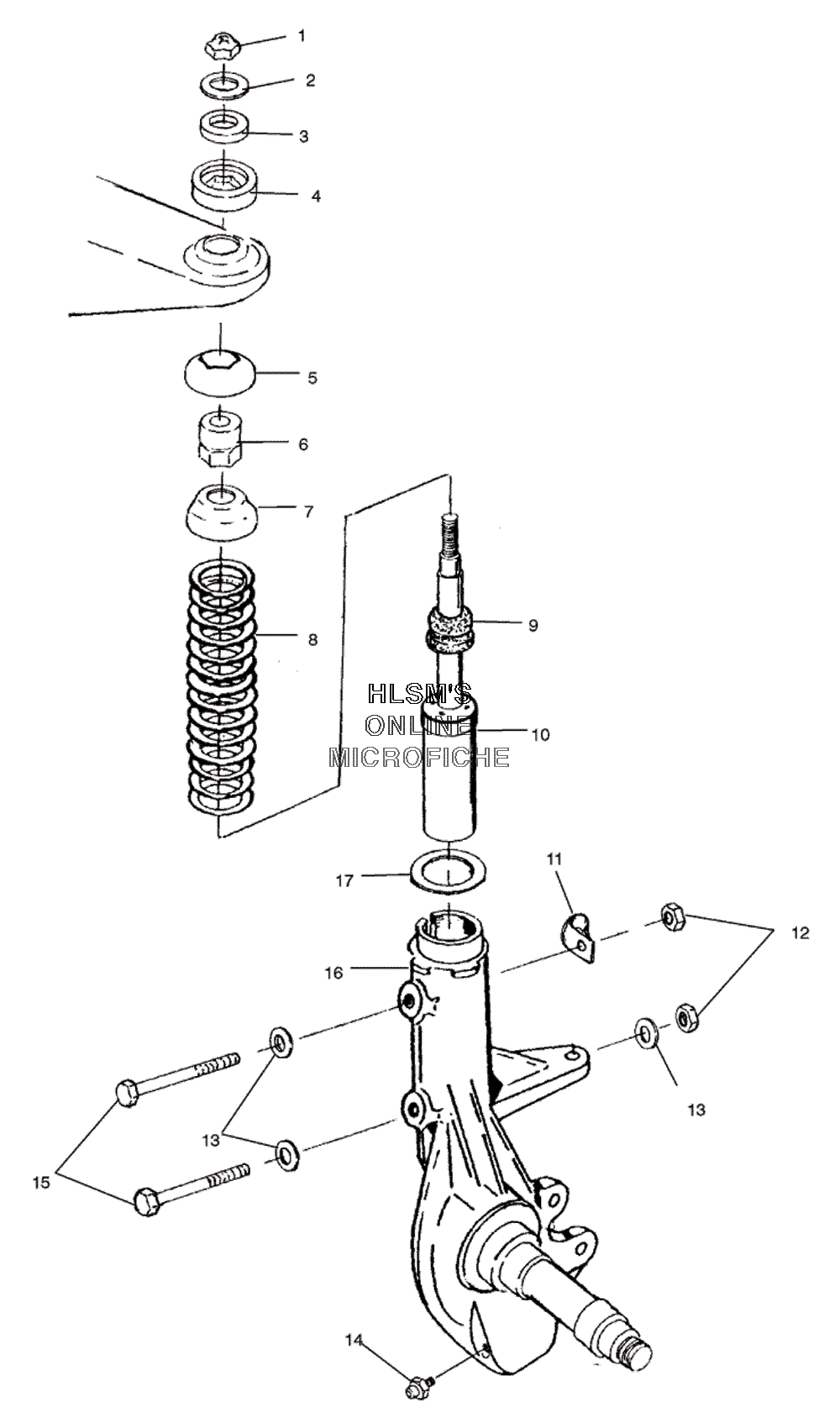

SUSPENSION - FRONT STRUT для Polaris TRAIL BOSS 330 (A04CA32AB) (BLACK) (USA) - 2004 года выпуска`
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL (TOP)PIVOT, BALL (TOP)
-
55432871 PIVOT, BALL (BOTTOM)PIVOT, BALL (BOTTOM)
-
65132062 SPACER 1/2 20SPACER 1/2 20
-
75243364 RETAINER SPRINGRETAINER SPRING
-
87041850-067 SPRING COMP, 41#/IN (BLACK)SPRING COMP, 41#/IN (BLACK)
-
95411608 BUMPERBUMPER
-
107041761 STRUT (FRONT)STRUT (FRONT)
-
117080367 CLAMP, CABLECLAMP, CABLE
-
127542324 NUT, NYLOKNUT, NYLOK
-
137558402 WASHER, FLATWASHER, FLAT
-
147080306 FITTING, LUBE. W/BALL CHECKFITTING, LUBE. W/BALL CHECK
-
157515339 BOLTBOLT
-
165131039 SUPPORT STRUT/SPINDLE (LEFT)SUPPORT STRUT/SPINDLE (LEFT)
-
165131040 SUPPORT STRUT/SPINDLE (RIGHT)SUPPORT STRUT/SPINDLE (RIGHT)
-
175211115 WASHERWASHER
