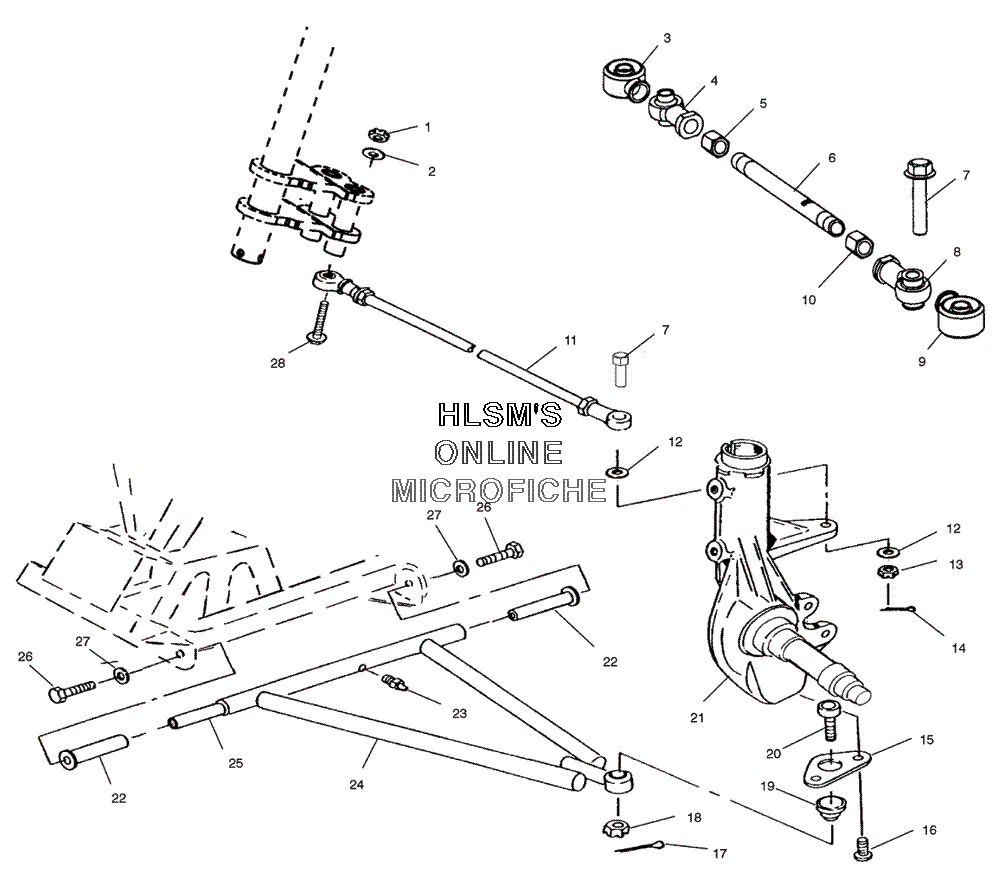

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris TRAIL BOSS 330 (A04CA32AB) (BLACK) (USA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7542403 NUT LOCK
    NUT LOCK
  • 2
    7558403 WASHER, WROUGHT
    WASHER, WROUGHT
  • 3
    5411291 SEAL, BOOT ROD END (1/2")
    SEAL, BOOT ROD END (1/2")
  • 4
    7061034 ROD END (RIGHT)
    ROD END (RIGHT)
  • 5
    7542711 NUT JAM
    NUT JAM
  • 6
    5020927 ROD, TIE
    ROD, TIE
  • 7
    7517909 BOLT, HEXAGON WASHER HEAD
    BOLT, HEXAGON WASHER HEAD
  • 8
    7061054 ROD, END (10MM) (42 DEG) (LEFT)
    ROD, END (10MM) (42 DEG) (LEFT)
  • 9
    5411920 BOOT, SEAL ROD END (10MM)
    BOOT, SEAL ROD END (10MM)
  • 10
    7547028 NUT, JAM (LEFT)
    NUT, JAM (LEFT)
  • 11
    1820806 TIE, ROD ASSY (INCL. 3 8)
    TIE, ROD ASSY (INCL. 3 8)
  • 12
    7556099 WASHER
    WASHER
  • 13
    7547177 NUT HEXAGON LOCK Y
    NUT HEXAGON LOCK Y
  • 14
    7661407 COTTER PIN
    COTTER PIN
  • 15
    5240717 BRACKET, BALLJOINT
    BRACKET, BALLJOINT
  • 16
    7512284 BOLT, SOCKET
    BOLT, SOCKET
  • 17
    7661203 PIN, COTTER
    PIN, COTTER
  • 18
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 19
    5410548 BOOT, RUBBER
    BOOT, RUBBER
  • 20
    7080927 BALL JOINT (52 DEG)
    BALL JOINT (52 DEG)
  • 22
    5434551 BUSHING A ARM, LONG (BLACK)
    BUSHING A ARM, LONG (BLACK)
  • 23
    7080433 FITTING, LUBRICATION THREADED
    FITTING, LUBRICATION THREADED
  • 24
    2202278 A FRAME, KIT (LEFT) (1541872) (INCL. 22, 23, 26, 27)
    A FRAME, KIT (LEFT) (1541872) (INCL. 22, 23, 26, 27)
  • 24
    2202279 A FRAME, KIT (RIGHT) (1541873) (INCL. 22, 23, 26, 27)
    A FRAME, KIT (RIGHT) (1541873) (INCL. 22, 23, 26, 27)
  • 25
    5133806 SHAFT A ARM
    SHAFT A ARM
  • 26
    7512492 SCREW
    SCREW
  • 27
    7555832 WASHER
    WASHER
  • 28
    7518033 BOLT SPECIAL FLANGE Y
    BOLT SPECIAL FLANGE Y
