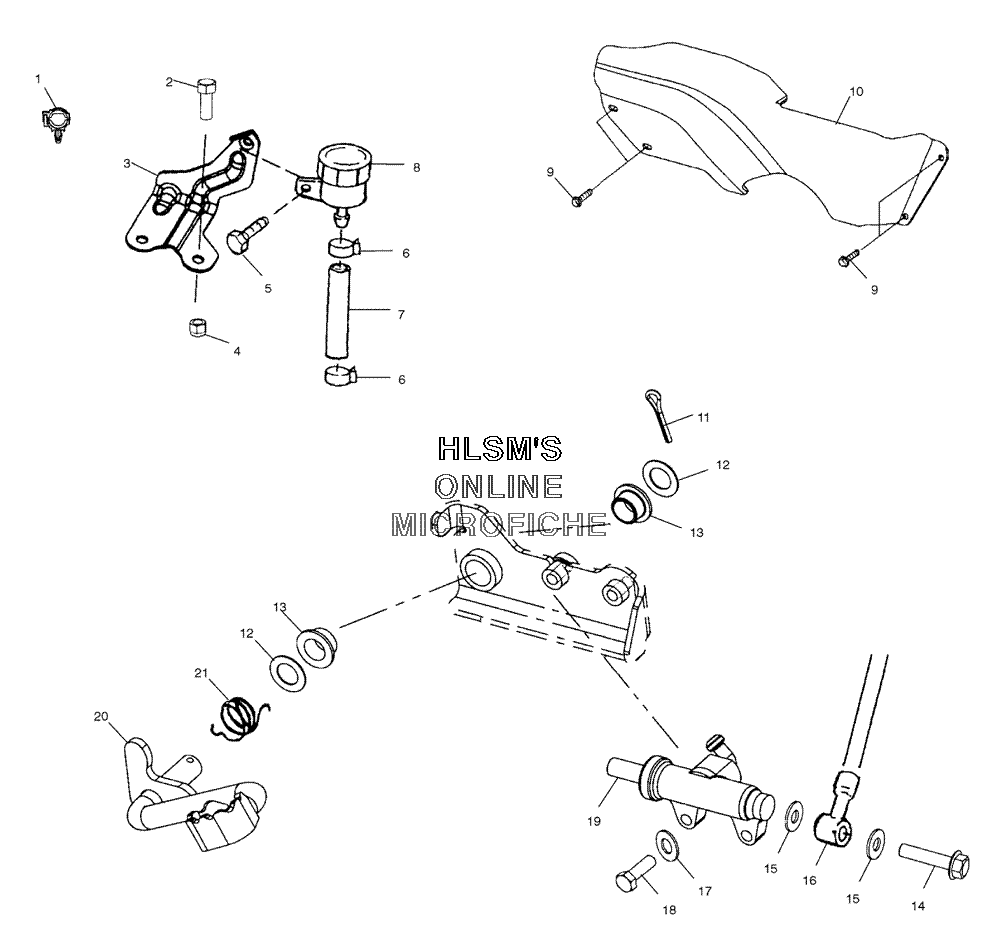

BRAKE - REAR MASTER CYLINDER для Polaris TRAIL BLAZER (A04BA25CB) (BLAZING RED) - 2004 года выпуска`
-
№АртикулНазвание
-
17670102 CLIPCLIP
-
27512113 BOLTBOLT
-
35244091-067 BRACKET, RESERVOIR MOUNT (BLACK)BRACKET, RESERVOIR MOUNT (BLACK)
-
47542122 NUT NYLOKNUT NYLOK
-
57517386 SCREWSCREW
-
67080003 CLAMP, HOSECLAMP, HOSE
-
71910404 HOSE, RESERVOIR (1/4ID/4.75")HOSE, RESERVOIR (1/4ID/4.75")
-
81930854 RESERVOIR ASSY, BRAKE (REAR)RESERVOIR ASSY, BRAKE (REAR)
-
97517916 SCREWSCREW
-
105433457 GUARD, PROP SHAFT SIDEGUARD, PROP SHAFT SIDE
-
117661401 PIN, COTTERPIN, COTTER
-
127555919 WASHERWASHER
-
135433189 BUSHING PEDAL PIVOTBUSHING PEDAL PIVOT
-
141910499 BOLT BANJO (10MMX1.00)BOLT BANJO (10MMX1.00)
-
155410988 SEALSEAL
-
177552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
187515179 SCREWSCREW
-
191910311 BRAKE ASSY, MASTER CYLINDER BANJOBRAKE ASSY, MASTER CYLINDER BANJO
-
201910377-067 BRAKE ROD, CDS GEN 3 (BLACK)BRAKE ROD, CDS GEN 3 (BLACK)
-
217041750 SPRING, TORSIONSPRING, TORSION
