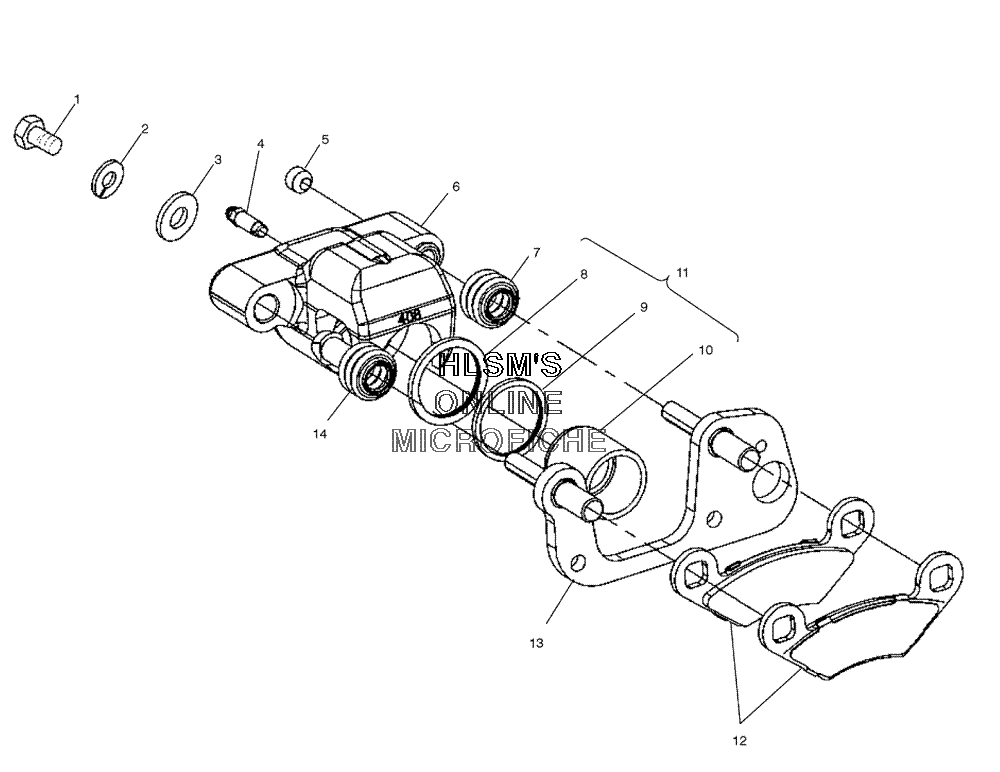

BRAKE - FRONT для Polaris TRAIL BLAZER (A04BA25CB) (BLAZING RED) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7512365 SCREW, CAP
    SCREW, CAP
  • 2
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 4
    7080352 SCREW, BLEEDER
    SCREW, BLEEDER
  • 5
    7515489 SCREW, SOC SET-Y
    SCREW, SOC SET-Y
  • 6
    5133407 CALIPER BRAKE (1 3/16 MACH) (LEFT)
    CALIPER BRAKE (1 3/16 MACH) (LEFT)
  • 6
    5133408 CALIPER BRAKE (1 3/16 MACH) (RIGHT)
    CALIPER BRAKE (1 3/16 MACH) (RIGHT)
  • 7
    5410494 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 8
    5410779 RING, SQUARE MOLDED (.094)
    RING, SQUARE MOLDED (.094)
  • 9
    5410780 RING, SQUARE MOLDED (.103X.134)
    RING, SQUARE MOLDED (.103X.134)
  • 10
    5132294 PISTON AND SEAL KIT
    PISTON AND SEAL KIT
  • 11
    1930665 PISTON AND SEAL KIT (INCL. 8 10)
    PISTON AND SEAL KIT (INCL. 8 10)
  • 12
    2202412 BRAKE PAD ASSY KIT (FRONT)
    BRAKE PAD ASSY KIT (FRONT)
  • 13
    1910412 MOUNT ASSY, CALIPER
    MOUNT ASSY, CALIPER
  • 14
    5410495 BOOT, BUSHING
    BOOT, BUSHING
  • 14
    1910695 CALIPER ASSY, BRAKE (LEFT) (1 3/16, 7") (INCL. 4-7)
    CALIPER ASSY, BRAKE (LEFT) (1 3/16, 7") (INCL. 4-7)
  • 14
    1910696 CALIPER ASSY, BRAKE (RIGHT) (1 3/16, 7") (INCL. 4-7)
    CALIPER ASSY, BRAKE (RIGHT) (1 3/16, 7") (INCL. 4-7)
  • 14
    1930642 BOOT KIT, BRAKE (INCL. 7, 14)
    BOOT KIT, BRAKE (INCL. 7, 14)
