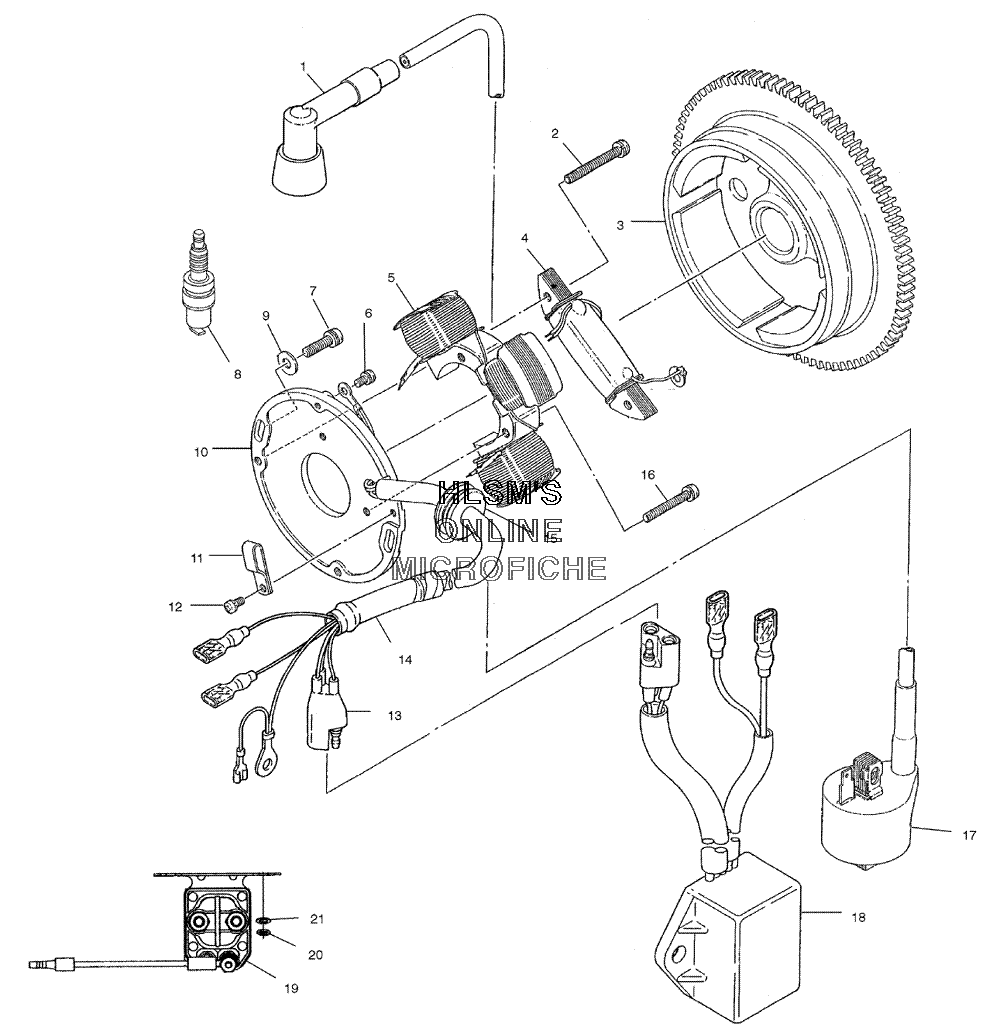

MAGNETO для Polaris TRAIL BLAZER (A04BA25CA) (SONIC BLUE MET.) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    4020129 RESISTOR PLUG CAP
    RESISTOR PLUG CAP
  • 2
    3083423 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 3
    3083939 FLYWHEEL, W/RING GEAR
    FLYWHEEL, W/RING GEAR
  • 4
    3083422 COIL, EXCITING
    COIL, EXCITING
  • 5
    3083976 COIL, LIGHT (STATOR 1)
    COIL, LIGHT (STATOR 1)
  • 6
    3081256 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 7
    3086788 SCREW AND WASHER
    SCREW AND WASHER
  • 8
    3089277 PLUG, SPARK
    PLUG, SPARK
  • 9
    3086789 WASHER
    WASHER
  • 10
    3083979 PLATE ASSY (INCL. 2, 4, 5, 6, 10-16)
    PLATE ASSY (INCL. 2, 4, 5, 6, 10-16)
  • 10
    3083634 PLATE, COIL
    PLATE, COIL
  • 11
    3081296 CLAMP
    CLAMP
  • 12
    3081260 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 13
    3083909 COUPLER
    COUPLER
  • 14
    3083978 HARNESS, WIRE (INCL. 13, 15)
    HARNESS, WIRE (INCL. 13, 15)
  • 15
    3083773 GROMMET
    GROMMET
  • 16
    3083736 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 17
    3083923 COIL, IGNITION
    COIL, IGNITION
  • 18
    3083977 CDI UNIT
    CDI UNIT
  • 19
    4010930 SWITCH MAGNETIC
    SWITCH MAGNETIC
  • 20
    7542105 NUT HEX
    NUT HEX
  • 21
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
