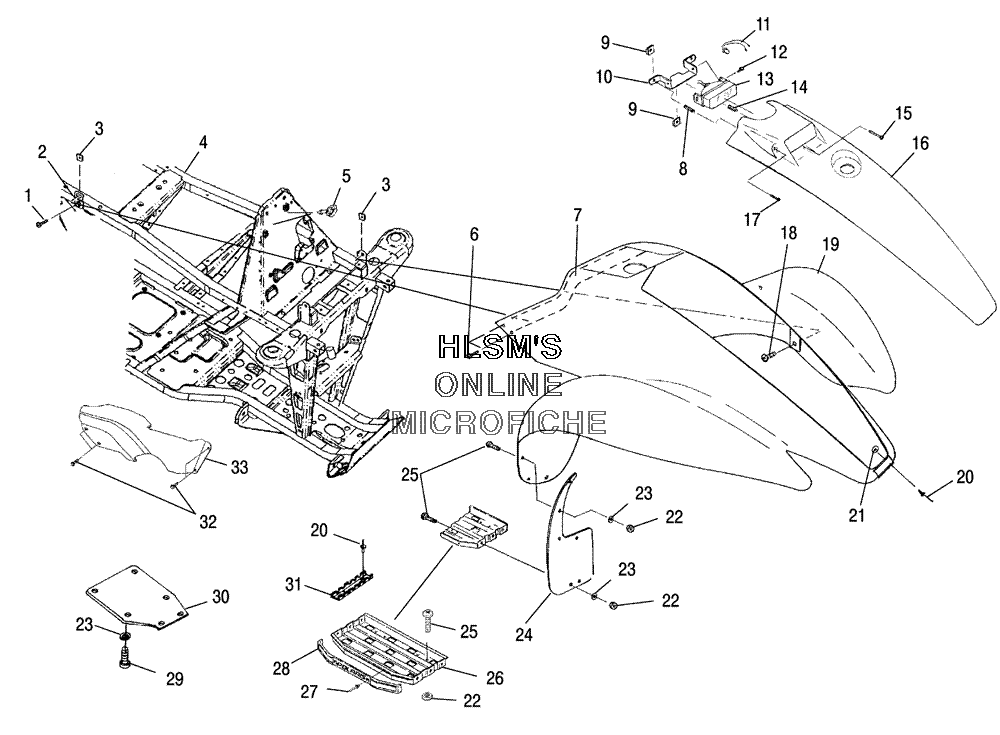

FENDER - FRONT для Polaris TRAIL BLAZER (A04BA25CA) (SONIC BLUE MET.) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7517386 SCREW
    SCREW
  • 2
    5244482-067 BRACKET CAB MOUNT (LEFT/BLACK)
    BRACKET CAB MOUNT (LEFT/BLACK)
  • 2
    5244483-067 BRACKET CAB MOUNT (RIGHT/BLACK)
    BRACKET CAB MOUNT (RIGHT/BLACK)
  • 3
    7670057 NUT, SPEED
    NUT, SPEED
  • 4
    1014448-067 WELD MAIN FRAME (BLACK)
    WELD MAIN FRAME (BLACK)
  • 5
    4020149 CLIP (ROSEBUD)
    CLIP (ROSEBUD)
  • 6
    7517685 SCREW
    SCREW
  • 7
    5811527 SEAL, FOAM
    SEAL, FOAM
  • 8
    4032093 SPRING, ADJUSTER (.9 IN )
    SPRING, ADJUSTER (.9 IN )
  • 9
    7670163 CLIP SCREW
    CLIP SCREW
  • 10
    5247522-067 HEADING, BRACKET KIT
    HEADING, BRACKET KIT
  • 11
    4030056 BULB, HEADLIGHT
    BULB, HEADLIGHT
  • 12
    7512084 SCREW
    SCREW
  • 13
    4010206 HEADLIGHT 2X5, SINGLE BEAM 55W (INCL. 10)
    HEADLIGHT 2X5, SINGLE BEAM 55W (INCL. 10)
  • 14
    4032094 SPRING, ADJUST (2.5 IN)
    SPRING, ADJUST (2.5 IN)
  • 15
    7518302 SCREW
    SCREW
  • 16
    5432179-177 COVER 400 (2X4) (FRONT/BLACK)
    COVER 400 (2X4) (FRONT/BLACK)
  • 17
    7518303 SCREW
    SCREW
  • 18
    7517916 SCREW
    SCREW
  • 19
    2632424-341 CAB ASSY GENIII (FRONT/SVC SONIC BLUE W/WARNING DECALS)
    CAB ASSY GENIII (FRONT/SVC SONIC BLUE W/WARNING DECALS)
  • 20
    7621472 RIVET
    RIVET
  • 21
    7558201 WASHER, FLAT
    WASHER, FLAT
  • 22
    7542122 NUT NYLOK
    NUT NYLOK
  • 23
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 24
    5811831 MUDFLAP HYBRID (FRONT/LEFT)
    MUDFLAP HYBRID (FRONT/LEFT)
  • 24
    5850150 MUDFLAP HYBRID (FRONT/RIGHT)
    MUDFLAP HYBRID (FRONT/RIGHT)
  • 25
    7512282 BOLT (BLACK)
    BOLT (BLACK)
  • 26
    1013249-067 FOOTPAD, CDS (STEEL BLACK)
    FOOTPAD, CDS (STEEL BLACK)
  • 27
    7661825 RIVET
    RIVET
  • 28
    5431484 TRIM, FOOTREST
    TRIM, FOOTREST
  • 29
    7515179 SCREW
    SCREW
  • 30
    5432763 GUARD, ROCK
    GUARD, ROCK
  • 31
    5242525-067 BRACKET, HEEL CLEAT (BLACK)
    BRACKET, HEEL CLEAT (BLACK)
  • 32
    7517916 SCREW
    SCREW
  • 33
    5433457 GUARD, PROP SHAFT SIDE
    GUARD, PROP SHAFT SIDE
