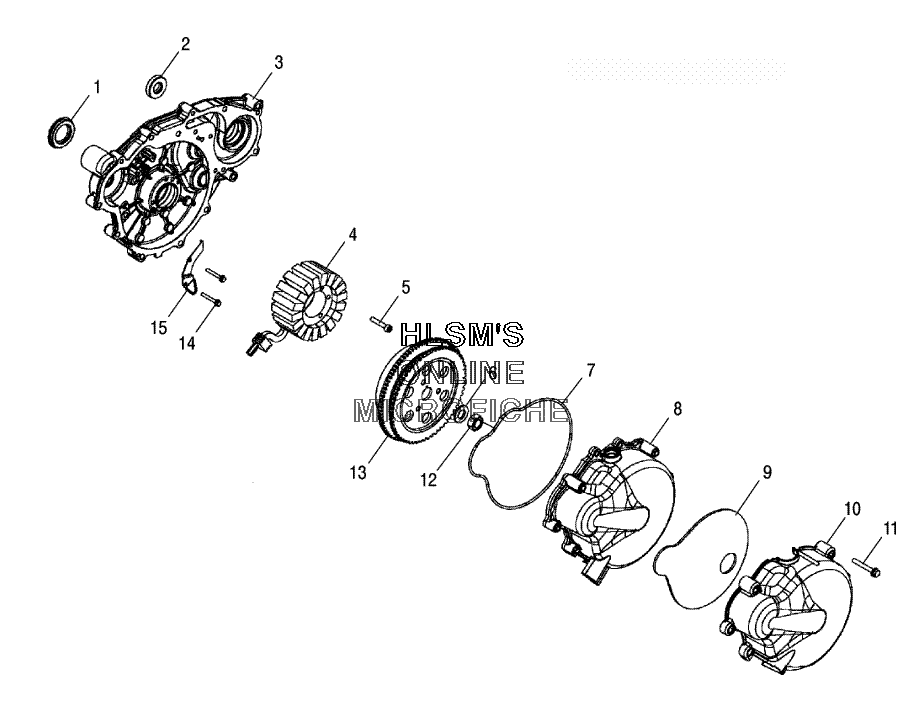

MAGNETO для Polaris SPORTSMAN 700 (A04CH68AP) (N.B.U. SUB. CAMO) (USA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5412048 SEAL FLANGED (24X44X10 W/HELIX)
    SEAL FLANGED (24X44X10 W/HELIX)
  • 2
    5412455 SEAL OIL (15X35X8)
    SEAL OIL (15X35X8)
  • 3
    1202384 COVER ENGINE KIT (MAG)
    COVER ENGINE KIT (MAG)
  • 4
    4010911 STATOR
    STATOR
  • 5
    7517848 SCREW (M6X1.0X35 SOC/CP-Y/D)
    SCREW (M6X1.0X35 SOC/CP-Y/D)
  • 6
    7555907 WASHER
    WASHER
  • 7
    5412458 O-RING
    O-RING
  • 8
    1202513 COVER STATOR DIE CAST ASSY
    COVER STATOR DIE CAST ASSY
  • 9
    5812283 COVER, SOUND DAMPENING
    COVER, SOUND DAMPENING
  • 10
    5435099 COVER STATOR (OUTER)
    COVER STATOR (OUTER)
  • 11
    7517950 SCREW (M6X1.0X45 HX-FL-Y/D)
    SCREW (M6X1.0X45 HX-FL-Y/D)
  • 12
    7547213 NUT (M14X1.50, HEX-Y)
    NUT (M14X1.50, HEX-Y)
  • 13
    4010912 FLYWHEEL W/160MM ENCODER KOK
    FLYWHEEL W/160MM ENCODER KOK
  • 14
    7517950 SCREW (M6X1.0X45 HX-FL-Y/D)
    SCREW (M6X1.0X45 HX-FL-Y/D)
  • 15
    5245364 STATOR BRACKET, WIRE-HOLD-DOWN
    STATOR BRACKET, WIRE-HOLD-DOWN
