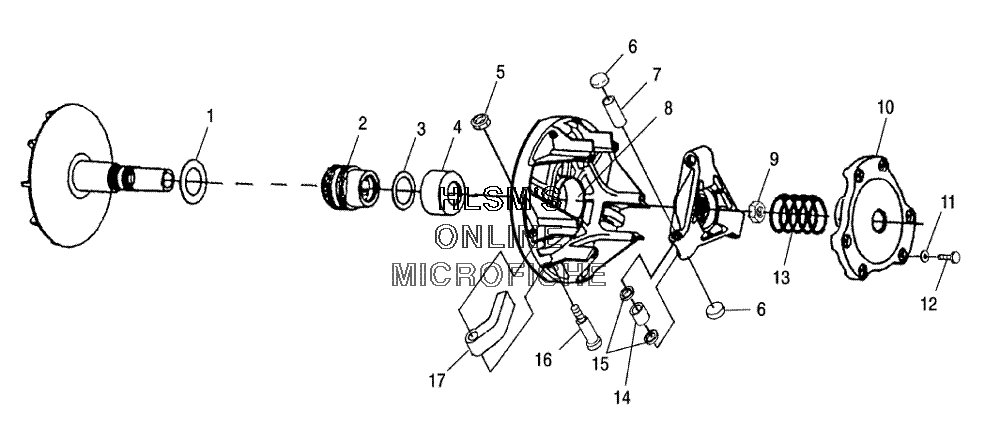

CLUTCH - DRIVE для Polaris SPORTSMAN 700 (A04CH68AP) (N.B.U. SUB. CAMO) (USA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7556204 WASHER-1.39X2.24X.030, PTFE
    WASHER-1.39X2.24X.030, PTFE
  • 2
    1520231 CLUTCH ASSY, DRIVE, 1-WAY, HLRD
    CLUTCH ASSY, DRIVE, 1-WAY, HLRD
  • 3
    7556202 WASHER (1.39X1.99X.030, BRASS)
    WASHER (1.39X1.99X.030, BRASS)
  • 4
    5631119 SPACER (1.25X2.25, PM)
    SPACER (1.25X2.25, PM)
  • 5
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 6
    5431936 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 7
    5020422 PIN ROLLER
    PIN ROLLER
  • 8
    3585712 BEARING
    BEARING
  • 9
    7547130 LIMITING NUT KIT, EBS
    LIMITING NUT KIT, EBS
  • 10
    3576510 BEARING, COVER,
    BEARING, COVER,
  • 11
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 12
    7512176 BOLT
    BOLT
  • 13
    7041157 SPRING, CLUTCH
    SPRING, CLUTCH
  • 14
    1321622 ROLLER AND BUSHING ASSY
    ROLLER AND BUSHING ASSY
  • 15
    5430945 WASHER
    WASHER
  • 16
    7512266 BOLT, SHOULDER
    BOLT, SHOULDER
  • 17
    5631215 WEIGHT-SHIFT, 20-56
    WEIGHT-SHIFT, 20-56
  • 17
    1321971 DRIVE CLUTCH, EBS, WIDE, ASSY. [INCL. ALL LESS 13, 17]
    DRIVE CLUTCH, EBS, WIDE, ASSY. [INCL. ALL LESS 13, 17]
