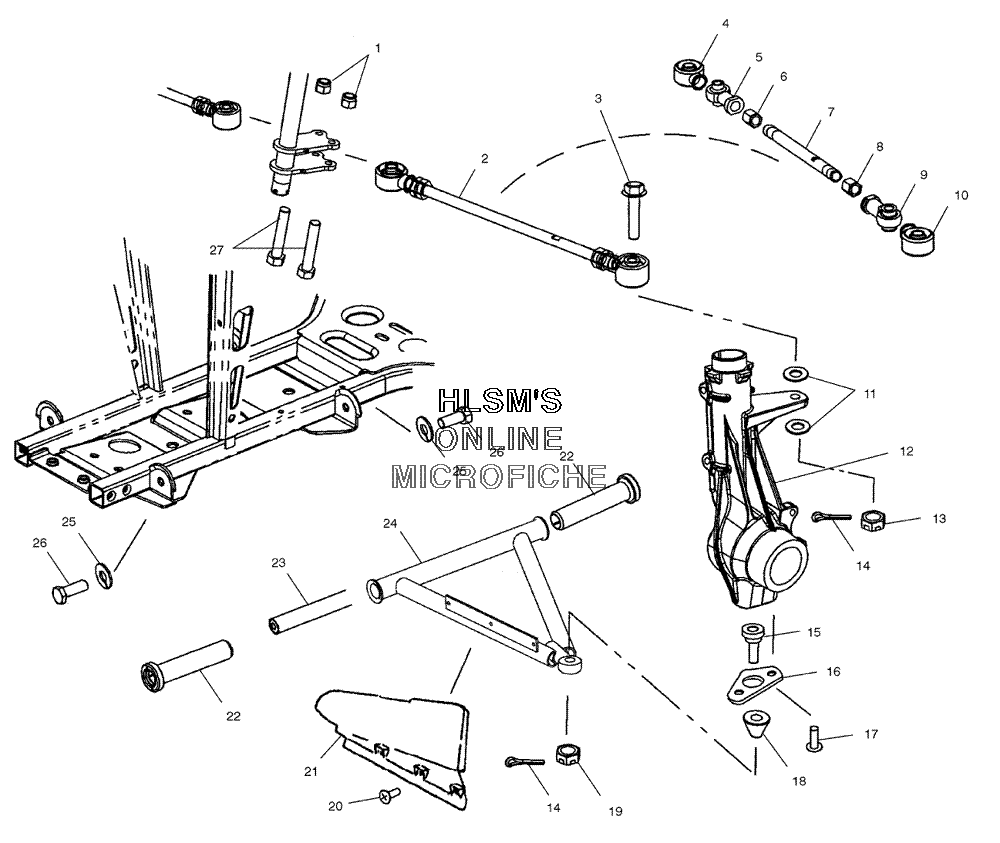

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris SPORTSMAN 700 (A04CH68AC) (N.B.U. SUB. CAMO) - 2004 года выпуска`
-
№АртикулНазвание
-
17542439 NUT,NYLOK (10)NUT,NYLOK (10)
-
21820805 TIE,ROD,1/2-20X13.4,ASSY.TIE,ROD,1/2-20X13.4,ASSY.
-
37517909 BOLT-M10X1.25X65,HX WASH HDBOLT-M10X1.25X65,HX WASH HD
-
45411291 SEAL,BOOT,ROD END,1/2 INSEAL,BOOT,ROD END,1/2 IN
-
57061034 ROD END,RHROD END,RH
-
67542711 NUT-JAM (10)NUT-JAM (10)
-
75020926 ROD,TIEROD,TIE
-
87547028 NUT,JAM,LH (10)NUT,JAM,LH (10)
-
97061054 ROD,END,10MM,1/2-20LH,42 DEGROD,END,10MM,1/2-20LH,42 DEG
-
105411920 BOOT,SEAL,ROD END,10MMBOOT,SEAL,ROD END,10MM
-
117556099 WASHER (10)WASHER (10)
-
137547177 NUT-M10X1.25-HX-LOCK-YNUT-M10X1.25-HX-LOCK-Y
-
147661203 PIN,COTTER (10)PIN,COTTER (10)
-
157080927 BALL-JOINT,52 DEGBALL-JOINT,52 DEG
-
165211121 BRKT, BALL JOINTBRKT, BALL JOINT
-
177512284 BOLT, SOCKET (10)BOLT, SOCKET (10)
-
185410548 BOOT, RUBBERBOOT, RUBBER
-
197542438 NUT, CASTLE (10)NUT, CASTLE (10)
-
207512084 SCREW (10)SCREW (10)
-
215435028-070 SHIELD-CV,FRONT,BASIC,LH,BLKSHIELD-CV,FRONT,BASIC,LH,BLK
-
215435029-070 SHIELD-CV,FRONT,BASIC,RH,BLKSHIELD-CV,FRONT,BASIC,RH,BLK
-
225434551 BUSHING-A-ARM,LONG,BLKBUSHING-A-ARM,LONG,BLK
-
235133806 SHAFT-A-ARMSHAFT-A-ARM
-
242202274 KIT-A-FRAME,LH (1541740) (INCL. 14,22,23,25,26)KIT-A-FRAME,LH (1541740) (INCL. 14,22,23,25,26)
-
242202275 KIT-A-FRAME,RH (1541741) (INCL. 14,22,23,25,26)KIT-A-FRAME,RH (1541741) (INCL. 14,22,23,25,26)
-
257571611 WASHER-LOCK (10)WASHER-LOCK (10)
-
267512492 SCREW (10)SCREW (10)
-
277515415 SCREW (10)SCREW (10)
