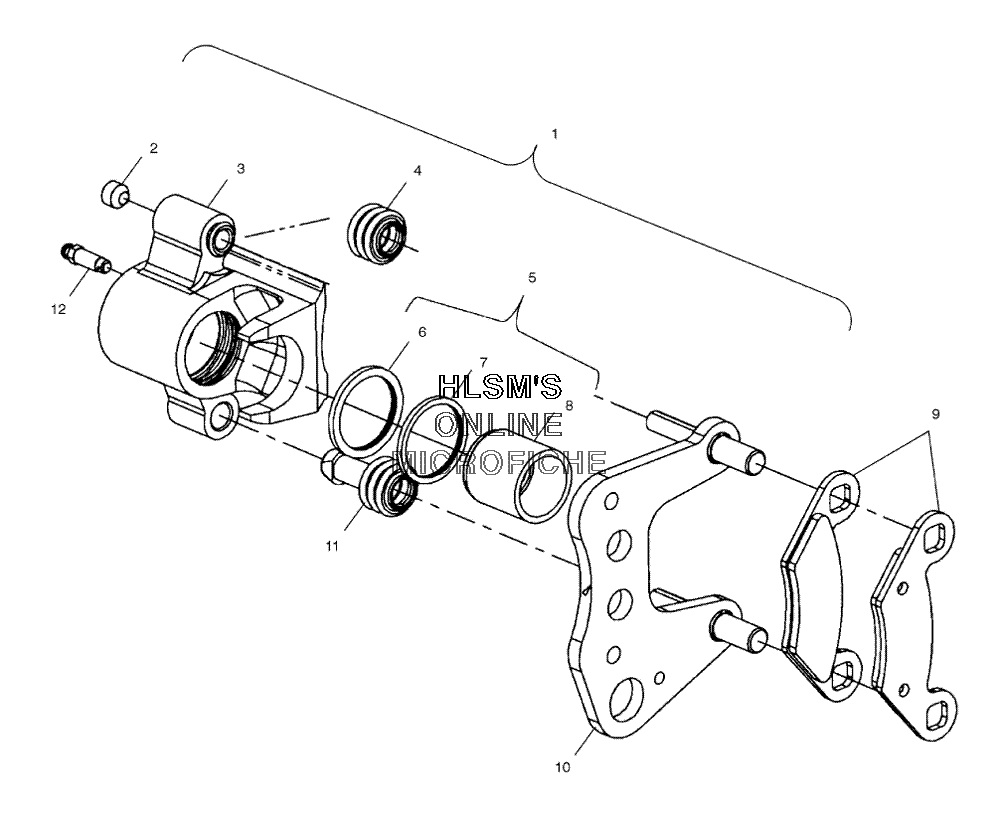

BRAKE - FRONT для Polaris SPORTSMAN 700 (A04CH68AC) (N.B.U. SUB. CAMO) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1910681 ASM-CALIPER,BRAKE,LH,1.187,9" (INCL. 2-8,10,11)
    ASM-CALIPER,BRAKE,LH,1.187,9" (INCL. 2-8,10,11)
  • 1
    1910682 ASM-CALIPER,BRAKE,RH,1.187,9" (INCL. 2-8,10,11)
    ASM-CALIPER,BRAKE,RH,1.187,9" (INCL. 2-8,10,11)
  • 2
    7515489 SCR-3/8-24X5/16 SOC SET-Y
    SCR-3/8-24X5/16 SOC SET-Y
  • 3
    5132960 SUBSTITUTED BY 5133407
    SUBSTITUTED BY 5133407
  • 3
    5132961 SUBSTITUTED BY 5133408
    SUBSTITUTED BY 5133408
  • 3
    1930642 KIT,BOOT,FRONT BRAKE
    KIT,BOOT,FRONT BRAKE
  • 4
    5410494 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 5
    1930665 PISTON & SEAL,KIT- (INCL. 6-8)
    PISTON & SEAL,KIT- (INCL. 6-8)
  • 6
    5410779 RING,SQUARE,MOLDED,.094 (.094)
    RING,SQUARE,MOLDED,.094 (.094)
  • 7
    5410780 RING,SQUARE,MOLDED,.103X.134 (.103 X .134)
    RING,SQUARE,MOLDED,.103X.134 (.103 X .134)
  • 8
    5132294 SUBSTITUTED BY 1930665
    SUBSTITUTED BY 1930665
  • 9
    2201398 SUBSTITUTED BY 2202412
    SUBSTITUTED BY 2202412
  • 10
    1910411 MOUNT,ASM,CALIPER
    MOUNT,ASM,CALIPER
  • 11
    5410495 BOOT, BUSHING
    BOOT, BUSHING
  • 12
    7080352 SCREW,BLEEDER (10)
    SCREW,BLEEDER (10)
