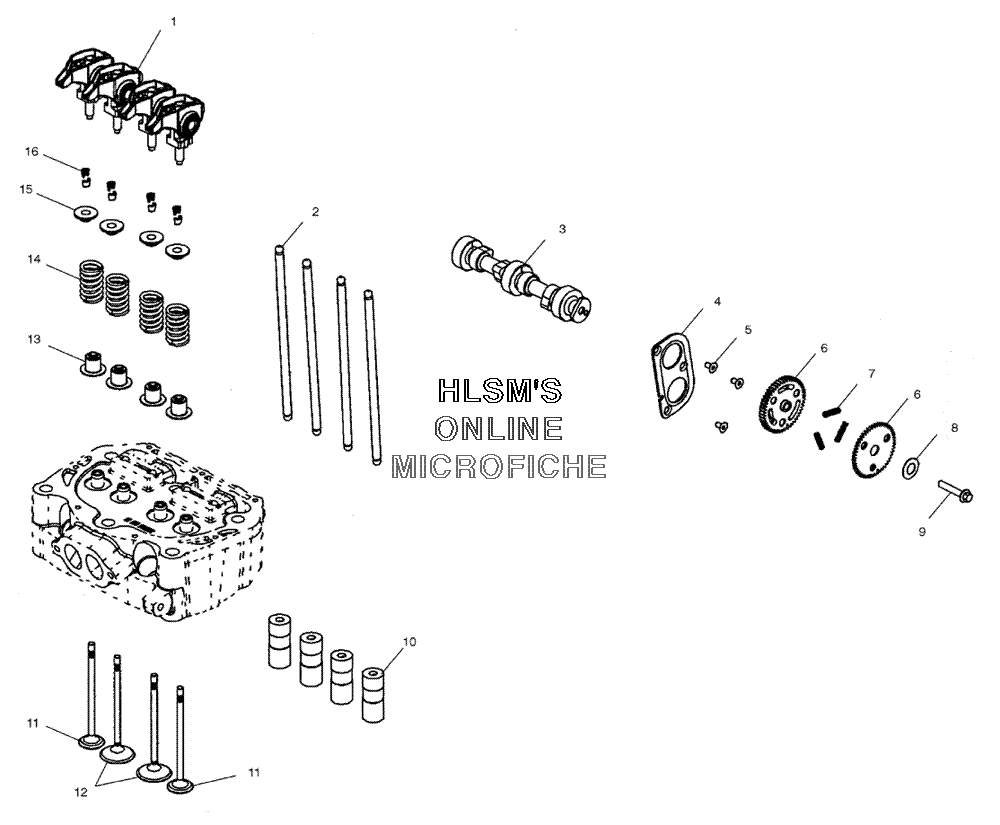

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN 700 (A04CH68AC) (N.B.U. SUB. CAMO) - 2004 года выпуска`
-
№АртикулНазвание
-
11202169 ASM-ROCKER ARMASM-ROCKER ARM
-
25132402 PUSHRODPUSHROD
-
32202110 KIT-CAMSHAFT 680 ATV 02 (INCL. 7)KIT-CAMSHAFT 680 ATV 02 (INCL. 7)
-
45244286 PLATE-THRUSTPLATE-THRUST
-
57517598 SCREWSCREW
-
62202145 KIT-GEAR SETKIT-GEAR SET
-
77041999 SPRNG-COMPRESSION,4.85X1.44X25SPRNG-COMPRESSION,4.85X1.44X25
-
87556183 WASHER-SPRING,1.1X.559X.0315WASHER-SPRING,1.1X.559X.0315
-
97517865 SCREW,M8X1.25X45 HX/FL-DSCREW,M8X1.25X45 HX/FL-D
-
105131415 SUBSTITUTED BY 5134152SUBSTITUTED BY 5134152
-
115133141 VALVE-EXHAUST,26MM HIGH TEMPVALVE-EXHAUST,26MM HIGH TEMP
-
125132696 VALVE-INTAKE 35MMVALVE-INTAKE 35MM
-
135411895 SEAL-VALVE GUIDESEAL-VALVE GUIDE
-
147041565 SPRING,VALVESPRING,VALVE
-
155131413 RETAINER,SPRINGRETAINER,SPRING
-
165910042 RETAINER,LOCK,VALVE STEMRETAINER,LOCK,VALVE STEM
