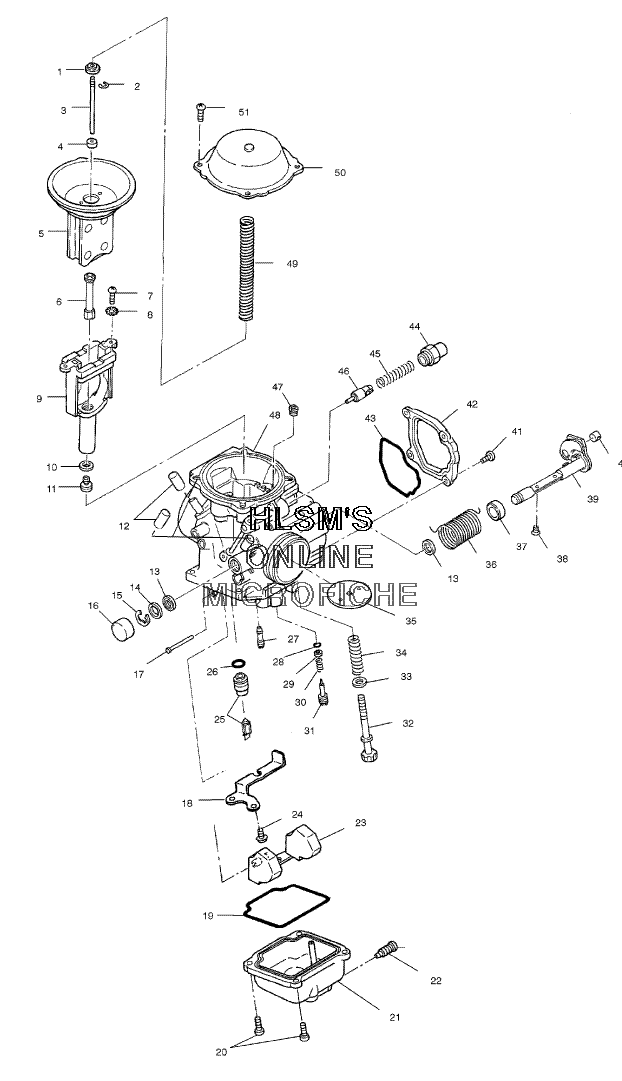

CARBURETOR для Polaris SPORTSMAN 600 (A04CH59AW) (BLAZING RED) - 2004 года выпуска`
-
№АртикулНазвание
-
13130507 RINGRING
-
23130508 E-RINGE-RING
-
33131449 NEEDLE-JET (IF BUILT BEFORE 10/02/03)NEEDLE-JET (IF BUILT BEFORE 10/02/03)
-
33130963 NEEDLE,JET (IF BUILT AFTER 10/02/03)NEEDLE,JET (IF BUILT AFTER 10/02/03)
-
43130752 RINGRING
-
53130732 DIAPHRAGM ASSY.DIAPHRAGM ASSY.
-
63131450 JET-NEEDLE (P-4) (IF BUILT BEFORE 10/02/03)JET-NEEDLE (P-4) (IF BUILT BEFORE 10/02/03)
-
63131363 JET-NEEDLE (P-6) (IF BUILT AFTER 10/02/03)JET-NEEDLE (P-6) (IF BUILT AFTER 10/02/03)
-
73130541 SCREWSCREW
-
83130540 WASHER, SPRINGWASHER, SPRING
-
103130014 WASHERWASHER
-
113130571 MAIN JET, #155 (IF BUILT BEFORE 10/02/03)MAIN JET, #155 (IF BUILT BEFORE 10/02/03)
-
113130572 MAIN JET, #157.5 (IF BUILT AFTER 10/02/03)MAIN JET, #157.5 (IF BUILT AFTER 10/02/03)
-
125434505 CAP-DIP BLACK VINYL .230X.50CAP-DIP BLACK VINYL .230X.50
-
133130515 SEALSEAL
-
143130517 GASKETGASKET
-
163130519 CAPCAP
-
173130361 PIN, FLOATPIN, FLOAT
-
183130594 PLATEPLATE
-
193130532 O-RINGO-RING
-
203130520 SCREWSCREW
-
213130590 FLOATBODY ASSY.FLOATBODY ASSY.
-
223130521 SCREWSCREW
-
233130529 FLOAT ASSY.FLOAT ASSY.
-
243130591 SCREWSCREW
-
253131360 VALVE-NEEDLE, 1.5 (PUSH IN) (1.5)VALVE-NEEDLE, 1.5 (PUSH IN) (1.5)
-
263130533 O-RINGO-RING
-
273131397 JET-PILOT, 45JET-PILOT, 45
-
283130522 O-RINGO-RING
-
293130523 WASHERWASHER
-
303130525 SPRINGSPRING
-
313130524 ADJUSTERADJUSTER
-
323130546 SCREW, ADJ.SCREW, ADJ.
-
333130545 RINGRING
-
343130544 SPRINGSPRING
-
363131398 SPRINGSPRING
-
373130514 RINGRING
-
403130543 GUIDE, CABLEGUIDE, CABLE
-
413130535 SCREWSCREW
-
423130511 COVERCOVER
-
433130512 O-RINGO-RING
-
443131396 HOLDER-GUIDEHOLDER-GUIDE
-
453130538 SPRINGSPRING
-
463131395 PLUNGER ASSY.PLUNGER ASSY.
-
473130625 JET, AIR, PILOT, #160JET, AIR, PILOT, #160
-
481253436 CARBURETOR ASSY., BST 34MM 600 (INCL. 1-12) (IF BUILT BEFORE 10/02/03)CARBURETOR ASSY., BST 34MM 600 (INCL. 1-12) (IF BUILT BEFORE 10/02/03)
-
481253537 CARBURETOR ASSY. (INCL. 1-12) (IF BUILT AFTER 10/02/03)CARBURETOR ASSY. (INCL. 1-12) (IF BUILT AFTER 10/02/03)
-
493131451 SPRING-COMPRESSIONSPRING-COMPRESSION
-
503130503 COVER ASSY.COVER ASSY.
-
513130592 SCREWSCREW
