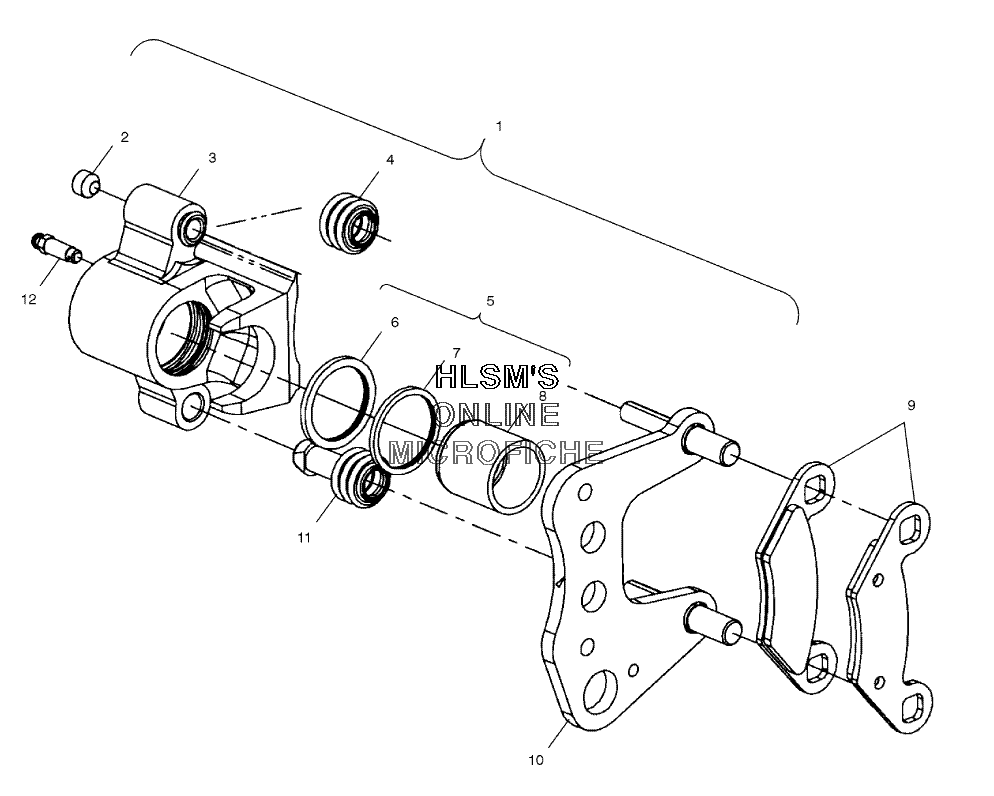

BRAKE - FRONT для Polaris SPORTSMAN 600 (A04CH59AW) (BLAZING RED) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1910681 BRAKE CALIPER ASSY. (LEFT) 1.187, 9" (INCL. 2-8, 10, 11)
    BRAKE CALIPER ASSY. (LEFT) 1.187, 9" (INCL. 2-8, 10, 11)
  • 1
    1910682 BRAKE CALIPER ASSY. (RIGHT), 1.187, 9" (INCL. 2-8, 10, 11)
    BRAKE CALIPER ASSY. (RIGHT), 1.187, 9" (INCL. 2-8, 10, 11)
  • 2
    7515489 SCR-3/8-24X5/16 SOC SET-Y
    SCR-3/8-24X5/16 SOC SET-Y
  • 3
    5133407 CALIPER, BRAKE (LEFT) 1-3/16
    CALIPER, BRAKE (LEFT) 1-3/16
  • 3
    5133408 CALIPER, BRAKE (RIGHT) 1-3/16
    CALIPER, BRAKE (RIGHT) 1-3/16
  • 3
    1930642 FRONT BRAKE BOOT KIT
    FRONT BRAKE BOOT KIT
  • 4
    5410494 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 5
    1930665 PISTON & SEAL, KIT, (INCL. 6-8)
    PISTON & SEAL, KIT, (INCL. 6-8)
  • 6
    5410779 RING, SQUARE, MOLDED, .094
    RING, SQUARE, MOLDED, .094
  • 7
    5410780 RING, SQUARE, MOLDED, .103X.134
    RING, SQUARE, MOLDED, .103X.134
  • 8
    5132294 PISTON & SEAL,KIT
    PISTON & SEAL,KIT
  • 9
    2201398 FRONT BRAKE PAD ASSY.
    FRONT BRAKE PAD ASSY.
  • 10
    1910411 CALIPER MOUNT ASSY.
    CALIPER MOUNT ASSY.
  • 11
    5410495 BOOT, BUSHING
    BOOT, BUSHING
  • 12
    7080352 SCREW, BLEEDER
    SCREW, BLEEDER
