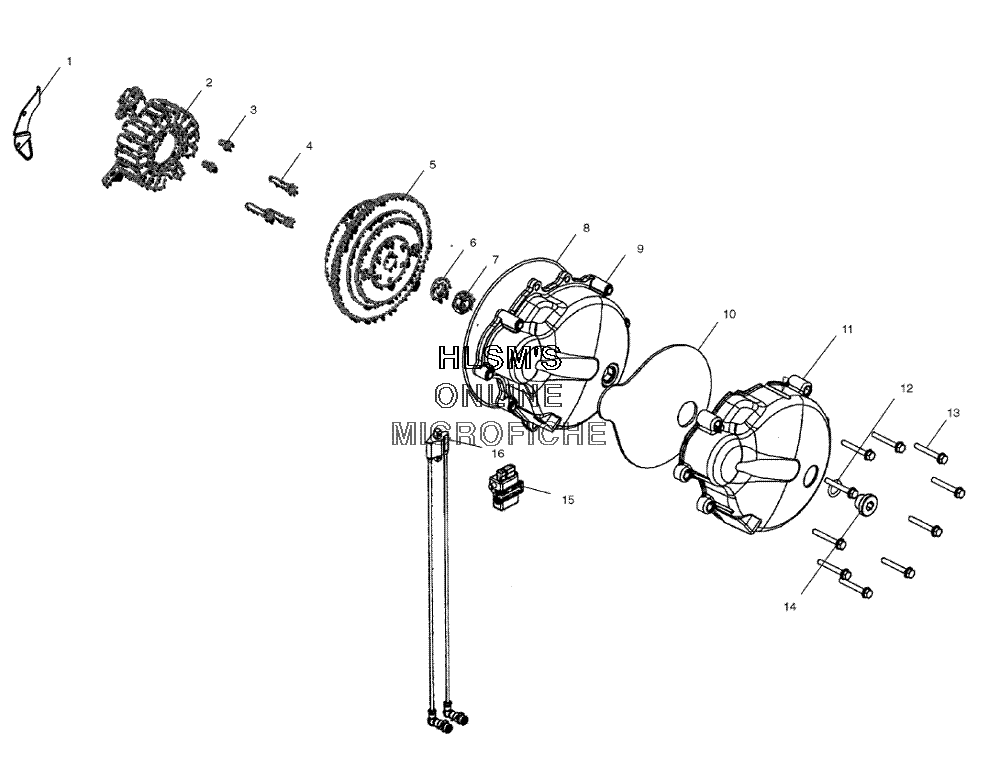

MAGNETO для Polaris SPORTSMAN 600 (A04CH59AQ) (N.B.U. SUB. CAMO) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    5245364 STATOR-BRACKET, WIRE-HOLD-DOWN
    STATOR-BRACKET, WIRE-HOLD-DOWN
  • 2
    4010901 STATOR ASSY., KOKUSAN
    STATOR ASSY., KOKUSAN
  • 2
    2202603 KIT, IGNITION, 600, KOK, ATV (INCL. JUMPER)
    KIT, IGNITION, 600, KOK, ATV (INCL. JUMPER)
  • 3
    7517847 SCR-M5X0.8X10 SOC/CP-D
    SCR-M5X0.8X10 SOC/CP-D
  • 4
    7517714 SCREW
    SCREW
  • 5
    4010899 FLYWHEEL ASSY., IGNITION KOK
    FLYWHEEL ASSY., IGNITION KOK
  • 6
    7555907 WASHER
    WASHER
  • 7
    7546909 NUT (IF BUILT BEFORE 10/02/03)
    NUT (IF BUILT BEFORE 10/02/03)
  • 7
    7547213 NUT-M14X1.50, HEX-Y (IF BUILT AFTER 10/02/03)
    NUT-M14X1.50, HEX-Y (IF BUILT AFTER 10/02/03)
  • 8
    5812359 SEAL, O-RING, .128X7.895 (IF BUILT BEFORE 10/02/03)
    SEAL, O-RING, .128X7.895 (IF BUILT BEFORE 10/02/03)
  • 8
    5412458 O-RING (IF BUILT AFTER 10/02/03)
    O-RING (IF BUILT AFTER 10/02/03)
  • 9
    1201684 HOUSING, STATOR, TWIN, ATV (IF BUILT BEFORE 10/02/03)
    HOUSING, STATOR, TWIN, ATV (IF BUILT BEFORE 10/02/03)
  • 9
    1202641 COVER STATOR ASSY., CARB (IF BUILT AFTER 10/02/03)
    COVER STATOR ASSY., CARB (IF BUILT AFTER 10/02/03)
  • 10
    5812283 COVER-SOUND DAMPENING
    COVER-SOUND DAMPENING
  • 11
    5434310 COVER-OUTER, MAG TWIN 4 STROKE (IF BUILT BEFORE 10/02/03)
    COVER-OUTER, MAG TWIN 4 STROKE (IF BUILT BEFORE 10/02/03)
  • 11
    5435099 COVER-STATOR, OUTER (IF BUILT AFTER 10/02/03)
    COVER-STATOR, OUTER (IF BUILT AFTER 10/02/03)
  • 12
    5411564 O-RING (IF BUILT BEFORE 10/02/03)
    O-RING (IF BUILT BEFORE 10/02/03)
  • 13
    7517950 SCR-M6X1.0X45 HX-FL-Y/D
    SCR-M6X1.0X45 HX-FL-Y/D
  • 14
    5433820 PLUG, HOLE, TMNG, 3/4-16, NYLON (IF BUILT BEFORE 10/02/03)
    PLUG, HOLE, TMNG, 3/4-16, NYLON (IF BUILT BEFORE 10/02/03)
  • 15
    4010920 CONTROLLER-IGN 600 ATV KOK (IF BUILT BEFORE 10/02/03)
    CONTROLLER-IGN 600 ATV KOK (IF BUILT BEFORE 10/02/03)
  • 15
    4010951 CONTROLLER, IGN 600 ATV KOK (IF BUILT AFTER 10/02/03
    CONTROLLER, IGN 600 ATV KOK (IF BUILT AFTER 10/02/03
  • 16
    4010898 COIL-IGNITION KOK
    COIL-IGNITION KOK
