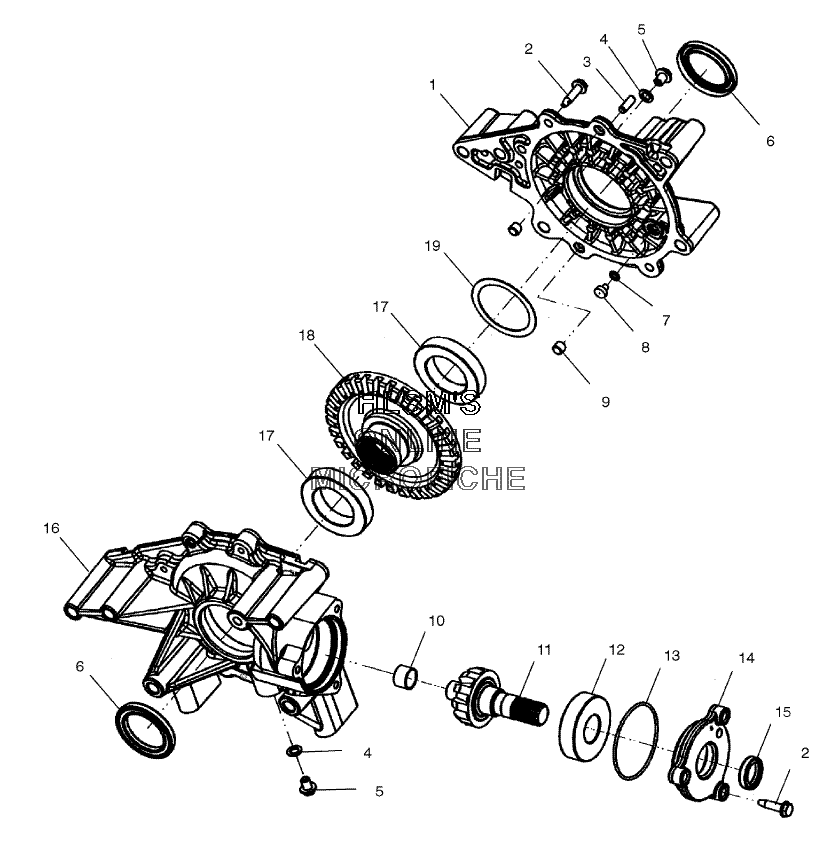

GEARCASE - REAR для Polaris SPORTSMAN 600 (A04CH59AQ) (N.B.U. SUB. CAMO) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3233876 COVER-OUTPUT (LEFT)
    COVER-OUTPUT (LEFT)
  • 2
    3233846 SCREW-ROLL FORMING
    SCREW-ROLL FORMING
  • 3
    3233524 TUBE, VENT
    TUBE, VENT
  • 4
    3233254 WASHER, PLUG
    WASHER, PLUG
  • 5
    3233777 PLUG-HEX FLANGE
    PLUG-HEX FLANGE
  • 6
    3233878 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 7
    3233583 SHIM .450 X .265
    SHIM .450 X .265
  • 8
    3233582 BUTTON, THRUST
    BUTTON, THRUST
  • 9
    3233529 PIPE, KNOCK
    PIPE, KNOCK
  • 10
    3233577 BUSHING
    BUSHING
  • 11
    3233881 SHAFT, PINION, 10T STRAIGHT BVL
    SHAFT, PINION, 10T STRAIGHT BVL
  • 12
    3233714 BEARING-BALL
    BEARING-BALL
  • 13
    3233588 O-RING 151
    O-RING 151
  • 14
    3233882 COVER-INPUT, REAR HSG
    COVER-INPUT, REAR HSG
  • 15
    3233785 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 16
    3233880 GEARCASE-REAR HOUSING
    GEARCASE-REAR HOUSING
  • 17
    3233268 BEARING, BALL
    BEARING, BALL
  • 18
    3233879 GEAR-31T STRAIGHT BEVEL
    GEAR-31T STRAIGHT BEVEL
  • 19
    3233581 SHIM 3.1 X 2.5
    SHIM 3.1 X 2.5
  • 19
    1341352 GEARCASE ASSY. (REAR)
    GEARCASE ASSY. (REAR)
