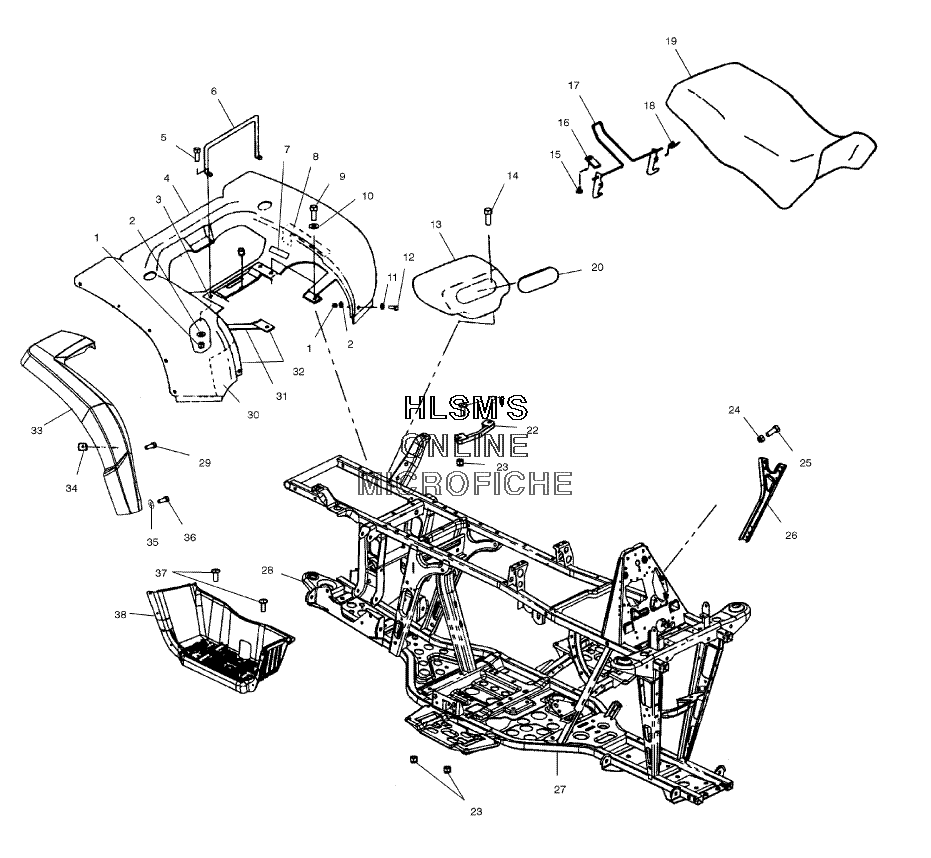

REAR FENDER- SEAT AND MAIN FRAME для Polaris SPORTSMAN 600 (A04CH59AK) (CAMO GREEN MET.) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 2
    7555792 WASHER
    WASHER
  • 3
    5811107 FOIL, REAR
    FOIL, REAR
  • 4
    5432117-400 FENDER-REAR, CAMO GREEN MET
    FENDER-REAR, CAMO GREEN MET
  • 5
    7511930 SCREW
    SCREW
  • 6
    5246076 RETAINER-SEAT LATCH
    RETAINER-SEAT LATCH
  • 7
    7079902 DECAL, CARB/FILTER INFO
    DECAL, CARB/FILTER INFO
  • 8
    5811308 FOIL, TAPE, 3 X 12
    FOIL, TAPE, 3 X 12
  • 9
    7512242 SCREW
    SCREW
  • 10
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 11
    7556034 WASHER
    WASHER
  • 12
    7512085 SCREW
    SCREW
  • 13
    5431786 TOOLBOX
    TOOLBOX
  • 14
    7517375 WASHER
    WASHER
  • 15
    7621403 BLIND RIVET
    BLIND RIVET
  • 16
    5211033 BRACKET, LEVER RETAINER
    BRACKET, LEVER RETAINER
  • 17
    1040387 LATCH, SEAT
    LATCH, SEAT
  • 18
    7041370 SPRING, LATCH
    SPRING, LATCH
  • 19
    2683197-070 ASSY.-SEAT, (BLACK)
    ASSY.-SEAT, (BLACK)
  • 19
    2682958-070 COVERING-SEAT, (BLACK)-
    COVERING-SEAT, (BLACK)-
  • 20
    5431787 COVER, TOOLBOX
    COVER, TOOLBOX
  • 21
    7517377 SCREW
    SCREW
  • 22
    5432280 SPACER, FOOTWELL ( (LEFT) ONLY)
    SPACER, FOOTWELL ( (LEFT) ONLY)
  • 23
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 24
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 25
    7512283 SCREW, SEMS
    SCREW, SEMS
  • 26
    5244751-067 BRACE-SUPPORT, FRAME, FRT (LEFT) (BLACK)
    BRACE-SUPPORT, FRAME, FRT (LEFT) (BLACK)
  • 27
    1014461-067 MAIN FRAME, (BLACK)
    MAIN FRAME, (BLACK)
  • 28
    7170509 DECAL-HITCH
    DECAL-HITCH
  • 29
    7512232 BOLT
    BOLT
  • 30
    5811111 FOIL
    FOIL
  • 31
    5811087 FOIL (6X1)
    FOIL (6X1)
  • 32
    5811106 FOIL, FRONT
    FOIL, FRONT
  • 33
    5434704-070 GUARD-MUD, REAR (LEFT) (BLACK)
    GUARD-MUD, REAR (LEFT) (BLACK)
  • 33
    5434705-070 GUARD-MUD, REAR (RIGHT) (BLACK)
    GUARD-MUD, REAR (RIGHT) (BLACK)
  • 34
    7670057 NUT, SPEED
    NUT, SPEED
  • 35
    7555832 WASHER
    WASHER
  • 36
    7517312 SCREW
    SCREW
  • 37
    7517264 SCREW ( (LEFT) SIDE)
    SCREW ( (LEFT) SIDE)
  • 37
    7517376 SCREW (RIGHT SIDE)
    SCREW (RIGHT SIDE)
  • 38
    5432221-070 FOOTWELL (LEFT) (BLACK), NYLON
    FOOTWELL (LEFT) (BLACK), NYLON
  • 38
    5433929-070 FOOTWELL-NYLON (RIGHT), SERVICE, (BLACK)
    FOOTWELL-NYLON (RIGHT), SERVICE, (BLACK)
