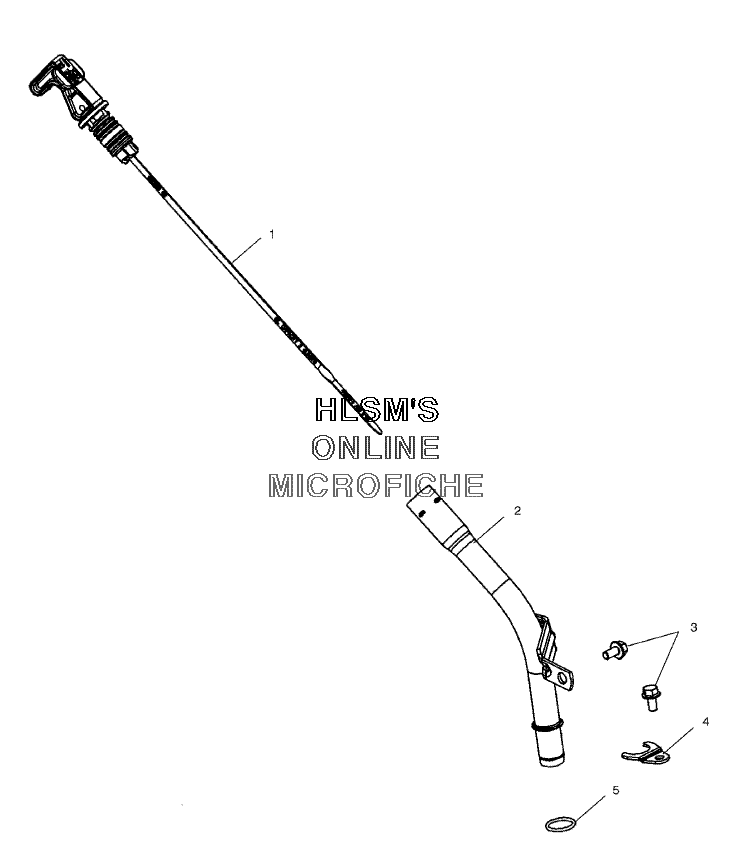

OIL DIPSTICK для Polaris SPORTSMAN 600 (A04CH59AK) (CAMO GREEN MET.) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1202109 DIPSTICK ASSY.
    DIPSTICK ASSY.
  • 2
    1202110 TUBE, OIL FILLER-ASSY. BLACK (IF BUILT BEFORE 10/02/03)
    TUBE, OIL FILLER-ASSY. BLACK (IF BUILT BEFORE 10/02/03)
  • 2
    1202629 TUBE, OIL FILL ASSY. (IF BUILT AFTER 10/02/03)
    TUBE, OIL FILL ASSY. (IF BUILT AFTER 10/02/03)
  • 3
    7517795 SCR-M5X0.8X10, HX/FL-YD
    SCR-M5X0.8X10, HX/FL-YD
  • 4
    5245805 CLAMP-OIL FILL TUBE 10Ш
    CLAMP-OIL FILL TUBE 10Ш
  • 5
    5812016 SEAL, O-RING, .070X.614
    SEAL, O-RING, .070X.614
