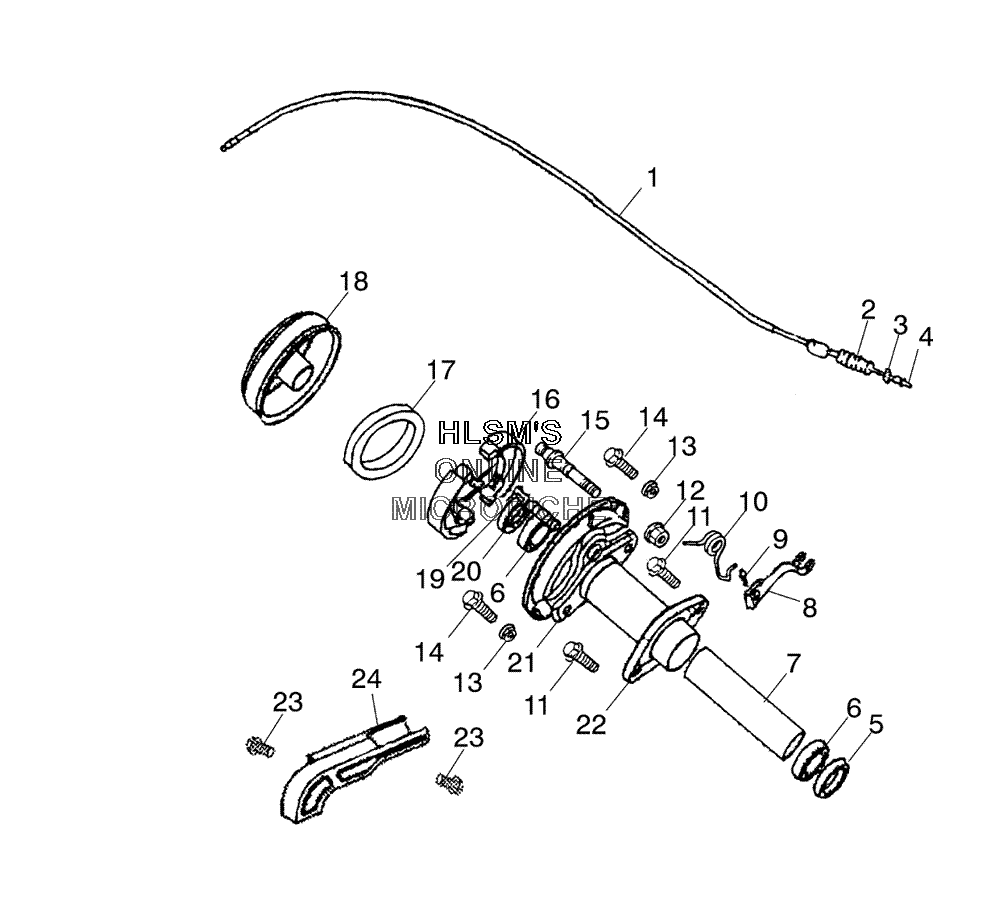

BRAKE - REAR для Polaris PREDATOR 50 (A04KA05CA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0451784 CABLE BRAKE (REAR)
    CABLE BRAKE (REAR)
  • 2
    0450435 SPRING CABLE BRAKE (REAR)
    SPRING CABLE BRAKE (REAR)
  • 3
    0450437 FIXTURE
    FIXTURE
  • 4
    0451079 NUT ADJUST BRAKE
    NUT ADJUST BRAKE
  • 5
    0451781 SEAL OIL
    SEAL OIL
  • 6
    0450429 BEARING NEEDLE
    BEARING NEEDLE
  • 7
    0451780 TUBE SPACER
    TUBE SPACER
  • 8
    0451782 ARM BRAKE (REAR)
    ARM BRAKE (REAR)
  • 9
    0451783 BOLT HEXAGON FLANGE (6MM)
    BOLT HEXAGON FLANGE (6MM)
  • 10
    0450453 SPRING BRAKE ARM (REAR)
    SPRING BRAKE ARM (REAR)
  • 11
    0450451 BOLT HEXAGON
    BOLT HEXAGON
  • 12
    0450881 NUT LOCK NYLON
    NUT LOCK NYLON
  • 13
    0450529 NUT FLANGE
    NUT FLANGE
  • 14
    0450452 BOLT HEXAGON
    BOLT HEXAGON
  • 15
    0450854 SHAFT FIX BRAKE (REAR)
    SHAFT FIX BRAKE (REAR)
  • 16
    0450434 SHOE BRAKE (REAR)
    SHOE BRAKE (REAR)
  • 17
    0450442 RUBBER PROTECTIVE
    RUBBER PROTECTIVE
  • 18
    0450441 DRUM BRAKE (REAR)
    DRUM BRAKE (REAR)
  • 19
    0450431 SHAFT CAM BRAKE (REAR)
    SHAFT CAM BRAKE (REAR)
  • 20
    0450430 SEAL OIL
    SEAL OIL
  • 21
    0450440 PLATE BRAKE (REAR)
    PLATE BRAKE (REAR)
  • 22
    0451779 HOUSING AXLE (REAR)
    HOUSING AXLE (REAR)
  • 23
    0450325 BOLT HEXAGON
    BOLT HEXAGON
  • 24
    0451785 GUARD, CHAIN (REAR)
    GUARD, CHAIN (REAR)
