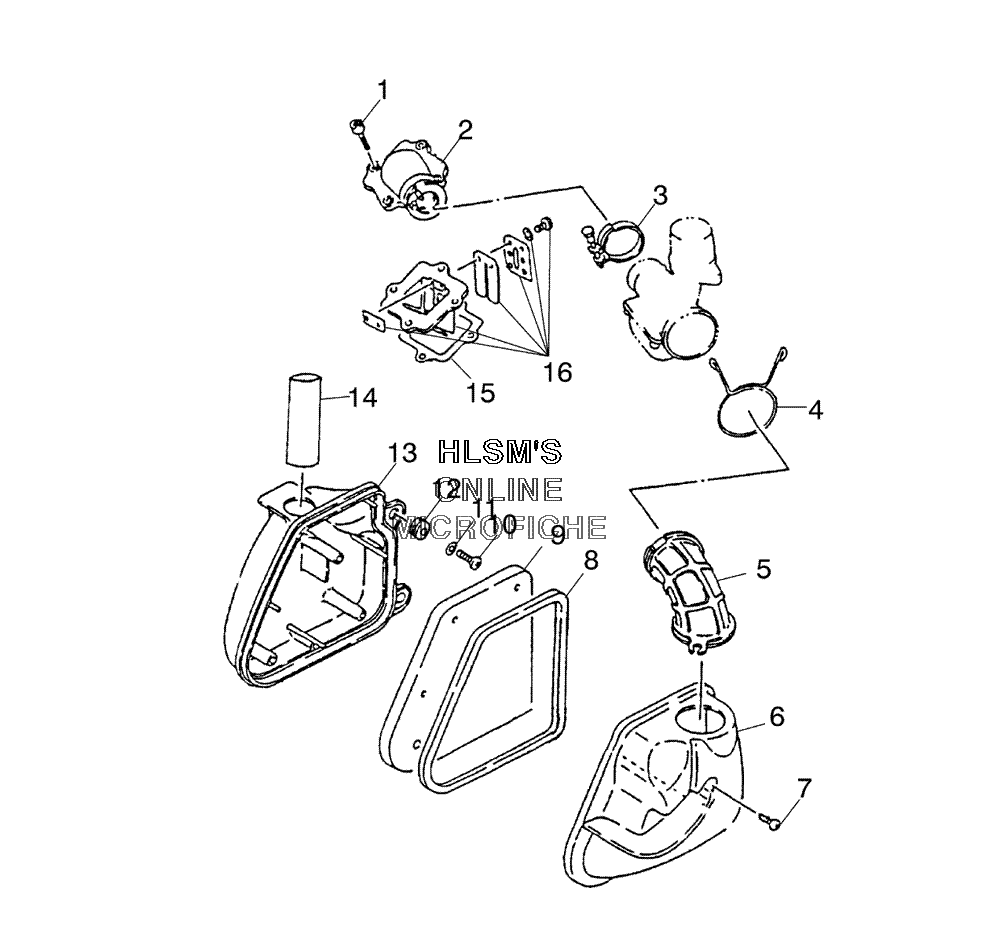

AIR BOX ASSY. для Polaris PREDATOR 50 (A04KA05CA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0451729 BOLT HEXAGON FLANGE (6MM)
    BOLT HEXAGON FLANGE (6MM)
  • 2
    0450065 MANIFOLD INTAKE (INCL. 1 3)
    MANIFOLD INTAKE (INCL. 1 3)
  • 3
    0450067 CLAMP HOSE INTAKE MANIFOLD
    CLAMP HOSE INTAKE MANIFOLD
  • 4
    0450068 CLIP
    CLIP
  • 5
    0450075 INLET, AIR BOX
    INLET, AIR BOX
  • 6
    0450071 CAP CASE AIR CLEANER
    CAP CASE AIR CLEANER
  • 7
    0450076 SCREW TAPPING
    SCREW TAPPING
  • 8
    0450074 SEAL
    SEAL
  • 9
    0450073 ELEMENT AIR CLEANER
    ELEMENT AIR CLEANER
  • 10
    0450039 BOLT SOCKET
    BOLT SOCKET
  • 11
    0450034 WASHER PLAIN
    WASHER PLAIN
  • 12
    0450079 GROMMET
    GROMMET
  • 13
    0450070 CASE AIR CLEANER
    CASE AIR CLEANER
  • 14
    0451077 INLET AIR BOX
    INLET AIR BOX
  • 15
    0450064 GASKET REED
    GASKET REED
  • 16
    0450062 REED VALVE ASSY
    REED VALVE ASSY
  • 16
    0451080 CLEANER, AIR (INCL. 5, 6, 7, 8, 9, 12, 13, 14)
    CLEANER, AIR (INCL. 5, 6, 7, 8, 9, 12, 13, 14)
