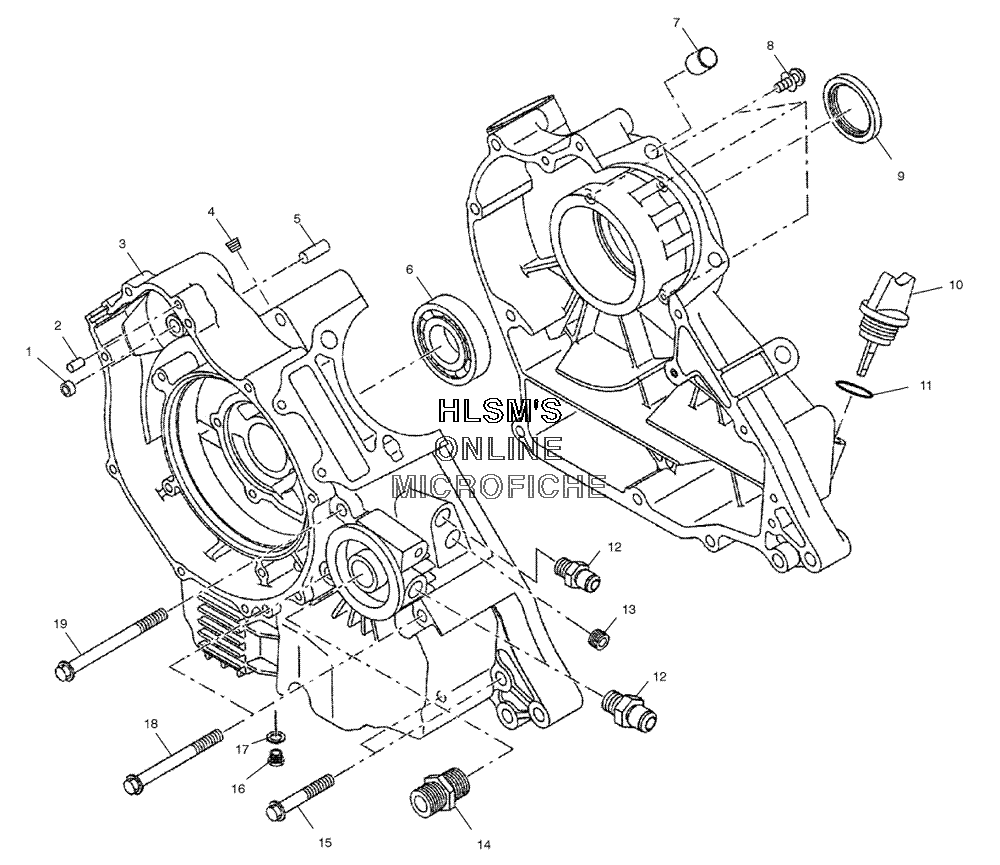

CRANKCASE для Polaris MAGNUM 330 2X4 (A04CB32AA) (USA) - 2004 года выпуска`
-
№АртикулНазвание
-
13083669 BUSHING, STARTERBUSHING, STARTER
-
23086741 PIN DOWELPIN DOWEL
-
33087125 CRANKCASE ASSY (INCL. 1-5, 9, 13, 15, 18, 19)CRANKCASE ASSY (INCL. 1-5, 9, 13, 15, 18, 19)
-
43087157 PLUG BLIND ASSYPLUG BLIND ASSY
-
53087116 PIN, DOWELPIN, DOWEL
-
63086395 BEARING BALLBEARING BALL
-
73087266 KNOCK, PIPEKNOCK, PIPE
-
83084205 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
93084839 SEAL, OILSEAL, OIL
-
103087128 GAUGE OILGAUGE OIL
-
113087065 O-RINGO-RING
-
123087066 UNIONUNION
-
133087155 PLUGPLUG
-
143084849 UNIONUNION
-
153087156 BOLT FLANGEBOLT FLANGE
-
163086749 PLUGPLUG
-
173082956 GASKETGASKET
-
183087117 BOLT FLANGEBOLT FLANGE
-
193086399 BOLT, FLANGEBOLT, FLANGE
