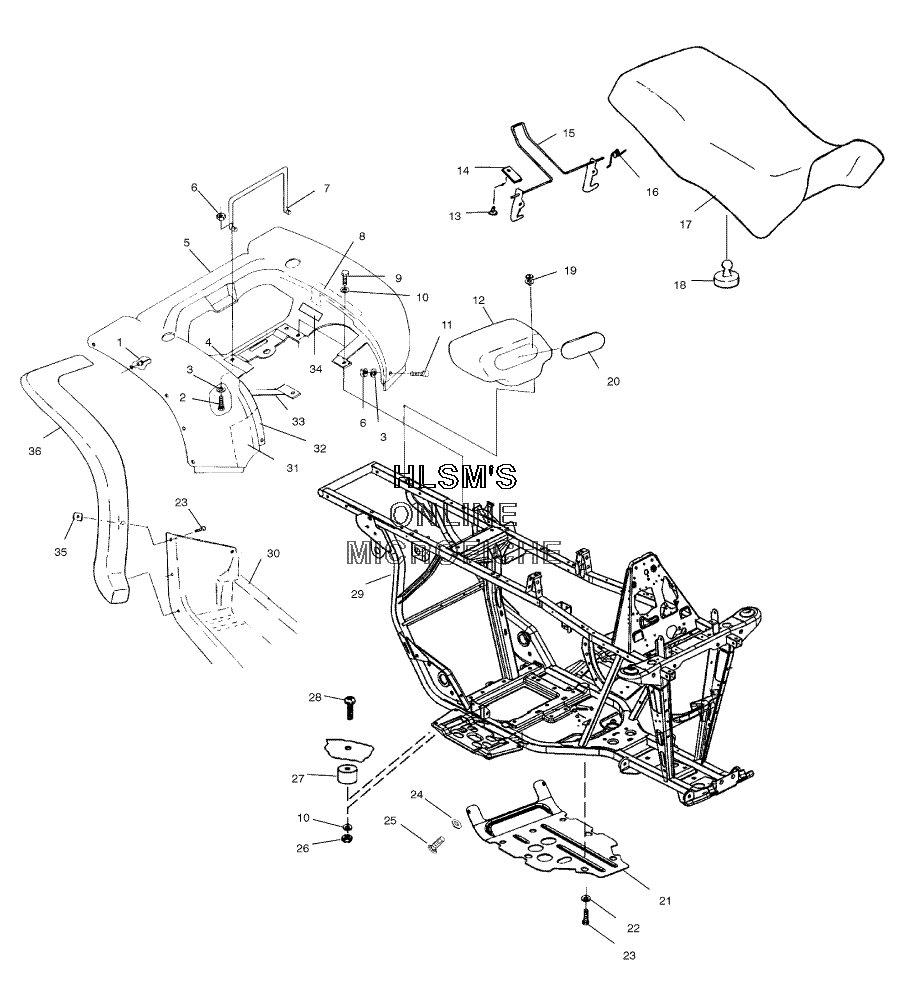

FENDER - REAR W/ SEAT для Polaris MAGNUM 330 2X4 (A04CB32AA) (USA) - 2004 года выпуска`
![](/wa-data/public/shop/sheme/polaris/atv/52643f87-95ba-4320-bc91-2b91b320a352.gif)
-
№АртикулНазвание
-
17661645 RIVETRIVET
-
27511930 SCREWSCREW
-
37555792 WASHERWASHER
-
45811107 FOIL (REAR)FOIL (REAR)
-
55432117-400 CAB (REAR/CAMO GREEN METALLIC)CAB (REAR/CAMO GREEN METALLIC)
-
67541925 NUT, NYLOKNUT, NYLOK
-
75224592 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
85811308 FOIL, TAPE (3 X 12)FOIL, TAPE (3 X 12)
-
97512242 SCREWSCREW
-
107555859 WASHER, FLATWASHER, FLAT
-
117512085 SCREWSCREW
-
125431786 TOOLBOXTOOLBOX
-
137621403 BLIND RIVETBLIND RIVET
-
145211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
151040387 LATCH, SEATLATCH, SEAT
-
167041370 SPRING, LATCHSPRING, LATCH
-
172683222-070 SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
172682958-070 COVERING SEAT (BLACK)COVERING SEAT (BLACK)
-
185412067 BUMPER RUBBERBUMPER RUBBER
-
197517375 WASHERWASHER
-
205431787 COVER, TOOLBOXCOVER, TOOLBOX
-
215435005 GUARD ROCKGUARD ROCK
-
227556065 WASHERWASHER
-
237512232 BOLTBOLT
-
247558301 WASHER, FLATWASHER, FLAT
-
257517386 SCREWSCREW
-
267542122 NUT NYLOKNUT NYLOK
-
275412156 GROMMETGROMMET
-
287517987 SCREWSCREW
-
291014293-067 WELD MAIN FRAME, SRS (BLACK)WELD MAIN FRAME, SRS (BLACK)
-
305432221-070 FOOTWELL NYLON (LEFT/BLACK)FOOTWELL NYLON (LEFT/BLACK)
-
305433219-070 FOOTWELL NYLON (RIGHT/BLACK)FOOTWELL NYLON (RIGHT/BLACK)
-
315811111 FOILFOIL
-
325811106 FOIL (FRONT)FOIL (FRONT)
-
335811087 FOIL (6X1)FOIL (6X1)
-
347170007 DECAL, CARBURETOR/FILTERDECAL, CARBURETOR/FILTER
-
357670057 NUT, SPEEDNUT, SPEED
-
365431796-070 GUARD MUD (REAR/LEFT/BLACK)GUARD MUD (REAR/LEFT/BLACK)
-
365431797-070 GUARD MUD (REAR/RIGHT/BLACK)GUARD MUD (REAR/RIGHT/BLACK)
