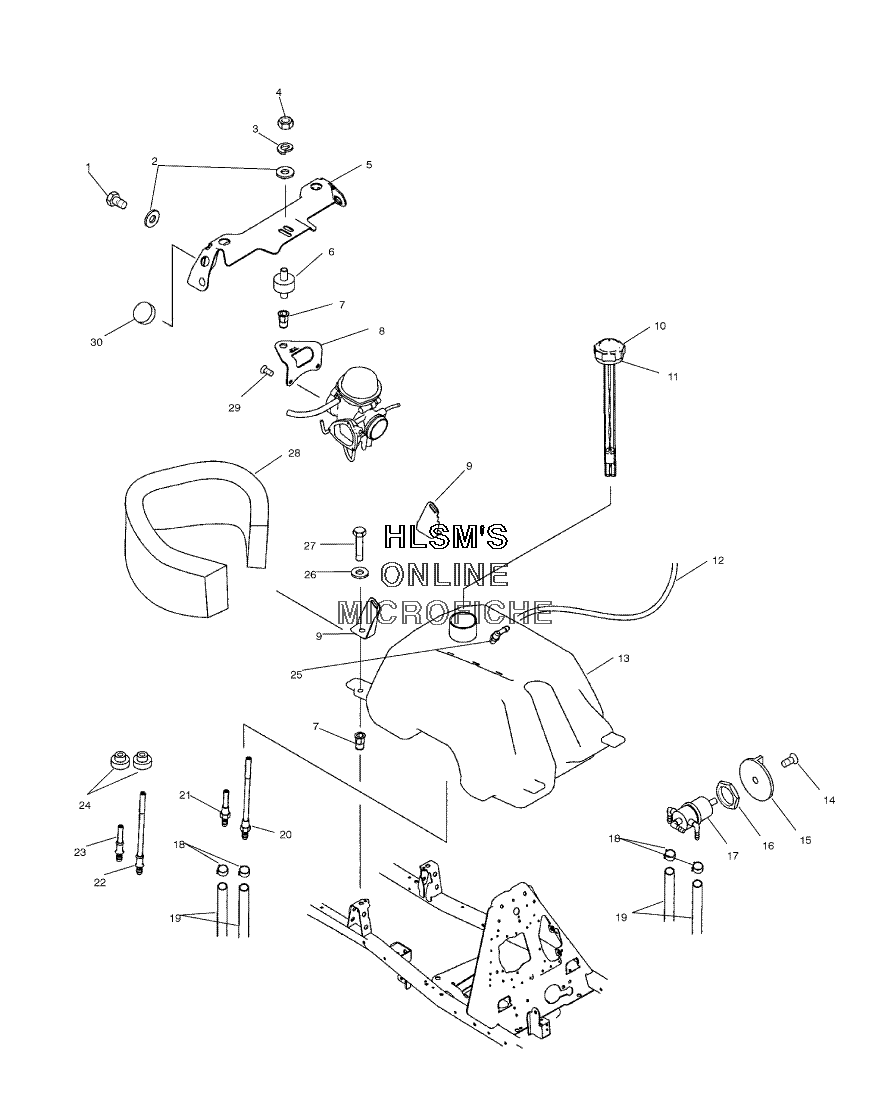

FUEL TANK AND CARBURETOR MOUNTING для Polaris ATP 500 4X4 (A04JD50CA) (CAMO GREEN MET.) (CANADA) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7512276 BOLT
    BOLT
  • 2
    7555859 WASHER FLAT
    WASHER FLAT
  • 3
    7552801 WASHER SPRING LOCK
    WASHER SPRING LOCK
  • 4
    7542105 NUT HEXAGON
    NUT HEXAGON
  • 5
    5245672-067 BRACKET CARB SUPPORT (BLACK)
    BRACKET CARB SUPPORT (BLACK)
  • 6
    3110050 MOUNT CARBURETOR
    MOUNT CARBURETOR
  • 7
    7547069 NUTSERT HEXAGON
    NUTSERT HEXAGON
  • 8
    5246945 MOUNT CARB
    MOUNT CARB
  • 9
    5222154 BRACKET FUEL COVER MOUNT PLATED (LEFT)
    BRACKET FUEL COVER MOUNT PLATED (LEFT)
  • 9
    5222155 BRACKET FUEL COVER MOUNT PLATED (RIGHT)
    BRACKET FUEL COVER MOUNT PLATED (RIGHT)
  • 10
    2873628 FUEL GAUGE
    FUEL GAUGE
  • 11
    5812123 GASKET
    GASKET
  • 12
    8360009-600 LINE FUEL (1/8 ID 600 CM)
    LINE FUEL (1/8 ID 600 CM)
  • 13
    2520143 FUEL TANK ASSY (INCL. 20, 21, 25) (IF BUILT BEFORE 3/01/03)
    FUEL TANK ASSY (INCL. 20, 21, 25) (IF BUILT BEFORE 3/01/03)
  • 13
    2520359 FUEL TANK ASSY (INCL. 20, 21, 25) (IF BUILT AFTER 3/01/03)
    FUEL TANK ASSY (INCL. 20, 21, 25) (IF BUILT AFTER 3/01/03)
  • 14
    7517505 SCREW
    SCREW
  • 15
    5432559 KNOB FUEL VALVE
    KNOB FUEL VALVE
  • 16
    5432733 NUT FUEL VALVE
    NUT FUEL VALVE
  • 17
    7052161 VALVE 3 WAY
    VALVE 3 WAY
  • 18
    7080003 CLAMP HOSE
    CLAMP HOSE
  • 19
    8450103 LINE FUEL (1/4 DP SAE)
    LINE FUEL (1/4 DP SAE)
  • 20
    7052150 FITTING FUEL OUT MAIN 4 Y (IF BUILT BEFORE 3/01/03) (FOR USE WITH 2520143)
    FITTING FUEL OUT MAIN 4 Y (IF BUILT BEFORE 3/01/03) (FOR USE WITH 2520143)
  • 21
    7052149 FITTING FUEL OUT RES. Z (IF BUILT BEFORE 3/01/03) (FOR USE WITH 2520143)
    FITTING FUEL OUT RES. Z (IF BUILT BEFORE 3/01/03) (FOR USE WITH 2520143)
  • 22
    7052347 FITTING FUEL OUTLET MAIN Y PR (IF BUILT AFTER 3/01/03) (FOR USE WITH 2520359)
    FITTING FUEL OUTLET MAIN Y PR (IF BUILT AFTER 3/01/03) (FOR USE WITH 2520359)
  • 23
    7052346 FITTING FUEL OUTLET RES Z PRS (IF BUILT AFTER 3/01/03) (FOR USE WITH 2520359)
    FITTING FUEL OUTLET RES Z PRS (IF BUILT AFTER 3/01/03) (FOR USE WITH 2520359)
  • 24
    7052362 GROMMET FLANGED (.36X.56X1.06) (IF BUILT AFTER 3/01/03) (FOR USE WITH 2520359)
    GROMMET FLANGED (.36X.56X1.06) (IF BUILT AFTER 3/01/03) (FOR USE WITH 2520359)
  • 25
    5431053 VENT TANK
    VENT TANK
  • 26
    7558301 WASHER FLAT
    WASHER FLAT
  • 27
    7512277 BOLT
    BOLT
  • 28
    5811942 FOAM SEAL
    FOAM SEAL
  • 29
    3084205 SCREW AND WASHER ASSY
    SCREW AND WASHER ASSY
  • 30
    5410414 BUMPER, RUBBER
    BUMPER, RUBBER
